Outdoor LED Floodlights: How to Choose the Ideal Spotlight for Gardens and Facades

Outdoor LED floodlights are the most efficient option for lighting facades, gardens, and access areas. Choosing correctly depends on four parameters: wattage, IP rating, beam angle, and colour temperature.

What outdoor LED floodlights are used for

Lighting facades and buildings

The outdoor LED facade spotlight highlights textures or architectural lines and provides night-time visibility on commercial buildings. Knowing how to light a facade with LED requires careful distance calculation: a poorly aimed floodlight wastes output and causes glare.

Lighting gardens, trees, and landscaping features

Using an LED floodlight to illuminate a tree requires a narrow beam that carries the light to the canopy without illuminating the ground. The recessed ground LED outdoor spotlight gives a clean finish at night; it requires recessed housings available in the outdoor spotlight and floodlight accessories catalogue.

Lighting car parks and access areas

Uniformity and durability are the priorities here. Die-cast aluminium housing material and a high IP rating are the most important parameters for this application.

Key technical specifications for making the right choice

IP protection rating: what IP65, IP66, and IP67 mean

IP65, IP66 water and dust protection covers most outdoor applications. An IP65 weatherproof outdoor LED floodlight is sufficient for standard garden and facade use. For connectors, use IP67 versions available in the outdoor spotlight and floodlight accessories range.

• IP65: water jets from any direction. Standard outdoor use.
• IP66: high-pressure jets. Heavy rain or hosing down.
• IP67: temporary submersion up to 1 metre. Ground-mounted floodlights or areas near water features.

Wattage based on distance and surface to be lit

Spotlight wattage based on the distance to be illuminated is the figure that generates the most uncertainty. Indicative reference:

The 50,000-hour outdoor luminaire service life is equivalent to more than 10 years without changing the light source.

Beam angle: concentrated vs wide beam

The narrow or wide beam angle defines how the light falls. A narrow beam of 10 to 25° concentrates the output on a single point; a wide beam of 60 to 120° illuminates large surfaces. The adjustable outdoor LED spotlight allows the direction to be set after installation.

Colour temperature outdoors: 3000K or 4000K

The 3000K warm outdoor LED floodlight is the most common in residential and hospitality settings. A 3000K outdoor colour temperature integrates well with gardens and stone facades. 4000K suits car parks or industrial facades better.

Types of outdoor LED floodlights available

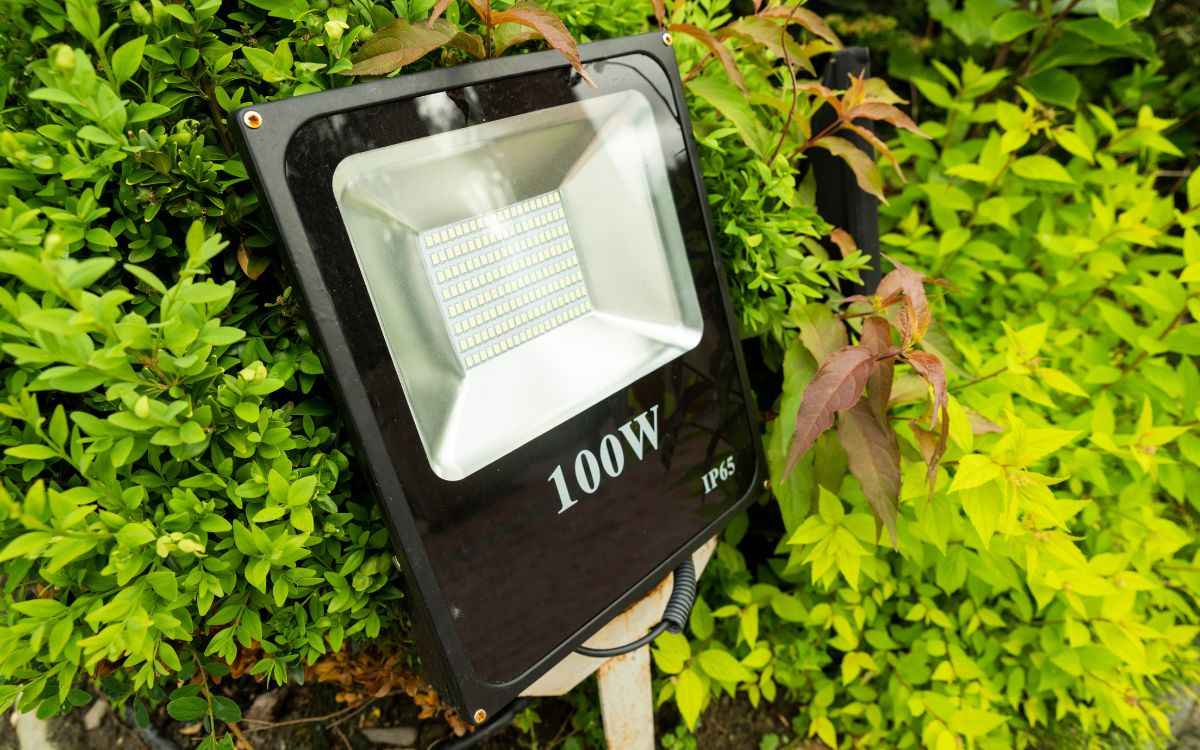

Compact floodlights from 10W to 100W for gardens

The typical outdoor garden LED floodlight price range starts at 10W. 30-50W covers medium-sized trees and residential facades. They feature anti-corrosion outdoor finish, a dusk-to-dawn sensor for automatic switching in many cases, and all carry CE RoHS outdoor certification.

High-output floodlights from 100W to 200W for facades and access areas

For multi-storey buildings or large car parks, the 50W, 100W, and 200W outdoor LED floodlight range is the right choice. The waterproof outdoor LED floodlight carries IP66 or above. For public spaces, the anti-vandal outdoor LED spotlight incorporates toughened glass and security fixings.

Installation and aiming of the floodlight

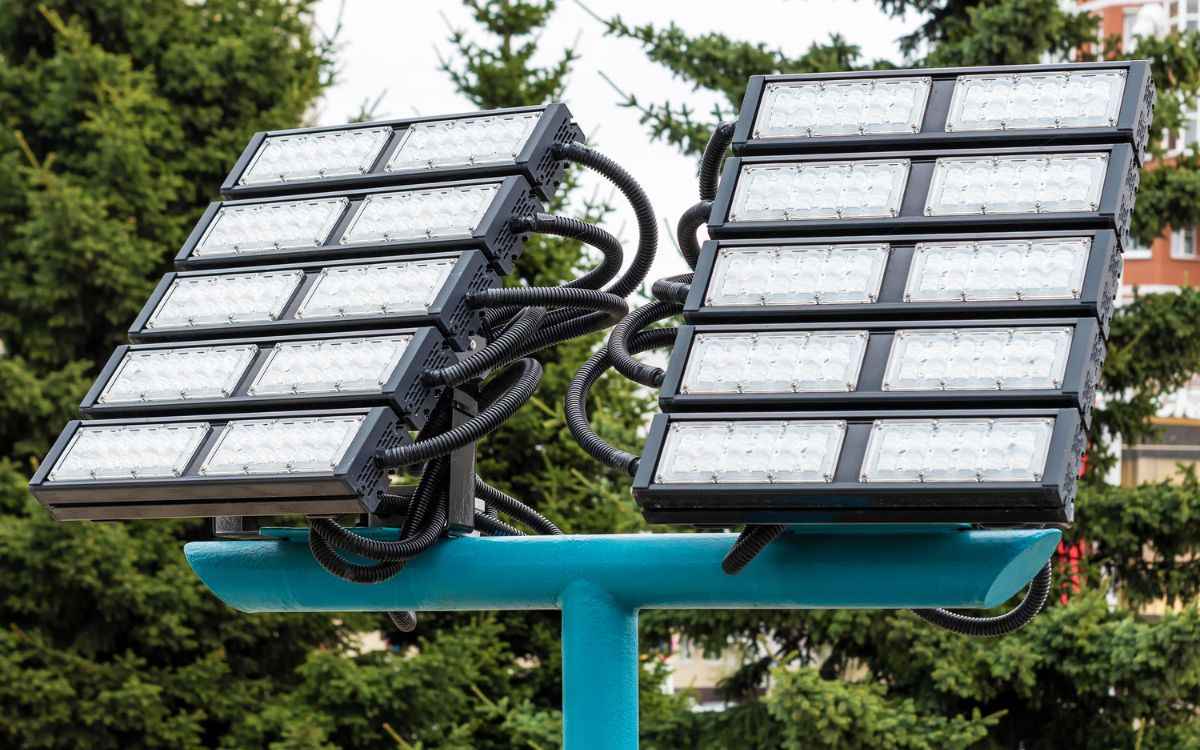

Wall, ground, and post mounting

Surface, ground, and post mounting largely determines which model to buy. Wall-mounted floodlights are the most common in residential installations: they are fixed directly to the facade with an articulated bracket. Post mounting is common in car parks and wide access areas where the light point needs to be raised to cover a larger surface.

Ground mounting requires specific IP67 housings. For this, the accessories catalogue includes recessed ground housings that allow the floodlight to be integrated at pavement level.

How to aim the spotlight to avoid glare

For facades, tilt the beam between 30° and 60° from vertical. For trees illuminated from the ground, aim at the centre of the canopy. For access areas, never aim the beam at eye level. The adjustable outdoor LED spotlight makes these adjustments straightforward without additional building work.

Featured models with Osram chip from the catalogue

The Osram chip outdoor LED floodlight backs up the 50,000-hour outdoor luminaire service life with documented depreciation curves. The Avant outdoor LED spotlight floodlight belongs to the Avant Pro range, available in the 50W, 100W, and 200W outdoor LED floodlight range. The dimmable outdoor LED floodlight adjusts the light level by schedule. The outdoor LED floodlight with sensor includes automatic dusk switching.

See the outdoor and garden LED floodlight catalogue or contact our technical team.

Frequently asked questions about outdoor LED floodlights

What wattage LED floodlight do I need to illuminate a facade?

For a residential facade at 6-10 metres, 50W is sufficient. For taller buildings or dark surfaces, 100-200W are needed.

What is the difference between IP65 and IP66 in an outdoor floodlight?

IP65 protects against water jets from any direction. IP66 adds resistance to high-pressure jets, recommended in areas with heavy rain or cleaning with a hose.

Can I use an outdoor LED floodlight in areas with rain and frost?

Yes. IP65 covers most installations. For more demanding conditions, IP66 or IP67 offer greater tolerance. Die-cast aluminium handles freeze-thaw cycles well.

What beam angle is best for illuminating a tree?

A narrow beam of 10 to 25° concentrates the light on the canopy. For trees with a wide canopy, a 30° to 40° angle gives a more uniform result.

Can outdoor LED floodlights be dimmed?

Some can. The dimmable outdoor LED floodlight adjusts the light level by schedule or via smart home systems. Check the data sheet for each reference.

How much does a 50W LED floodlight consume per year?

At 8 hours per day for 365 days, it consumes approximately 146 kWh. At £0.25 per kWh that is around £36 per year (illustrative example).

Can I install recessed LED floodlights in the garden floor?

Yes, with IP67 and specific recessed ground housings. You will find these in the outdoor spotlight and floodlight accessories catalogue.
