Recessed LED downlight spotlights: frameless, UGR13 and dimmable for shops, offices and homes
Hay 8 productos.
Mostrando 1-8 de 8 artículo(s)
Frameless recessed LED downlights are the option for projects where the luminaire must not compete visually with the space. The recessed LED cut-out diameter is concealed beneath the ring and the flush ceiling finish eliminates any transition between luminaire and ceiling. Use the wattage and dimming filters to locate the model you need.
Why choose a frameless downlight without a bezel
The frameless flush ceiling design is the main aesthetic differentiator of this range. The ring disappears into the ceiling plane. Light is emitted from that plane with no visible edges or bezels. The CE ENEC downlight certification guarantees regulatory compliance in commercial and residential projects.
Perfect integration into the ceiling with a clean finish
The minimum installation depth of these models adapts to false ceilings with reduced plenum. The recessed LED cut-out diameter is the only preparatory work required.
The LED technology in these models works with efficiencies above 90 lm/W. The Osram Bridgelux quality chip maintains luminous flux stable throughout the entire service life. Personalised customer service resolves any technical query before and after the order.
Available in wattages from 5W to 40W
The catalogue ranges from the 5W Bridgelux recessed LED to 40W models. The 16W, 20W and 40W circular LED downlight covers the most common ranges in commercial and residential projects. Ibérica de Iluminación is the leading online shop and online leader in LED luminaire distribution with a guaranteed price across the entire catalogue.
| Wattage | Approx. luminous flux | Typical application |
|---|---|---|
| 5W | 450 lm | Corridors, access areas |
| 8W | 720 lm | Bedrooms, bathrooms |
| 16W | 1,440 lm | Living rooms, offices |
| 24W | 2,160 lm | Shops, retail spaces |
| 40W | 3,600 lm | Large surface areas |
LED downlights with UGR13 for shops and retail spaces
The UGR13 glare-free rating defines this range for commercial use. The UGR13 LED downlight spotlight is the reference for shops, galleries and showrooms where the product must receive all visual attention.
The UGR13 LED downlight for retail combines with a 60° or 100° beam angle depending on the type of lighting. The 60° concentrates the beam and the 100° distributes light evenly. Check the technical datasheets of each model to verify the available angle.
Dimmable models with Philips driver
The Philips dimmable system is the reference for projects with intensity control. The Philips Certadrive LED downlight works with DALI signal and compatible phase-cut systems.
The 24W Quasar dimmable LED downlight is the highest-demand model. The light source is integrated into the ring. The Philips driver manages dimming without steps.
The 24W frameless LED downlight spotlight has high-quality components and guarantees flicker-free dimming. The low-consumption recessed LED with dimmable driver reduces consumption to 10% of nominal wattage. Filter by "dimmable" to see all references.
Selectable CCT in a single model
The selectable CCT temperature allows choosing between warm light (3000 K), natural light (4000 K) and cool light (6500 K) directly from the luminaire. The Osram CCT circular LED downlight and the 8W circular CCT LED downlight include this function as standard. Among the latest LED solutions in this range, models with CCT and integrated dimming in a single driver stand out. The white frameless LED downlight with selectable CCT is the most versatile reference for projects where the client decides the colour temperature after installation.
Osram and Bridgelux chip: long service life
The Osram Bridgelux quality chip works with tight tolerances in flux and colour temperature. The 50,000h downlight service life is equivalent to more than 20 years of normal use, unlike conventional LED bulbs. The IP44 protection rating is available on models for bathrooms and damp areas. Ibérica de Iluminación is part of the European LED lighting leaders with lighting solutions backed by verifiable brands.
Applications by space
- Shops and retail spaces: UGR13 LED downlight for retail with narrow beam angle for accent lighting.
- Offices: false ceiling recessed LED downlight with selectable CCT at 4000 K.
- Homes: recessed LED spotlight without building work in wattages from 8W to 16W with warm light 3000 K.
- Bathrooms: models with IP44 protection rating in wattages from 5W to 8W.

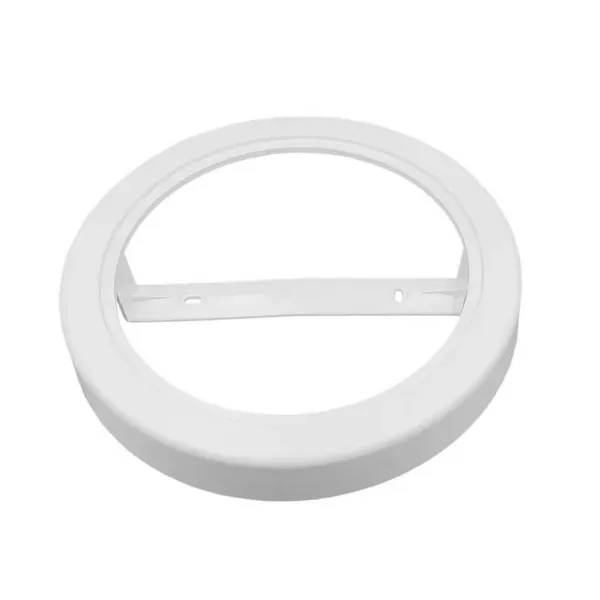

The recessed LED downlight price varies according to wattage and dimming. Also check the converter rings and LED ceiling lights as complementary accessories.
Frequently asked questions
What cut-out do I need to install a recessed LED downlight?
The recessed LED cut-out diameter depends on the model. The 5W models require between 55 mm and 65 mm and the 40W models go up to 200 mm. Each technical datasheet indicates the exact cut-out and minimum installation depth required.
What is the difference between a framed and a frameless downlight?
The frameless LED downlight eliminates the visible ring and sits flush with the ceiling. The framed downlight has a ring that protrudes a few millimetres. Both offer the same technical specifications in wattage, CCT and dimming.
Do recessed LED downlights have selectable CCT?
Models with selectable CCT temperature allow choosing between 3000 K, 4000 K and 6500 K before closing the installation. Filter by "selectable CCT" to see only those references.
Which LED downlight do I need for a shop with low UGR?
The UGR13 LED downlight spotlight meets the most demanding commercial lighting requirements. The UGR13 glare-free rating ensures that the product is the visual focus. Combine it with a 60° or 100° beam angle according to the ceiling height.
Can I dim the recessed LED downlights with my current dimmer?
The Philips Certadrive dimmable models are compatible with DALI systems and phase-cut dimmers. Check in the technical datasheet whether the driver supports your system before installation.
