120x60 and 120x30 LED panels: complete guide for offices and commercial spaces

120x60 LED panels are today the reference for upgrading lighting in offices, commercial spaces and workplaces. They replace fluorescent tubes with better efficiency, better visual comfort and control options that previously did not exist in this segment. This guide compares the two rectangular formats, explains their technical characteristics and helps choose the right model according to the space and type of lighting.

Differences between 120x60 and 120x30 LED panels

120x60 LED panels occupy a full suspended ceiling module and offer the highest luminous flux in the rectangular catalogue. 120x30 panels work in half a module and adapt better to narrow spaces or when a more distributed arrangement of light points is desired.

When to use each format according to the space

The 120x60 format is the standard option for open-plan offices, meeting rooms and large areas where coverage with fewer units is a priority. The 120x30 office LED panel fits corridors, narrow reception areas and zones where the ceiling imposes width restrictions. In commercial spaces with product display runs, the long format reinforces visual directionality without overcrowding the ceiling with luminaires.

Power and luminous flux comparison

The 120x60 vs 60x60 LED panel goes beyond size. The rectangular format covers twice the surface area with a single unit, reduces the number of connections and simplifies installation. The rectangular panel lm/W efficiency of current models exceeds that of equivalent square panels in most cases.

Key technical characteristics

Philips CertaDrive driver: quality and warranty

The dimmable Philips CertaDrive driver is the component that most determines the service life and performance of an LED panel. Philips manufactures drivers with tight tolerances, surge protection and a very low failure rate under continuous use conditions. For B2B projects where maintenance has a cost, that difference is decisive.

The ENEC CE panel certification confirms that the assembly meets the safety and electromagnetic compatibility requirements of the European market. Models with this component are of proven high quality and offer stable lighting throughout their entire service life.

UGR17 for demanding workspaces

UGR17 visual comfort at work is the unified glare rating required by European regulations for workstations with screens. A 120x60 UGR17 LED panel limits the direct glare perceived by the eye from any viewing angle commonly found in an office.

LED lights without glare control accumulate eye fatigue during long working days. The spatial luminous uniformity produced by a panel with a UGR below 19 eliminates that problem. It is the parameter that most distinguishes a professional-grade recessed rectangular luminaire from a domestic one.

DALI and 1-10V dimming for advanced control

The dimmable DALI 120x60 LED panel allows integration into centralised lighting management systems. DALI assigns an individual address to each luminaire: scenes can be created, schedules programmed and levels adjusted by zone from a single controller. 1-10V dimming is the simpler alternative for installations without a data bus. Both options are lighting solutions that reduce consumption according to actual space occupancy, providing efficient lighting and measurable energy savings.

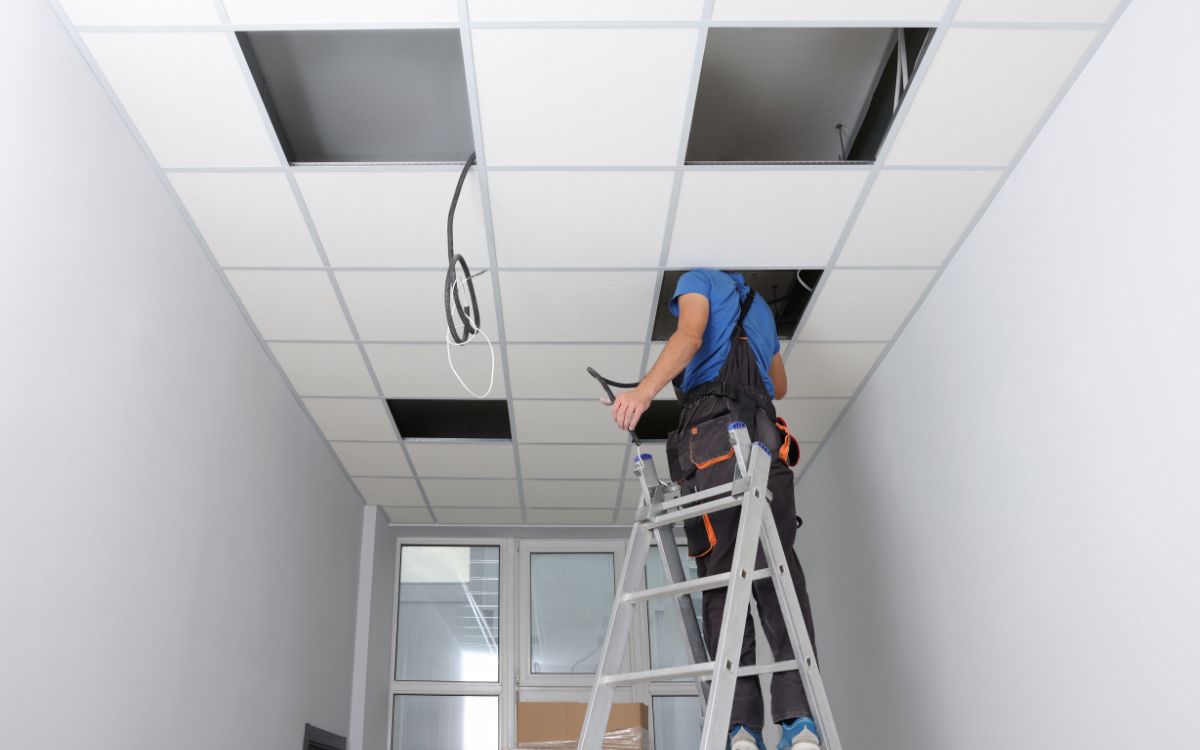

Installation options

Recessed in suspended ceiling

The 120x60 LED panel for suspended ceiling is the most common installation in offices and commercial spaces with DIN rail. The DIN rail suspended ceiling installation requires a gap of at least 30 mm above the panel to house the driver and cables. It is the cleanest option visually: the frame sits flush with the ceiling and the panel emits uniform downward light without protruding elements. The 120x60 fluorescent replacement fits into the existing aperture, making the upgrade a quick operation with no additional building work.

Surface kit for ceilings without rails

The rectangular panel surface kit allows the 120x60 LED panel to be surface-mounted on any flat ceiling without the need for a suspended ceiling or rail. It is the solution for industrial warehouses, workshops and offices with exposed ceilings. See panel accessories at Ibérica de Iluminación.

Pendant suspension for open spaces

In spaces with high ceilings, the panel is suspended using steel cables with adjustable tensioners. This option brings the light source closer to the working plane and improves light uniformity without increasing installed power. It is common in showrooms and double-height offices where recessed installation does not effectively illuminate the useful plane.

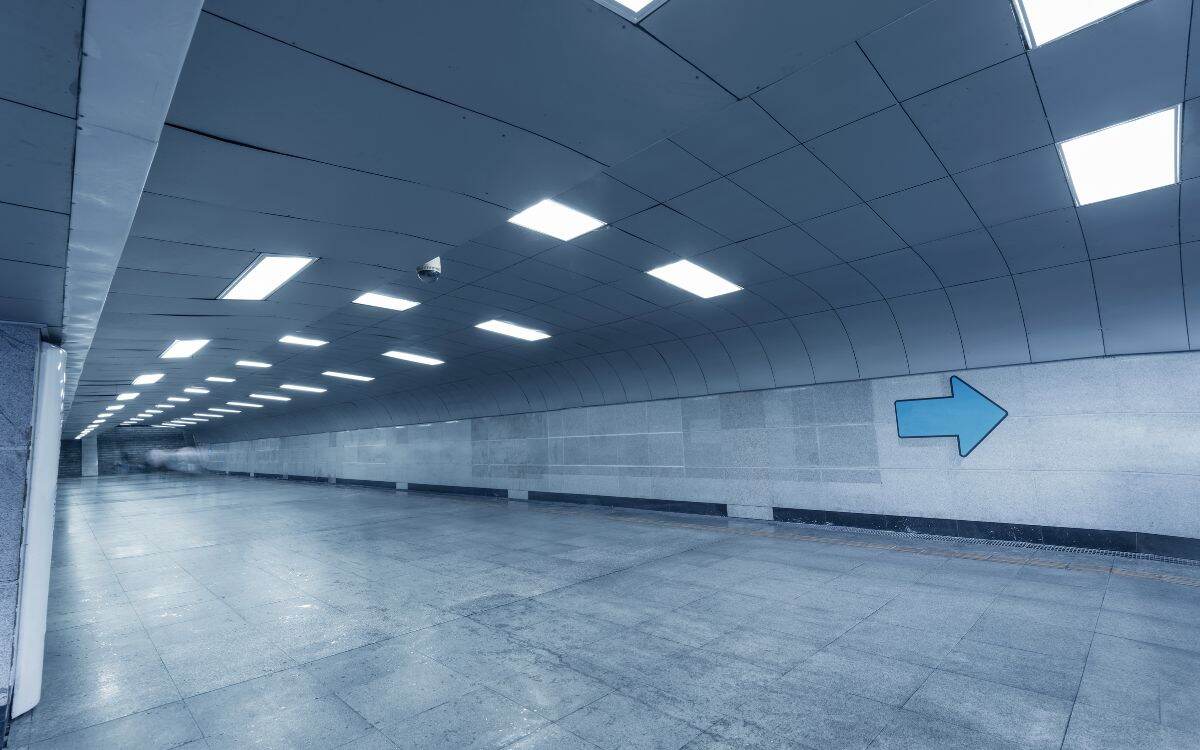

Applications by type of space

Offices and meeting rooms

A continuous-use office requires neutral white 4000K to maintain attention and reduce drowsiness. The colour of the light directly influences the perception of the space and the performance of the people working in it. The neutral 4000K colour temperature reproduces the colours of documents and screens well, with a colour rendering index CRI above 80. The 80W Philips 120x60 LED panel covers an area of approximately 9-12 m² per unit at a standard ceiling height of 2.8-3 m.

Long corridors and circulation areas

The 120x30 LED panel for corridors distributes light more evenly than a square panel. The low-consumption 120x30 LED panel with dimmable driver allows the lighting level to be reduced outside active hours without switching off the installation. The 120x30 44W CertaDrive LED panel is the reference model for this type of application.

Commercial spaces and large retail areas

In commercial spaces, the rectangular commercial LED panel works over the product and not only over the circulation plane. Warm white 3000K favours textiles, food and hospitality, while neutral white 4000K is more suitable for electronics and hardware.

The CCT-selectable 120x60 LED panel accepts 3000K, 4000K and 5000K. The installer selects the temperature directly on the driver, without managing different product references. The 120x60 LED panel pack facilitates procurement for large-scale projects.

Catalogue model comparison and prices

Check updated prices on LED panels at Ibérica de Iluminación.

The 120x60 LED panel price varies according to the driver and dimming option. The 120x60 slim frame LED panel is the lowest-cost model per unit and the most common when dimming is not required. Models with a dimmable Philips CertaDrive driver have a higher price that is justified in intensive-use installations.

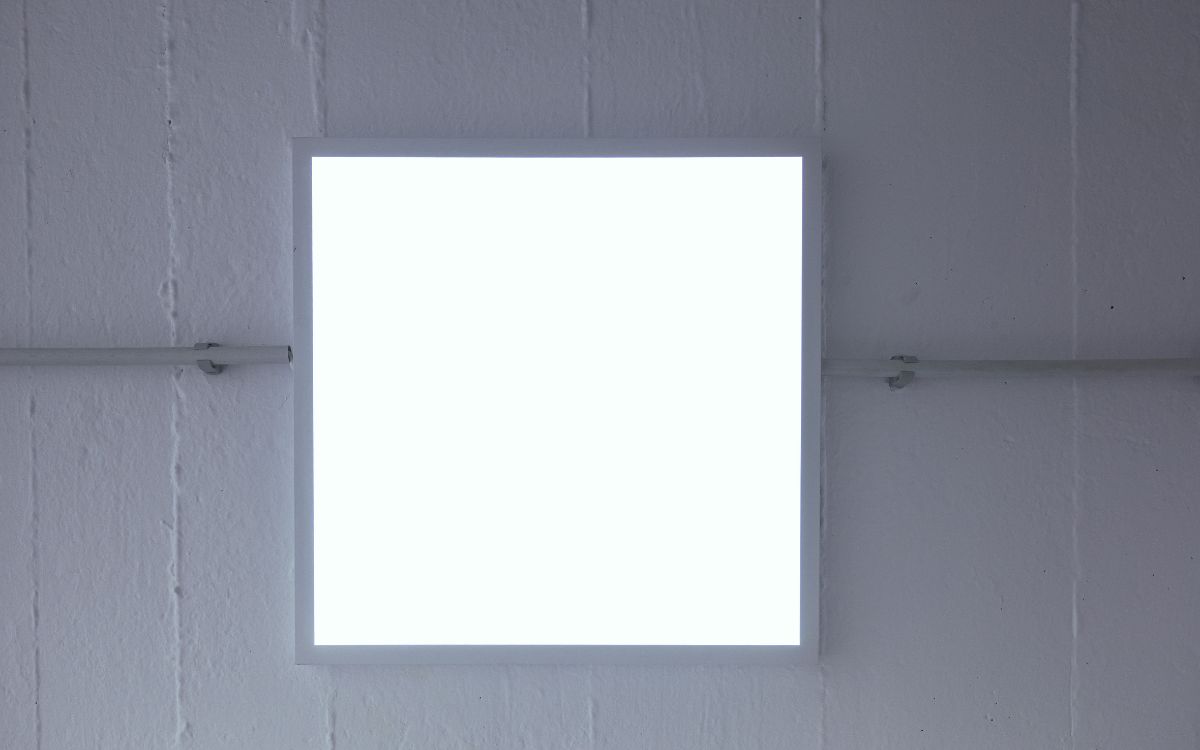

How to calculate how many panels I need

The calculation starts from three figures: the floor area, the ceiling height and the target illuminance level in lux. For a standard office, the UNE-EN 12464-1 standard sets 500 lux at the working plane. The 80W Philips 120x60 LED panel emits approximately 8,000 lumens. With a utilisation factor of 0.6 and a ceiling at 2.8 m, each unit covers approximately 9 m².

For corridors with the 120x30 LED panel for corridors, the target illuminance drops to 100-200 lux. The most commonly used practical rule is to divide the total lumens required by the luminous flux of each panel. A correction factor of 0.8 is applied for losses and ageing and the result is rounded up to the next whole number.

At Ibérica de Iluminación you will find the complete LED panel catalogue and panel accessories for any type of installation.

Frequently asked questions

What is the difference between a 120x60 and a 60x60 LED panel?

The 120x60 vs 60x60 LED panel covers twice the surface area with a single unit and offers greater luminous flux. The 60x60 fits better in small spaces or when the ceiling module is square.

What power does a 120x60 LED panel need for an office?

To achieve 500 lux at 2.8 m height, an 80W Philips 120x60 LED panel covers approximately 9-12 m² per unit. With DALI dimming the level is adjusted according to available natural light.

What does UGR17 mean in a rectangular LED panel?

UGR17 visual comfort at work indicates that the glare rating is equal to or below 17. Below 19, the regulations for workstations with screens are met.

Can I install a 120x60 panel on a surface without a suspended ceiling?

Yes. With the rectangular panel surface kit the panel is mounted on any flat ceiling. The surface-mounted 120x60 LED panel with this accessory is the standard solution in warehouses and premises with exposed ceilings.

Does the Philips CertaDrive driver improve the panel's service life?

Yes. The dimmable Philips CertaDrive driver operates with tight tolerances and surge protection, which reduces the failure rate under continuous use.

Can 120x60 LED panels be dimmed?

Yes. The dimmable DALI 120x60 LED panel allows data bus control with individual addressing. Models with 1-10V are dimmed with a simple analogue signal.

Which format is better for lighting long corridors?

The 120x30 LED panel for corridors. Its elongated format distributes light more evenly and takes up less width on the ceiling. The low-consumption 120x30 LED panel with dimming is the most efficient option for circulation areas with intermittent use.
