LED strips 220V AC: how to install them without a transformer and get the most out of them

220V AC LED strips connect directly to the mains without needing any external transformer. This considerably changes the installation process compared to 12V or 24V models, and opens up possibilities for projects where the length or location would make a conventional power supply difficult or expensive.

If you're looking for information on how to install a 220V LED strip, what models are available or what the recommended maximum length is, you'll find the answer to all of that in this article.

What are 220V LED strips and how do they differ from 12V or 24V ones?

The difference between 12V, 24V and 220V LED strips lies in the working voltage and how they're powered. Low-voltage ones (12V or 24V) run on direct current and need a power supply to convert the domestic current. 220V AC LED strips operate directly on alternating current, the same that comes out of a socket. No power box, no conversion loss, no additional cable between the supply and the strip.

The most visible practical difference is in the length. A 12V strip starts losing brightness after 5 metres if it's not fed from both ends. A 220V strip can cover 20 consecutive metres with stable voltage from start to finish, since the circuit is designed to work at high voltage from the outset.

Advantages of working directly with alternating current

• No transformer: connects directly to a socket or consumer unit, which reduces cost and simplifies installation.
• Greater lengths without voltage drop: up to 20-25 metres per run depending on the model.
• Fewer points of failure: by eliminating the power supply, the component that concentrates the most faults in conventional installations is also eliminated.
• Lower overall cost in longer installations: no need to size or buy drivers.

Limitations to bear in mind

Working at 220V means working at mains voltage. That has direct consequences for installation and maintenance.

The first: they can't be cut at any point. The custom cut every 10cm is marked on the strip with a line and some solder pads, and can only be cut there. Cutting outside those points renders the segment unusable.

The second: flicker. 220V strips without regulation use simple rectification and can present more visible flicker than low-voltage ones. Models with an internal driver or with triac LED dimmer regulation minimise this effect.

The third: handling requires more caution. Before touching any connection, the supply must be cut at the consumer unit or the strip unplugged. It's no greater a risk than any domestic electrical installation, but it does require respect.

Types of 220V LED strips available

Standard SMD2835, the most versatile

The SMD2835 surface-mount LED chip is the most common in 220V strips. It offers good luminous efficiency, variable colour temperature and a slim profile that fits well under furniture, in skirting boards or in trunking. The 220V SMD2835 indoor/outdoor LED strip is available in IP20 for dry use, IP65 with silicone and IP67 for submerged installation or outdoor use in rain.

The reference price for an 8W/m 220V LED strip is around €3-6 per metre, depending on chip density and protection rating. Connection accessories and, where applicable, the aluminium profile should be added to that price.

COB 220V flip chip, continuous light without hotspots

The COB 220V flip chip LED strip mounts the chips without wire bonding, directly onto the strip. The result is a continuous line of light without the individual dots visible on conventional SMD strips. This makes it particularly suitable for accent lighting, coves and any application where the strip remains on show.

IP65 for damp indoor use vs IP67 for outdoor use

The IP65/IP67 protection rating determines where each model can be installed.

The IP65 220V AC outdoor LED strip withstands rain and condensation without issue. The IP67 220V submersible LED strip can remain underwater down to 1 metre depth. This makes it suitable for ponds, decorative fountains or floor installations at risk of flooding.

How to install a 220V LED strip step by step

Tools and materials needed

• Scissors or a craft knife (only for cutting at the marked points)
• Splice connectors for 220V strips (not compatible with 12V/24V ones)
• Cable ties or fixing clips, or an aluminium profile
• Double-sided adhesive tape (included with most models)
• Schuko plug male/female or cable with plug, depending on the type of connection chosen

How to connect the strip directly to a socket or consumer unit

This is the main advantage of a direct mains connection: no intermediaries. The process for connecting a 220V LED strip to a socket is as follows:

1. Plan the route and measure the total length.
2. Cut at the marked points to adjust the measurement. The 220V LED strip with cuts every 10cm makes it easy to adapt the run to the exact measurement without wasting material.
3. If the model has a connection cable already fitted, plug it straight in. If not, solder or connect a cable with a Schuko plug, observing the indicated polarity.
4. Fix the strip to the surface with the rear adhesive tape or with clips.
5. Plug in and check operation before fixing permanently.

For installations connected to the consumer unit (without a socket), it's advisable to have an electrician carry out or supervise the terminal connection if you don't have experience.

How to cut and join 220V LED strips

The cut always goes on the marked lines, which on standard models appear every 10 centimetres. Cutting outside those marks damages the internal circuit and renders the run unusable.

To join two strips, use connectors specific to 220V that maintain the insulation necessary to work at mains voltage. Low-voltage connectors must not be used: the conductor cross-section and insulation are different.

Maximum length and voltage drop

The 220V LED strip without a transformer solves the length problem that low-voltage models have. The maximum length without voltage drop depends on the specific model, but as a rough guide:

At Ibérica de Iluminación the 20-metre 220V LED strip pack is available, covering the standard maximum length in a single reel without intermediate joins.

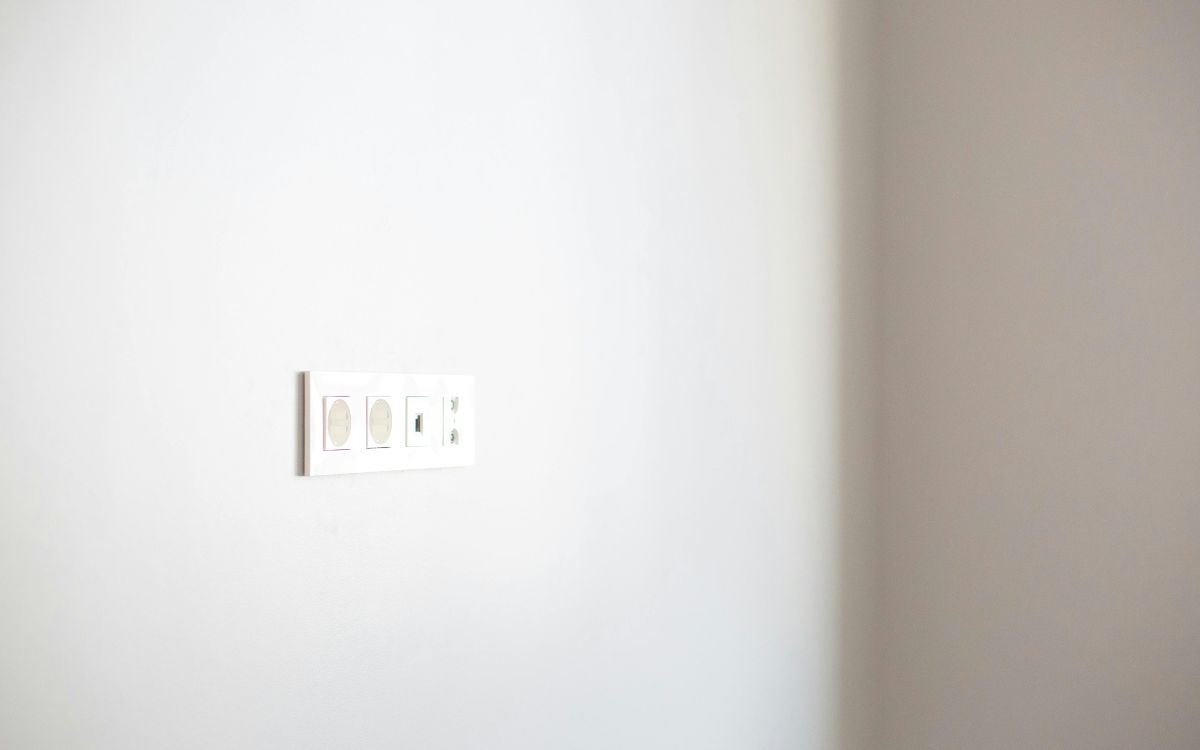

Regulation: what dimmers are compatible with 220V

Regulating a dimmable 220V LED strip requires a dimmer specific to 220V AC, not a low-voltage regulator. The most common are triac LED dimmer type, which work by cutting part of the alternating voltage wave to reduce brightness.

You need to check that the strip model is dimmable: not all of them are. Those with a dimmable internal driver are compatible with standard triac dimmers (the same ones used for conventional dimmable LED lamps). Those without an internal driver may not support dimming or may flicker when dimmed.

The accessories catalogue includes dimmers compatible with 220V LED strips that can be connected in the supply line without modifying the consumer unit.

Most common applications

Staircase and skirting board lighting

The 220V LED strip for outdoor staircases is one of the most requested applications. Not needing a transformer, installation on an outdoor staircase is much neater. A supply cable is run from the consumer unit or from an outdoor socket and the strip is fixed to the skirting board or under each step.

LED strip use on staircase facades accepts IP65 models if the space is sheltered from rain, or IP67 if the strip may get wet. For installations on indoor staircases in dry conditions, the IP20 model is sufficient.

Facade and garden lighting

Outdoor architectural lighting is one of the most common uses of 220V strips. On facades, the absence of an external transformer eliminates a weak point against moisture and simplifies maintenance.

For this type of application IP67 is recommended with the full exterior strip silicone protection, plus an aluminium profile to protect the strip from impact and help with heat dissipation.

Linear lighting in commercial premises

In commercial spaces, the 220V LED strip is used for product shelf lighting, under counters and in perimeter coves. The length it allows to reach without voltage drop is an advantage when 15 or 20 metres of shelving need to be covered. The 220V LED strip available in fixed colour temperature or CCT allows the light to be adapted to the type of product on display.

Aluminium profiles for 220V strips

The aluminium heat dissipation profile is not compulsory in every installation, but on surfaces that can accumulate heat it is worth fitting. The aluminium conducts the heat generated by the chips and dissipates it through the outer surface of the profile. This extends the useful life of the strip.

Outdoors, the profile also protects against mechanical impact and makes it easier to fix to uneven surfaces. The Ibérica de Iluminación aluminium profile catalogue includes recessed, surface-mount and corner models, compatible with strips up to 12mm wide.

View LED aluminium profile catalogue

Frequently asked questions about 220V AC LED Strips

Can I connect a 220V LED strip directly to a socket?

Yes. Models with an integrated connection cable plug directly into a standard Schuko socket. Those without a cable need one fitted with the appropriate connectors for 220V.

How many metres of 220V LED strip can I run in a row?

It depends on the model, but generally between 20 and 25 metres for 8 W/m models. Beyond that length a new run must be started from an independent feed point.

What's the difference between IP65 and IP67 in LED strips?

IP65 protects against water spray (rain, splashes). IP67 allows temporary immersion down to 1 metre. For outdoors with direct rain, IP65 is sufficient. For floor installations at risk of flooding or in water features, IP67 is needed.

Can 220V LED strips be dimmed?

Dimmable models are compatible with triac dimmers for 220V AC. You need to check in the model's specifications that it supports dimming before buying the dimmer.

Are 220V LED strips suitable for outdoor use?

Yes, as long as the model has the appropriate protection rating (IP65 minimum for sheltered outdoor use, IP67 for direct rain or areas prone to flooding).

How do you cut a 220V LED strip?

Only along the cut lines marked on the strip, which appear every 10 centimetres. Cutting outside those points damages the circuit and renders the segment unusable.

Do I need an aluminium profile for a 220V LED strip outdoors?

It's not essential, but it is recommended. The profile protects the strip from impact, makes fixing easier and helps dissipate heat, which extends its useful life.
