LED Strip 24V 238 LED/m 20W/m SMD2835 IP20

The 24V 20W/m 238-LED Strip is a very high-power 5-metre low-voltage LED strip with a very high density of 238 LEDs per metre and selectable colour temperature, ideal for powerful continuous linear lighting in demanding projects.

General information about 24V 20W/m 238-LED Strip

Drawing 20W per metre, it delivers 2800 lumens per metre (up to 14,000 lm over the 5 m) and a 120 lm/W efficacy, with 238 LED/m SMD2835, a CRI of 80 and a 120° beam. Its high density achieves continuous light with almost no dots. It runs at 24V DC and has selectable tones: 2200K, 2700K, 4000K and 6000K.

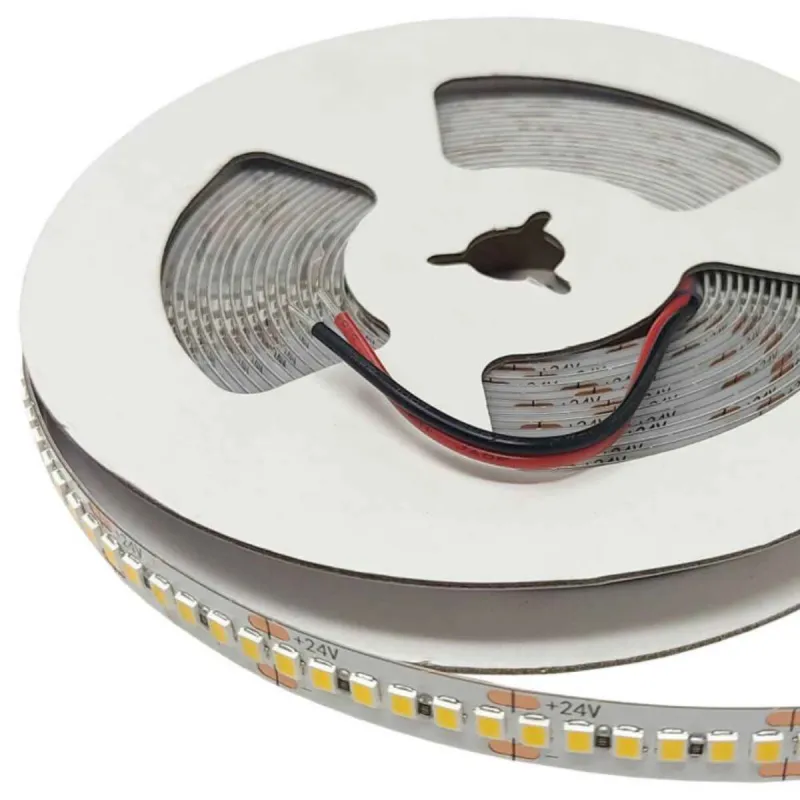

It comes in a 5 m × 10 mm roll, with a PCB base and cut points every 2.5 cm.

Use and application of 24V 20W/m 238-LED Strip

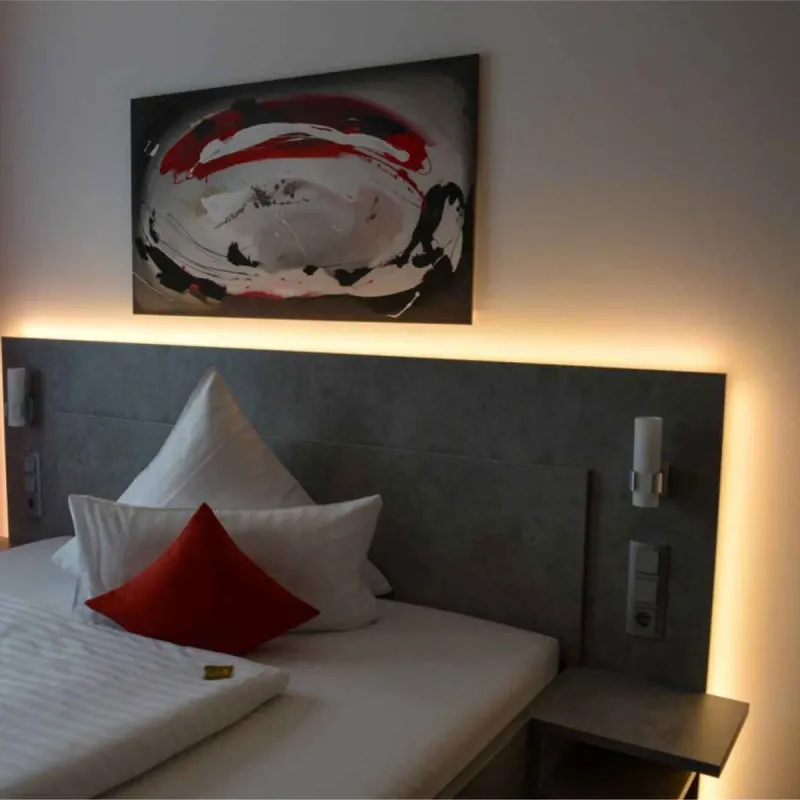

It is ideal for powerful linear lighting in profiles, false ceilings, window displays, counters and projects needing plenty of light with an even line and no dot effect.

Its high power makes it perfect for main lighting in diffuser profiles.

Key benefits of 24V 20W/m 238-LED Strip

• 2800 lm/m with 20W/m (120 lm/W).
• Very high density: 238 LED/m, continuous light.
• Selectable tone 2200K / 2700K / 4000K / 6000K.
• 24V DC, cut every 2.5 cm.
• 5-metre roll, CRI 80.
• 100,000-hour service life and a 3-year warranty.

Featured specifications of 24V 20W/m 238-LED Strip

Voltage: 24V DC; Draw: 20W/m; Flux: 2800 lm/m (up to 14,000 lm over 5 m); Efficacy: 120 lm/W; LEDs: 238 LED/m SMD2835; CRI: 80; Colour temperature: 2200K / 2700K / 4000K / 6000K; Angle: 120°; Protection: IP20; Material: PCB; Service life: 100,000 h; Length: 5 m × 10 mm roll; Cut: every 2.5 cm; Certifications: CE and RoHS; Warranty: 3 years.

Installation and maintenance of 24V 20W/m 238-LED Strip

Fix the strip with its adhesive or profile and connect it to a 24V power supply of sufficient capacity, respecting the cut points and electrical regulations. Always switch off the power before any work.

It needs no maintenance beyond an occasional clean. Specialised LED lighting distribution in Spain, with CE and RoHS certification and a professional 3-year warranty. Estimated delivery in 24h subject to stock availability. Check price and availability here.

Frequently asked questions about 24V 20W/m 238-LED Strip

How much light does it give? — 2800 lm/m, up to 14,000 lm over 5 m (120 lm/W).

Does it need a power supply? — Yes, a 24V supply of suitable capacity.

Where can it be cut? — Every 2.5 cm.

What tones are available? — 2200K, 2700K, 4000K and 6000K.

What warranty does it carry? — 3 years.
