Waterproof LED Batten COREPLUS EVO 60cm 12-20W 3CCT Emergency Radar Sensor

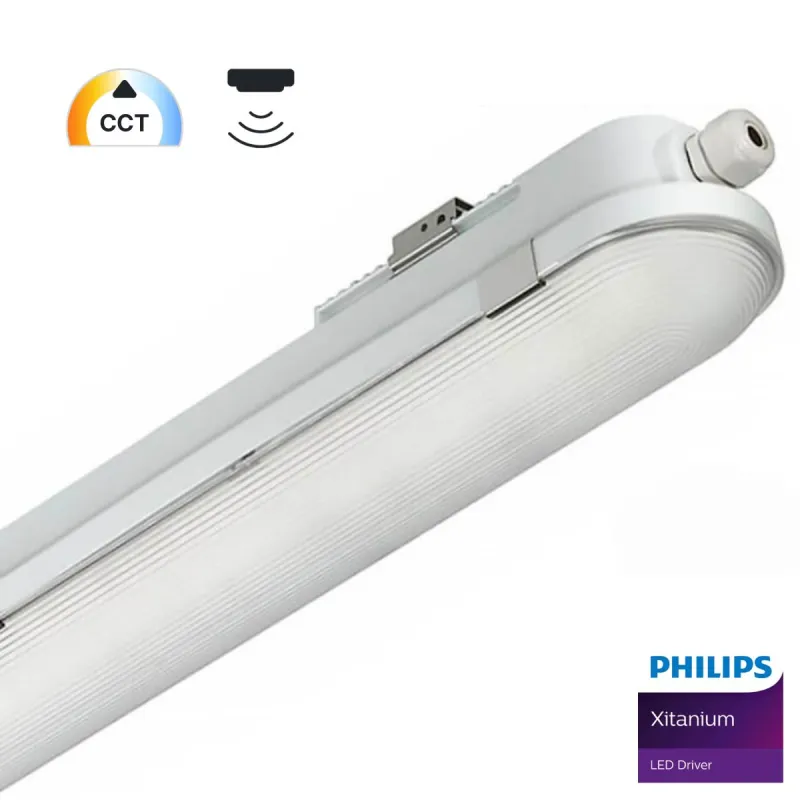

The COREPLUS EVO 60cm Emergency + Sensor Batten combines the efficiency of the Philips Xitanium driver with a built-in emergency kit and a Plug & Play radar motion sensor. A professional solution for garages, halls, car parks, workshops and passageways needing reliable light and service continuity during a power cut.

General information about COREPLUS EVO 60cm Emergency + Sensor Batten

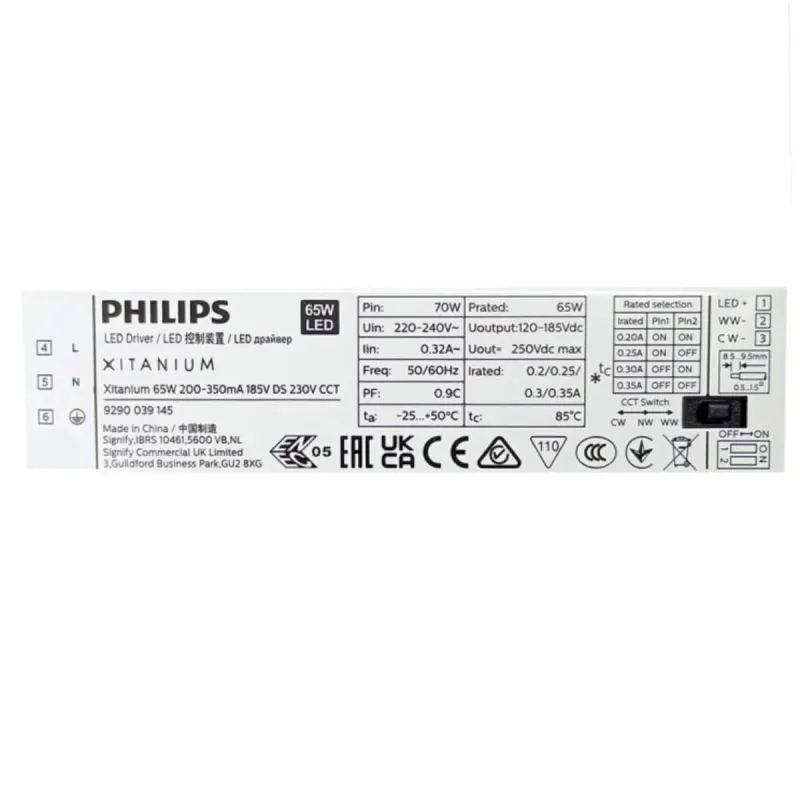

It fits SMD2835 diodes with 140 lm/W efficiency and a power factor above 0.9. Its Philips Xitanium driver ensures stable operation and long life, reducing the installation's consumption.

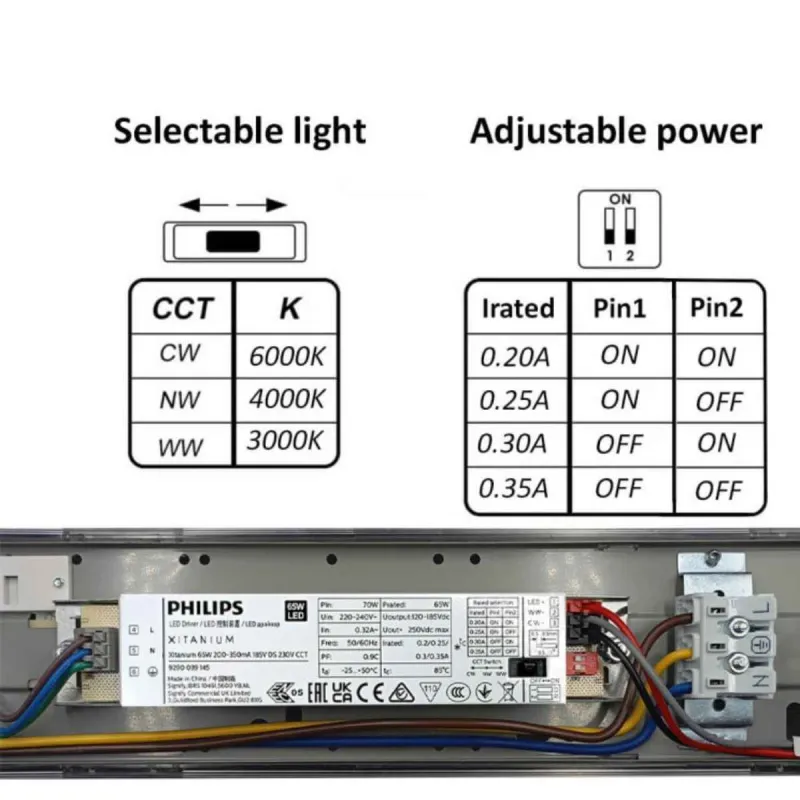

Thanks to the multi-selectable system it sets the power between 12W, 15W, 18W and 20W and the colour temperature at 3000K, 4000K or 6000K.

Use and application of COREPLUS EVO 60cm Emergency + Sensor Batten

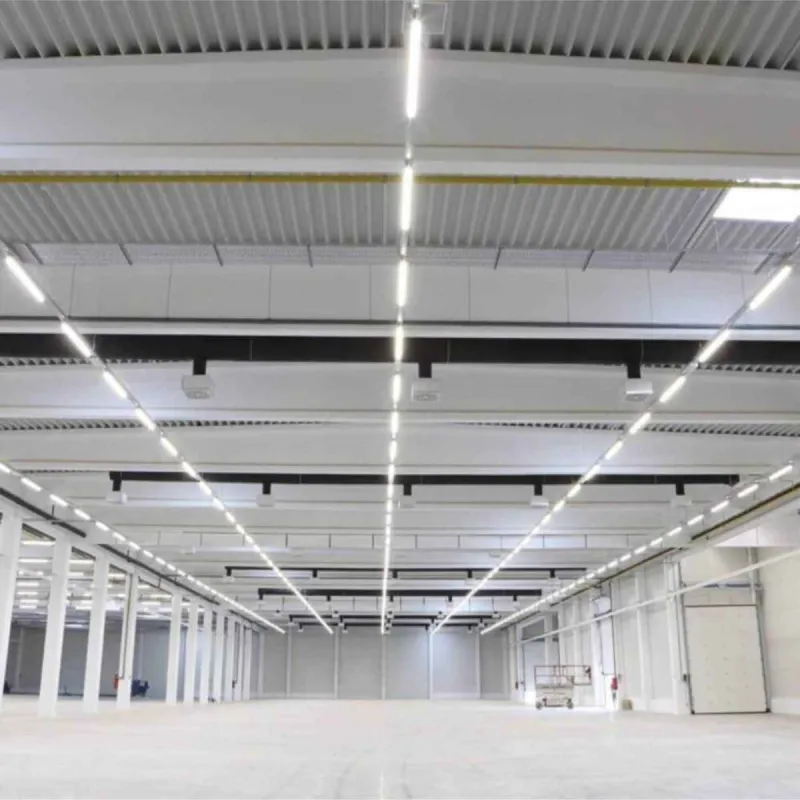

It is ideal for garages, industrial halls, car parks, workshops, warehouses and passageways requiring service continuity.

The 3W emergency kit provides up to 3 hours of autonomy, keeping lighting in evacuation areas. The Plug & Play radar motion sensor switches the luminaire on only when needed, optimising consumption in corridors, stairs and storerooms.

Key benefits of COREPLUS EVO 60cm Emergency + Sensor Batten

• 3W emergency kit, up to 3h autonomy.
• Plug & Play radar motion sensor.
• Multi-selectable power 12W / 15W / 18W / 20W.
• 3CCT: 3000K / 4000K / 6000K.
• SMD2835, 140 lm/W, PF above 0.9, Philips Xitanium driver.

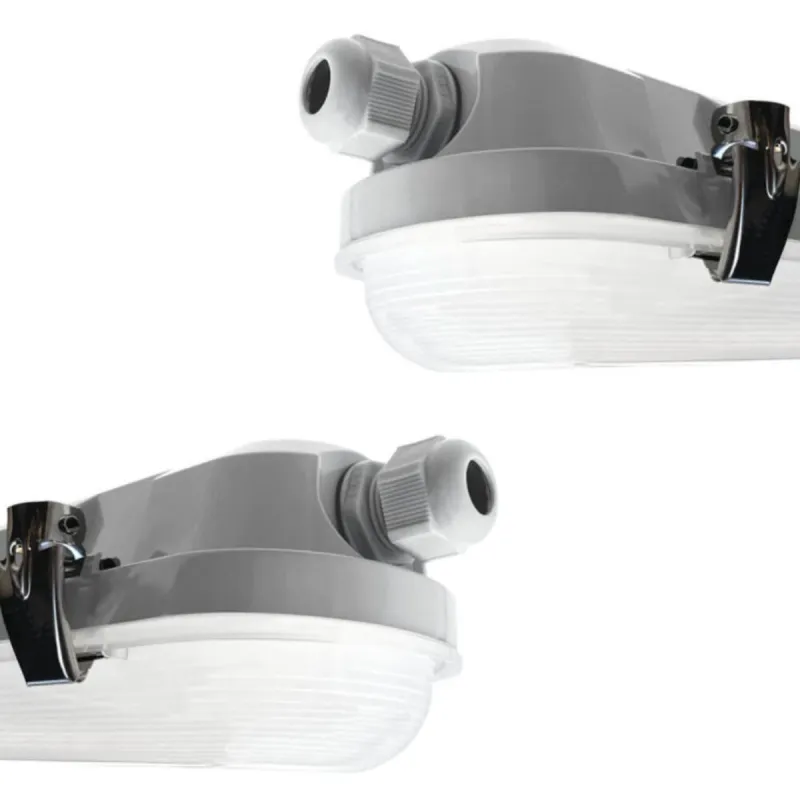

• IP66 and IK10, through-wiring at both ends.

Featured specifications of COREPLUS EVO 60cm Emergency + Sensor Batten

Length: 60 cm; Power: multi-selectable 12W / 15W / 18W / 20W; Colour temperature: 3000K / 4000K / 6000K; Chip: SMD2835; Efficacy: 140 lm/W; Power factor: above 0.9; Driver: Philips Xitanium; Emergency: 3W kit (up to 3h); Sensor: Plug & Play radar motion; Protection: IP66 and IK10; Extras: through-wiring.

Installation and maintenance of COREPLUS EVO 60cm Emergency + Sensor Batten

Select the power and tone, fix the batten using its brackets and connect it in line with electrical regulations; the through-wiring allows series installations. Always switch off the power before any work.

Maintenance is minimal thanks to the tightness and the Philips driver. Specialised LED lighting distribution in Spain with professional warranty. Estimated delivery in 24h subject to stock availability. Check price and availability here.

Frequently asked questions about COREPLUS EVO 60cm Emergency + Sensor Batten

How long is the emergency autonomy? — 3W kit, up to 3 hours.

Does it have a sensor? — Yes, Plug & Play radar motion.

What powers does it have? — Multi-selectable 12W, 15W, 18W and 20W.

What protection does it offer? — IP66 and IK10.

Can it be installed in series? — Yes, through-wiring at both ends.
