Square Slim LED Panel 8W 105mm UGR19 OSRAM Chip

The 8W Square Slim LED Plate is an ultra-thin recessed luminaire with an OSRAM DURIS E 2835 chip, ideal for lighting bathrooms, hallways and small rooms with a uniform, low-consumption light.

General information about 8W Square Slim LED Plate

With 8W it delivers 880 lumens and a 110 lm/W efficacy, using an OSRAM DURIS E 2835 chip, a CRI of 80 and low UGR19 glare. It is available in 3000K, 4000K and 6000K and includes a driver.

Its diffuser spreads the light over a 120° angle and it runs on 85-265V. The aluminium body with opal diffuser keeps an ultra-thin profile.

Use and application of 8W Square Slim LED Plate

It is ideal for bathrooms, hallways, bedrooms, kitchens, offices, shops and hotels, replacing old halogen spots with a uniform LED light.

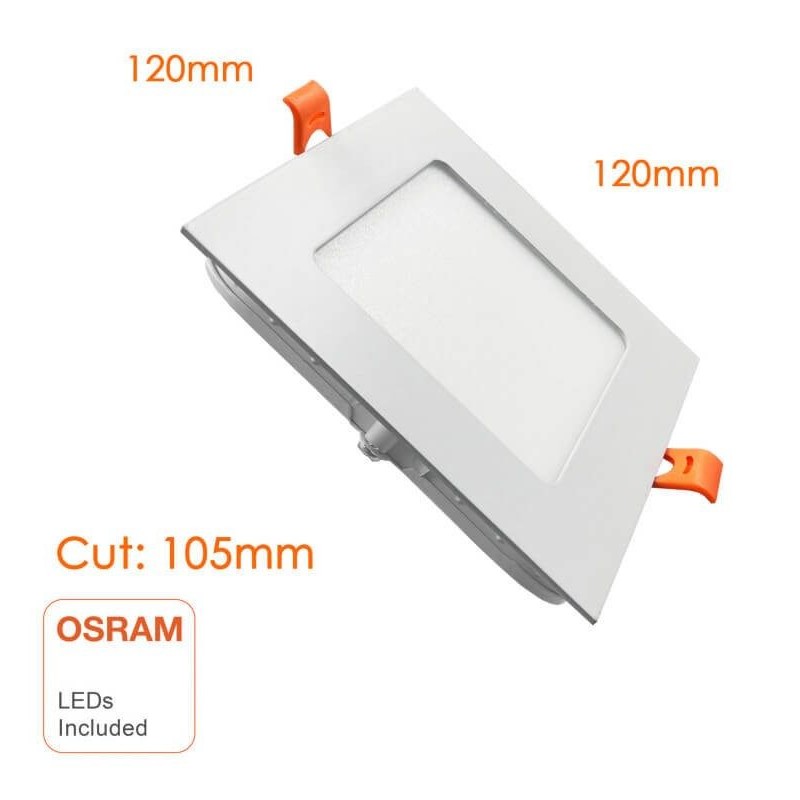

It recesses into a false ceiling with a 105 mm cut-out, integrating discreetly thanks to its shallow depth.

Key benefits of 8W Square Slim LED Plate

• 880 lm with just 8W (110 lm/W).
• OSRAM DURIS E 2835 chip and CRI 80.
• Low UGR19 glare.
• Available in 3000K, 4000K and 6000K.
• Ultra-thin design with included driver.
• 40,000-hour service life and a 3-year warranty.

Featured specifications of 8W Square Slim LED Plate

Power: 8W; Luminous flux: 880 lm; Efficacy: 110 lm/W; Chip: OSRAM DURIS E 2835; CRI: 80; UGR: 19; Colour temperature: 3000K / 4000K / 6000K; Angle: 120°; Voltage: 85-265V; Protection: IP40; Service life: 40,000 h; Size: 120 mm (105 mm cut-out); Material: aluminium + PC; Driver: included; Certifications: CE and RoHS; Warranty: 3 years.

Installation and maintenance of 8W Square Slim LED Plate

Make a 105 mm cut-out in the false ceiling, connect the driver in line with electrical regulations and push the plate in with its springs. Always switch off the power before any work.

It needs no maintenance beyond an occasional clean. Specialised LED lighting distribution in Spain, with CE and RoHS certification and a professional 3-year warranty. Estimated delivery in 24h subject to stock availability. Check price and availability here.

Frequently asked questions about 8W Square Slim LED Plate

How much light does it give? — 880 lm at an 8W draw (110 lm/W).

What cut-out does it need? — 105 mm.

Does it include a driver? — Yes, it ships with a driver.

What tones are available? — 3000K, 4000K and 6000K.

What warranty does it carry? — 3 years.
