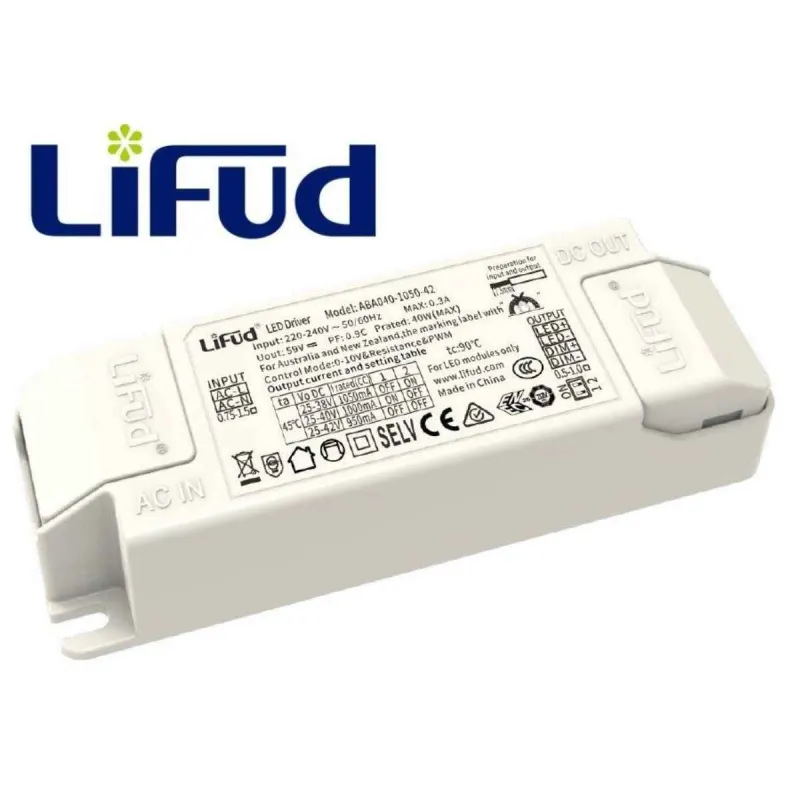

Dimmable LED Driver 0-10V 40W 25-42V LIFUD

The Lifud 0-10V 40W Driver is a professional LIFUD power supply designed to power LED panels, ceiling lights and luminaires up to 40W, with analogue 0-10V dimming and maximum reliability.

General information about Lifud 0-10V 40W Driver

It features 0-10V dimming, one of the most widespread control protocols, which uses a low-voltage signal to vary the luminous flux smoothly and precisely. It runs connected to the 220-240V mains and converts AC into stabilised DC suitable for LED chips.

Its output voltage is 25 to 42V DC and the current is selectable between 800 and 1050mA, offering great versatility for different PCBs or luminaires.

Use and application of Lifud 0-10V 40W Driver

It is perfect for 60x60 LED panels, downlights, LED ceiling lights, recessed luminaires and dimmable lighting projects in offices, shops, hotels and public buildings.

It has no output connector, so it can be wired into any system via terminal blocks or conventional terminals, ideal for replacing discontinued drivers or free-wired luminaires.

Key benefits of Lifud 0-10V 40W Driver

• LIFUD brand, maximum reliability.
• Power up to 40W.
• Analogue 0-10V dimming.
• 25-42V DC output, 800-1050mA selectable current.
• 220-240V input.
• No output connector: universal wiring.

Featured specifications of Lifud 0-10V 40W Driver

Brand: LIFUD; Power: up to 40W; Dimming: 0-10V; Output voltage: 25-42V DC; Current: selectable 800-1050mA; Input voltage: 220-240V; Output: no connector (terminal-block wiring).

Installation and maintenance of Lifud 0-10V 40W Driver

Check that your luminaire's voltage and current are within the driver's range, connect it to the 220-240V mains and wire the output and the 0-10V signal in line with electrical regulations. Always switch off the power before any work.

It needs no maintenance. Specialised LED lighting distribution in Spain with professional warranty. Estimated delivery in 24h subject to stock availability. Check price and availability here.

Frequently asked questions about Lifud 0-10V 40W Driver

What dimming does it use? — Analogue 0-10V.

What power does it support? — Up to 40W.

What output does it have? — 25-42V DC, 800-1050mA selectable.

How do I check compatibility? — Luminaire voltage and current within the driver's range.

Does it have a connector? — No, it wires via terminal blocks.
