LED Optical Module MOSO 65W 11700lm BRIDGELUX Chip Programmable IP66
€43.33
Taxes not included
Color temperature
2200k
Last items in stock
Are you a professional? Sign up and enjoy special conditions. Learn more
- Guaranteed Lowest Price
- Free shipping on orders over €299
- 100% Secure Payment Methods
- Up to 5 years warranty

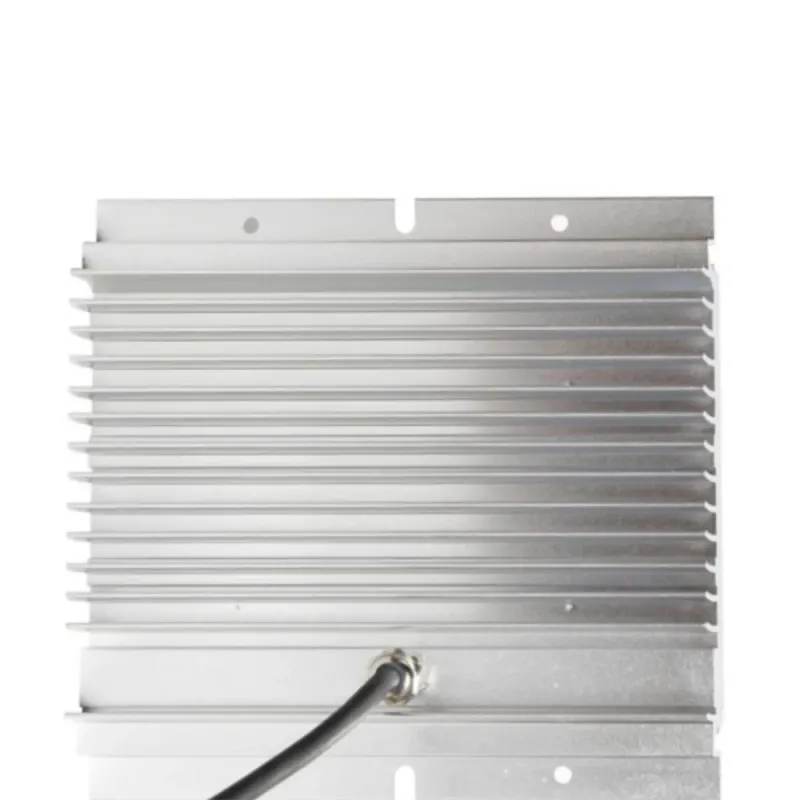

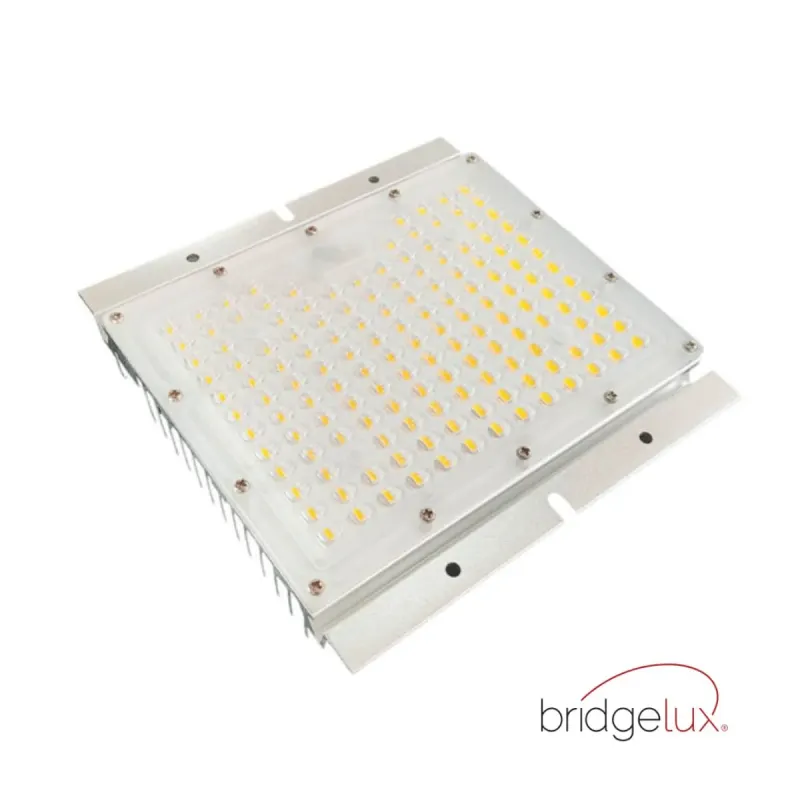

The 65W MOSO LED Optical Module is a high-power, high-efficacy module for public lighting, with a Bridgelux chip, a programmable MOSO driver and road optics, designed to fit into street lights and outdoor luminaires.
General information about 65W MOSO LED Optical Module
With 65W it delivers 11,700 lumens and a 180 lm/W efficacy, using an SMD3030 8D Bridgelux 2240 chip and a CRI of 75. Its 78°x156° asymmetric optics spread light over the road. Available in 3000K and 4000K.
It integrates a programmable MOSO driver, IP66 protection, IK10 impact resistance and a low UGR13 glare, with a 0.98 power factor and 110-260V.
Use and application of 65W MOSO LED Optical Module
It is ideal for retrofitting street lights and public-lighting luminaires, roads, parks and industrial estates, replacing old modules with an efficient, programmable LED solution.
Its programmable driver lets you set the power and dimming profiles for each project.
Key benefits of 65W MOSO LED Optical Module
- 11,700 lm with 65W (180 lm/W).
- Bridgelux SMD3030 8D chip.
- Programmable MOSO driver.
- 78°x156° road optics, UGR13.
- IP66 and IK10 for outdoors.
- 50,000-hour service life and a 5-year warranty.
Featured specifications of 65W MOSO LED Optical Module
Power: 65W; Luminous flux: 11,700 lm; Efficacy: 180 lm/W; Chip: SMD3030 8D Bridgelux 2240; CRI: 75; Colour temperature: 3000K / 4000K; Optics: 78°x156°; UGR: 13; Voltage: 110-260V; Protection: IP66; Impact resistance: IK10; Power factor: 0.98; Driver: programmable MOSO; Service life: 50,000 h; Dimensions: 175×175×35 mm; Certifications: CE and RoHS; Warranty: 5 years.
Installation and maintenance of 65W MOSO LED Optical Module
Fit the module into the luminaire and connect the driver in line with electrical regulations; program the power if the project requires it. Always switch off the power before any work.
It needs hardly any maintenance thanks to its long service life. Specialised LED lighting distribution in Spain, with CE and RoHS certification and a professional 5-year warranty. Estimated delivery in 24h subject to stock availability. Check price and availability here.
Frequently asked questions about 65W MOSO LED Optical Module
How much light does it give? — 11,700 lm with 65W (180 lm/W).
Is it programmable? — Yes, via the MOSO driver.
Is it tough? — Yes, IP66 and IK10.
What tones are available? — 3000K and 4000K.
What warranty does it carry? — 5 years.
| REFERENCE | Lm65w |
|---|---|
| Nominal power | 65w |
| Nominal voltage | 110-260v |
| Light temperature | 3000K - 4000K |
| CRI - Index Chromatic Reproduction | 75 |
| Light-lm | 11700lm |
| Type of LED | SMD 3030- 8D (8cores) Bridgelux Chip 2240DS-C30 |
| Angle opening (º) | 78ºx156º |
| Efficacy LED diode (LM / W) | 210lm / w |
| Luminous efficacy (LM / W) | 180lm / w |
| Certificates | CE - RoHS |
| Ip | Ip66 |
| Estimated Life LED Diode (H) | 50.000 |
| Measures (mm) | 175x175xh35 |
| Power factor (PF) | 0.98 |
| Work frequency (Hz) | 50 / 60hz |
| Temperature range (ºC) | -15º + 70 ° |
| Lit cycles | 100.000 |
| Start time (s) | 0,2s |
| Dyllumbramine Index (UGR) | 13 |
| Impact protection (IK) | Ik10 |
| Driver included | Moso X6-075M041 - 50.000h. |
| Guarantee years | 5 |
