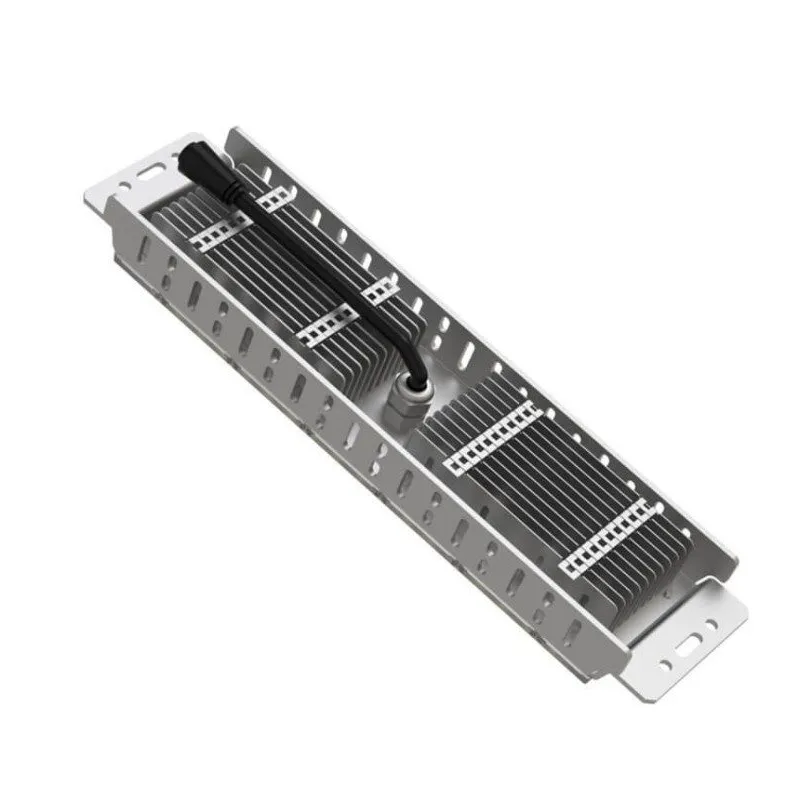

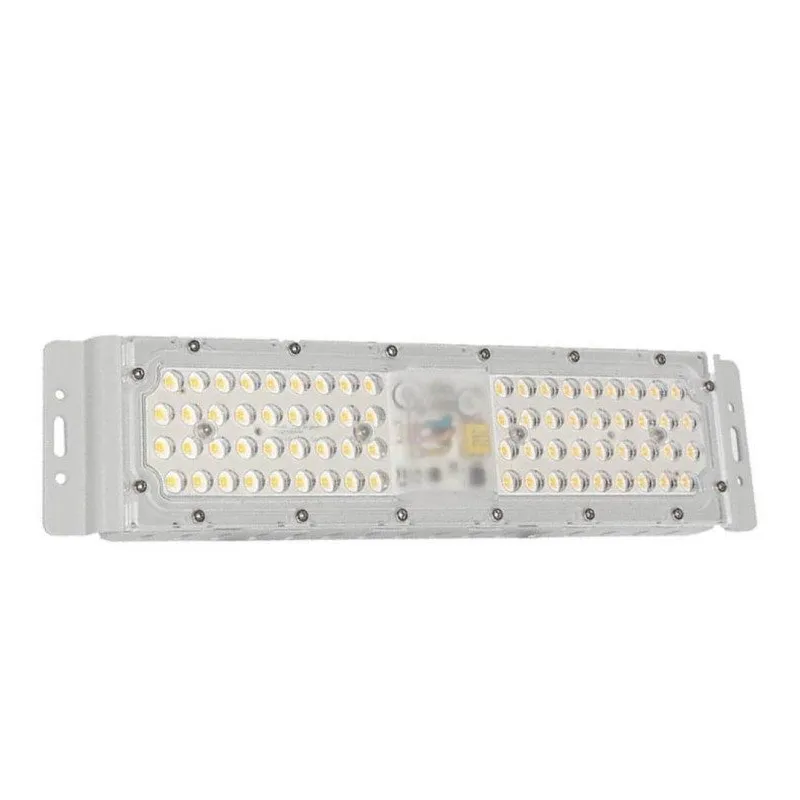

LED Module MAGNUM DOB 50W 7000lm OSRAM Chip 90° IP67

The 50W DOB MAGNUM OSRAM LED module with 90° optic and IP67 is a high-performance optical component to renew street lights and public-lighting luminaires with OSRAM DOB (driver on board) technology.

General information about 50W DOB MAGNUM OSRAM LED Module 90° IP67

It features 72 OSRAM SMD 3030-3D OS-CORE diodes and delivers 7,000 lm with 140 lm/W efficacy (180 lm/W diode). Selectable 4000K-5000K colour temperature, CRI 84 and A++ energy class.

DOB technology (driver on board), it runs at 175-265V with a 0.91 power factor. Its 90° optic, IP67 rating and IK10 resistance make it suitable for demanding outdoors, with a 50,000-hour lifespan.

Use and application of 50W DOB MAGNUM OSRAM LED Module 90° IP67

Designed to fit into street lights and public-lighting floodlights, replacing old modules with high-efficiency OSRAM LED.

Its 90° optic spreads the light widely and works in a -15°C to +70°C range, with IP67 for total protection against dust and water.

Key benefits of 50W DOB MAGNUM OSRAM LED Module 90° IP67

• 72 OSRAM SMD 3030-3D diodes, 7,000 lm and 140 lm/W.
• DOB technology with driver on board.
• Selectable 4000K-5000K colour temperature.
• 90° optic and IP67 / IK10 protection.
• 0.91 power factor and A++ energy class.
• 50,000-hour lifespan.

Key specifications of 50W DOB MAGNUM OSRAM LED Module 90° IP67

Power: 50W; Luminous flux: 7,000 lm; Efficacy: 140 lm/W (diode 180 lm/W); Chip: 72 OSRAM SMD 3030-3D OS-CORE diodes; Colour temperature: 4000K-5000K; CRI: 84; Energy class: A++; Angle: 90°; Technology: DOB (driver on board); Voltage: 175-265V; Power factor: 0.91; Protection: IP67; Impact: IK10; Lifespan: 50,000 h; Temperature range: -15°C ~ +70°C; Dimensions: 350 × 75 × 30 mm; Certifications: CE, RoHS; Warranty: 5 years.

Installation and maintenance of 50W DOB MAGNUM OSRAM LED Module 90° IP67

It is fitted inside the street light housing replacing the old optical assembly and connected to the 175-265V mains per outdoor regulations. Always disconnect the power before any work.

It needs barely any maintenance. Specialised LED lighting distribution in Spain: buy the 50W DOB MAGNUM OSRAM LED module with professional warranty and CE, RoHS certification. Estimated delivery in 24h subject to stock availability. Check price and availability here.

Frequently asked questions about 50W DOB MAGNUM OSRAM LED Module 90° IP67

Which chip does it use? — 72 OSRAM SMD 3030-3D diodes.

How much light does it give? — 7,000 lm with 140 lm/W efficacy.

What is DOB? — Driver on board (on the LED board).

Is it suitable for outdoors? — Yes, IP67 and IK10.

What warranty? — 5 years.
