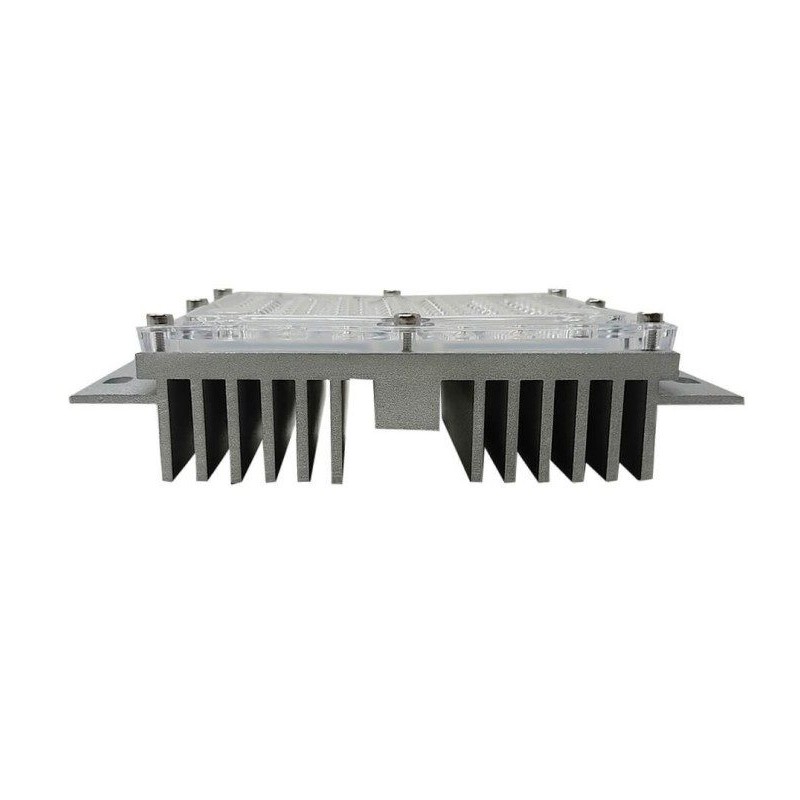

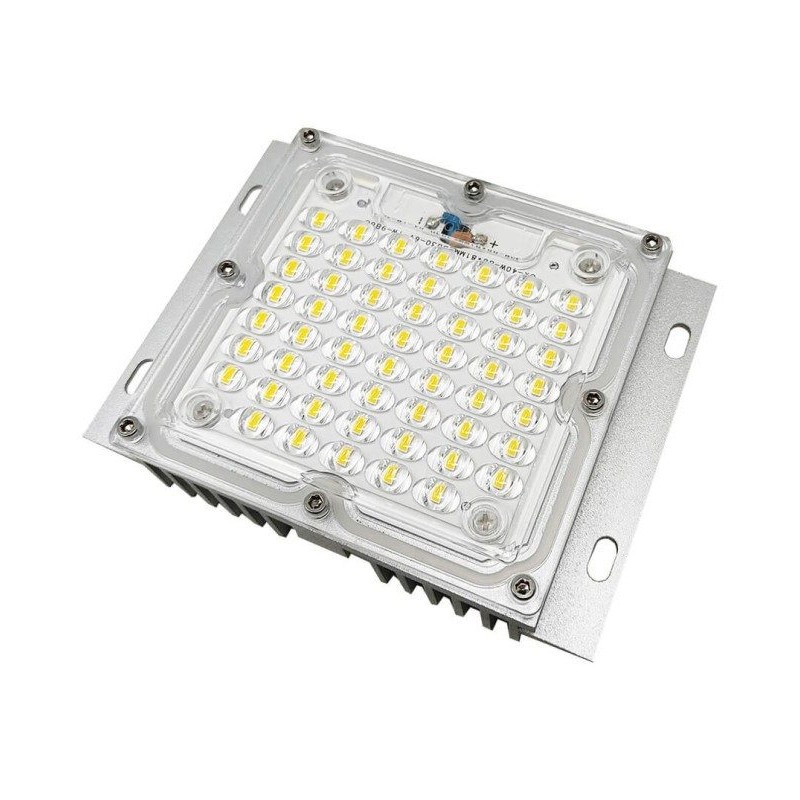

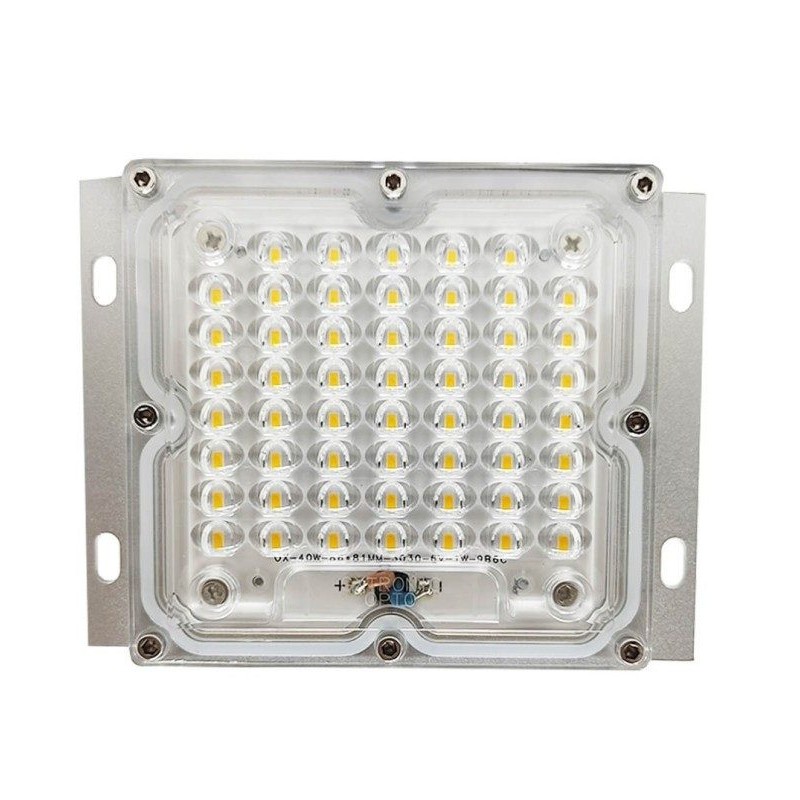

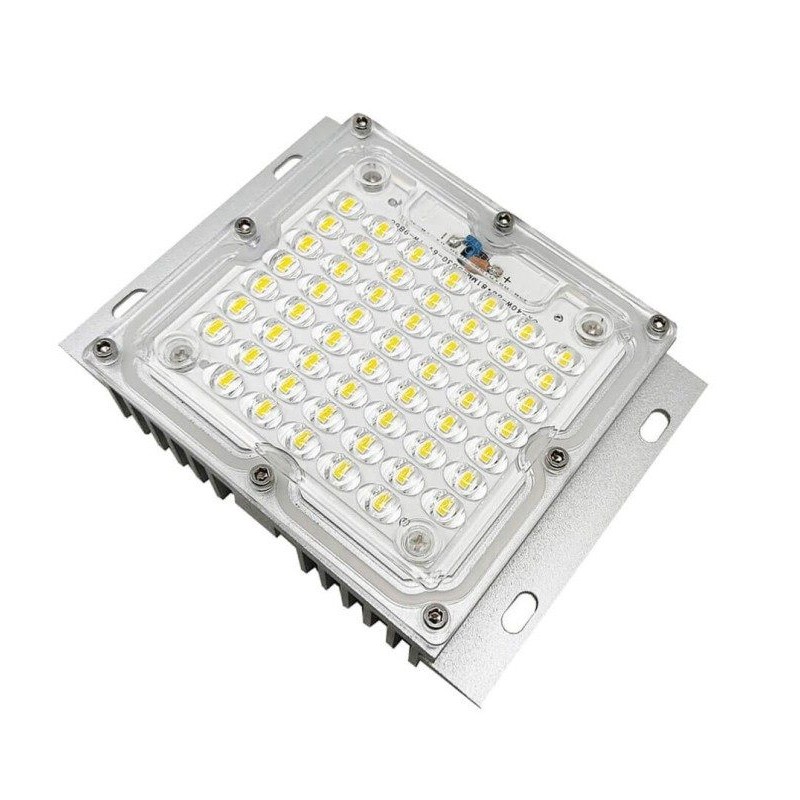

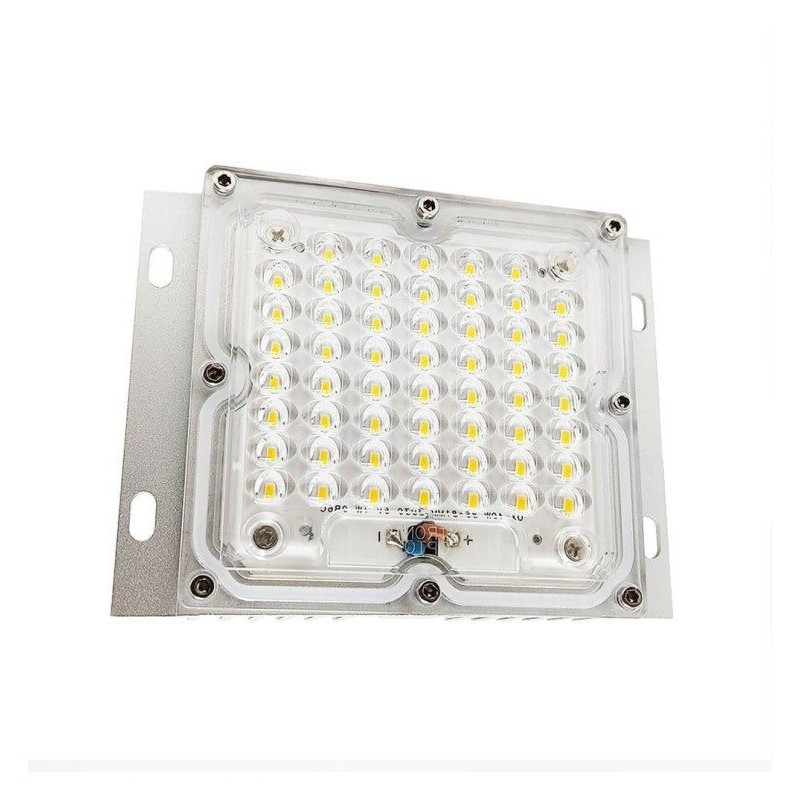

LED Optical Module 40W 5400lm BRIDGELUX Chip GXTRONIC IP67

The 40W Bridgelux LED optical module with integrated driver is a professional replacement to renew or repair street lights and public-lighting luminaires, delivering high performance and an adjustable-angle optic.

General information about 40W Bridgelux LED Optical Module

It delivers 5,400 lumens with a 135 lm/W efficacy and a Bridgelux SMD 3030 (4 cores) chip. It lets you select the colour temperature between 2200K, 3000K and 4000K, with CRI 70 and an adjustable 80° to 150° angle to tailor the light distribution.

It includes an integrated driver, runs at 85-265V with a 0.96 power factor and A+ energy class. Its IP67 rating and IK10 impact resistance make it suitable for outdoors, with a 40,000-hour lifespan.

Use and application of 40W Bridgelux LED Optical Module

Designed to fit into street lights, road luminaires and public-lighting floodlights, replacing old modules with efficient LED technology without changing the whole luminaire.

It works in a -15°C to +70°C range and its adjustable optic (80°-150°) optimises the spread to the road. IP67 ensures total protection against dust and water.

Key benefits of 40W Bridgelux LED Optical Module

• 5,400 lm with 135 lm/W efficacy and Bridgelux SMD 3030 chip.
• Integrated driver and selectable colour temperature (2200/3000/4000K).

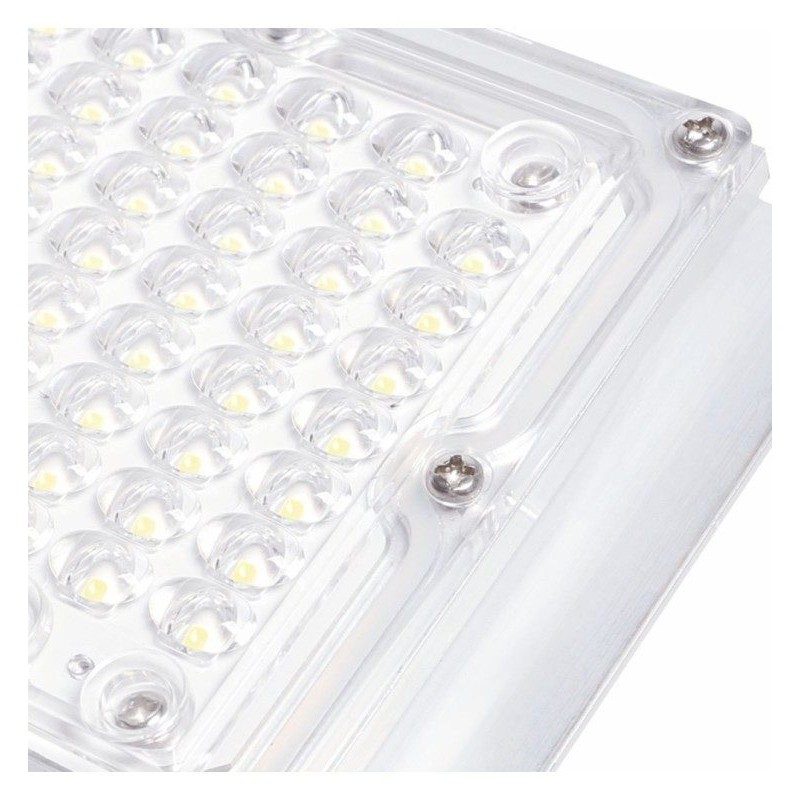

• Adjustable-angle optic 80°-150°.
• IP67 protection and IK10 impact resistance for outdoors.
• 0.96 power factor and A+ energy class.
• 40,000-hour lifespan.

Key specifications of 40W Bridgelux LED Optical Module

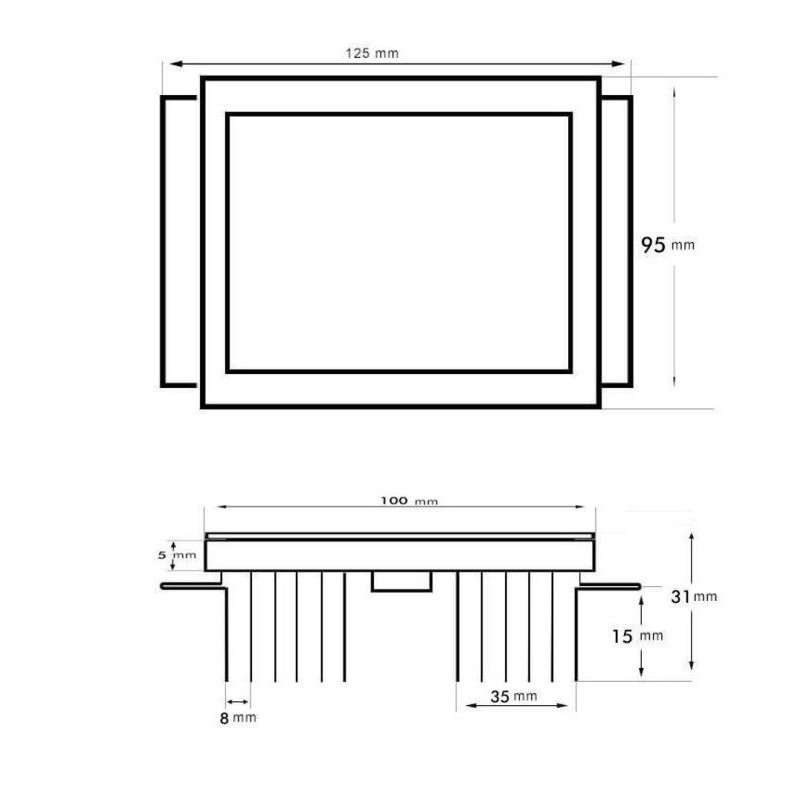

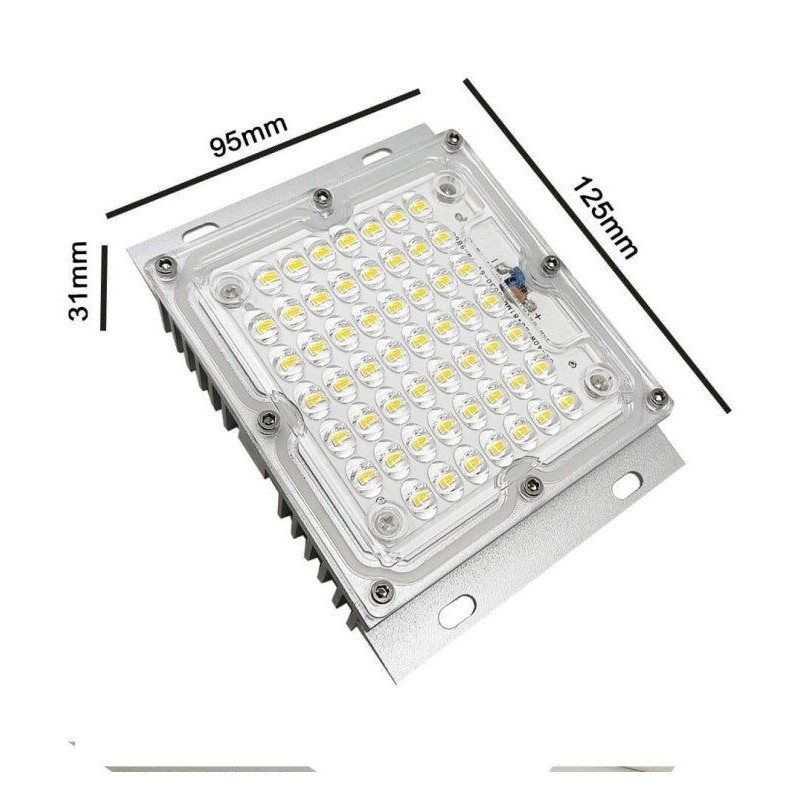

Power: 40W; Luminous flux: 5,400 lm; Efficacy: 135 lm/W; Chip: Bridgelux SMD 3030 (4 cores); Colour temperature: 2200K / 3000K / 4000K (selectable); CRI: 70; Angle: 80°-150° (adjustable); Voltage: 85-265V; Power factor: 0.96; Energy class: A+; Driver: integrated; Protection: IP67; Impact: IK10; Lifespan: 40,000 h; Temperature range: -15°C ~ +70°C; Dimensions: 125 × 95 × 30 mm; Certifications: CE, RoHS; Warranty: 5 years.

Installation and maintenance of 40W Bridgelux LED Optical Module

It is mounted inside the street light or luminaire housing, connecting the integrated driver to the 85-265V mains per regulations. Always disconnect the power before any work and adjust the optic angle to the road.

It needs barely any maintenance. Specialised LED lighting distribution in Spain: buy the 40W Bridgelux LED optical module with professional warranty and CE, RoHS certification. Estimated delivery in 24h subject to stock availability. Check price and availability here.

Frequently asked questions about 40W Bridgelux LED Optical Module

What is it for? — To renew or repair street lights and public-lighting luminaires with LED technology.

How much light does it give? — 5,400 lm with 135 lm/W efficacy.

Does it have a driver? — Yes, an integrated driver.

Is it suitable for outdoors? — Yes, IP67 and IK10.

What warranty? — 5 years.
