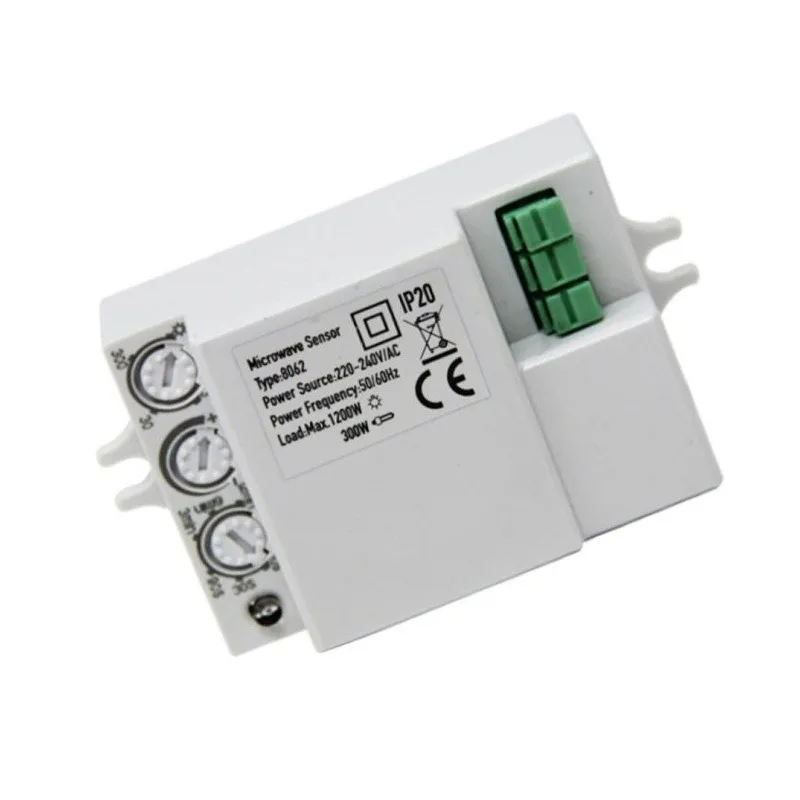

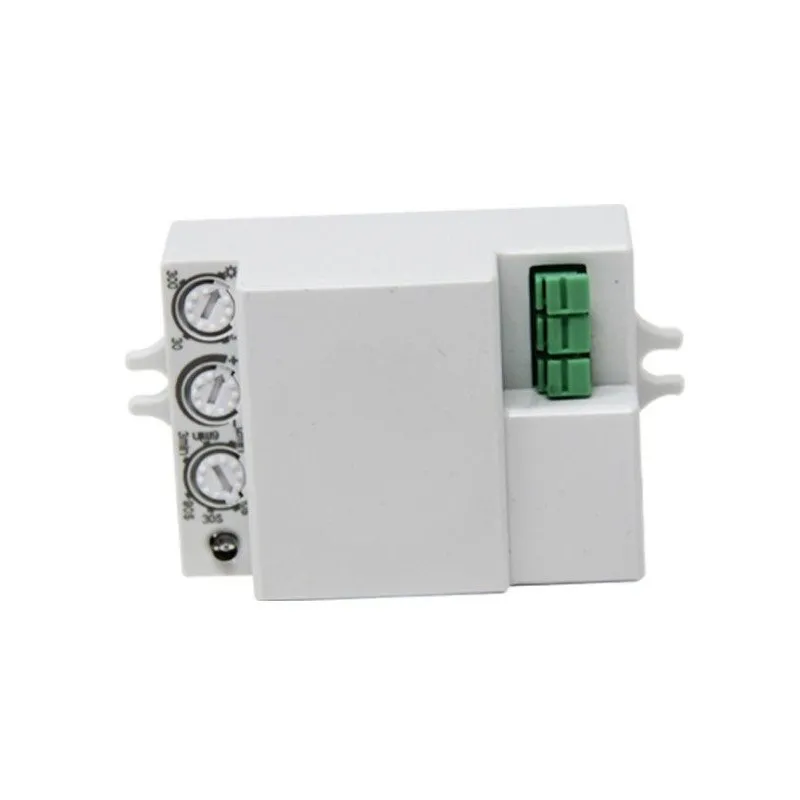

Microwave RADAR Motion Detector 5.8GHz 300W LED

5.8 GHz microwave RADAR motion detector to automate the switching of LED luminaires up to 300W precisely, efficiently and discreetly. It detects people and vehicles without needing line of sight, ideal for modern installations.

General information about 5.8 GHz Microwave RADAR Motion Detector

Its 5.8 GHz microwave sensor offers precise, reliable detection: unlike PIR sensors, it is unaffected by ambient temperature or non-metallic obstacles, with an immediate response in any condition.

It can be installed hidden behind false ceilings, glass or weatherproof fittings without losing function. It handles loads up to 1200W incandescent or 300W LED, with adjustable on-time (~10 s to ~12 min) and a 30,000-hour lifespan.

Use and application of 5.8 GHz Microwave RADAR Motion Detector

It supports wall or ceiling mounting, with an adjustable detection range of 5 to 15 m on the wall and 1 to 5 m on the ceiling, and a 180° to 360° angle depending on position.

It is perfect for stairs, garages, warehouses, bathrooms, corridors, offices, industrial units and common areas, optimising consumption by switching the light on only when there is real presence.

Key benefits of 5.8 GHz Microwave RADAR Motion Detector

• 5.8 GHz microwave detection, precise and with no need for line of sight.
• Hidden installation behind ceilings, glass or weatherproof fittings.
• Adjustable range: 5-15 m on wall / 1-5 m on ceiling.
• 180° to 360° angle depending on mounting.
• Handles up to 1200W incandescent / 300W LED.

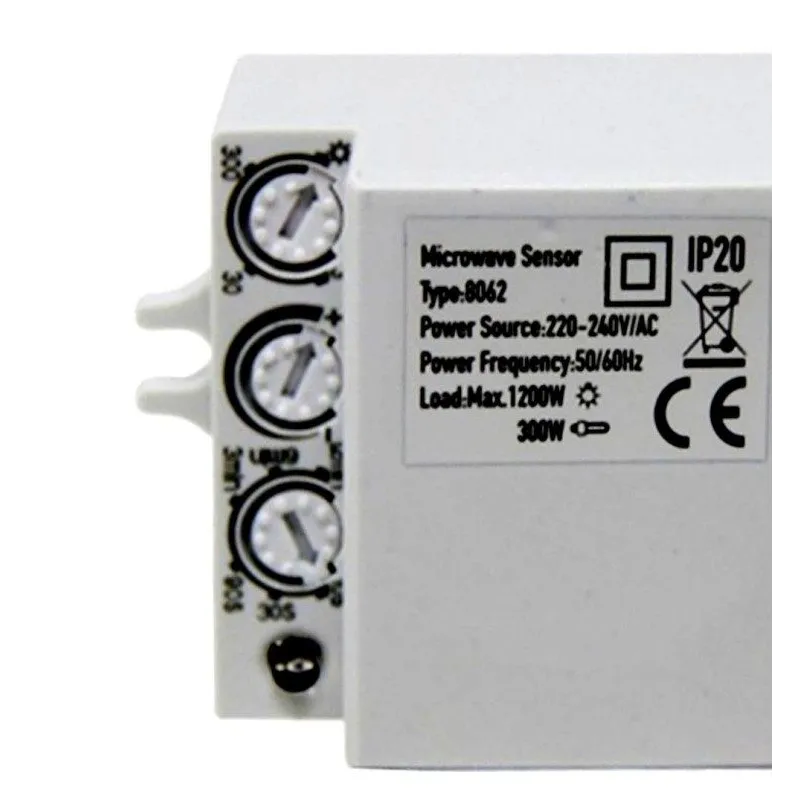

• Adjustable on-time (~10 s to ~12 min).

Key specifications of 5.8 GHz Microwave RADAR Motion Detector

Technology: 5.8 GHz microwave RADAR sensor; Voltage: 220V-240V; Coverage: 180° - 360°; Range: wall 5-15 m / ceiling 1-5 m (adjustable); Maximum load: 1200W incandescent / 300W LED; On-time: ~10 s to ~12 min; Protection: IP20; Lifespan: 30,000 h; Temperature range: -20°C ~ +55°C; Dimensions: L76 × W43 × H21 mm; Certifications: CE, RoHS; Warranty: 5 years.

Installation and maintenance of 5.8 GHz Microwave RADAR Motion Detector

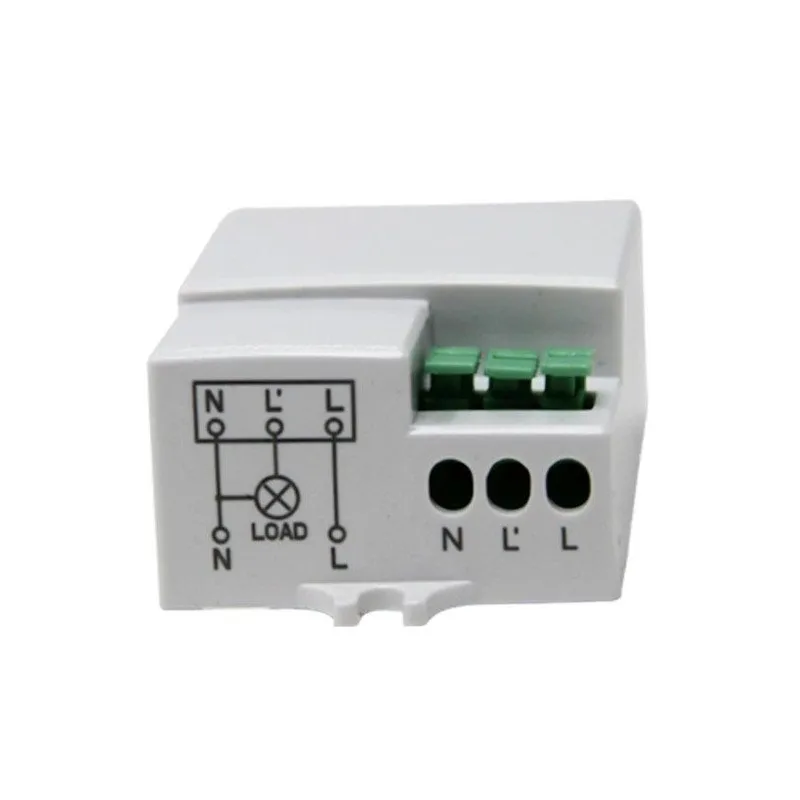

It is wired to the 220-240V mains in series with the LED luminaire and can be mounted on a wall or ceiling, even hidden behind non-metallic materials. Always disconnect the power before installation and set range, time and light with the controls.

It needs barely any maintenance as it has no moving parts. Specialised LED lighting distribution in Spain: buy the 5.8 GHz microwave RADAR motion detector with professional warranty and CE, RoHS certification. Estimated delivery in 24h subject to stock availability. Check price and availability here.

Frequently asked questions about 5.8 GHz Microwave RADAR Motion Detector

Which technology does it use? — A 5.8 GHz microwave RADAR sensor.

Can it be hidden? — Yes, behind false ceilings, glass or non-metallic weatherproof fittings.

What is its range? — 5-15 m on the wall and 1-5 m on the ceiling, adjustable.

What load does it handle? — Up to 1200W incandescent or 300W LED.

Can the on-time be adjusted? — Yes, from about 10 seconds to about 12 minutes.
