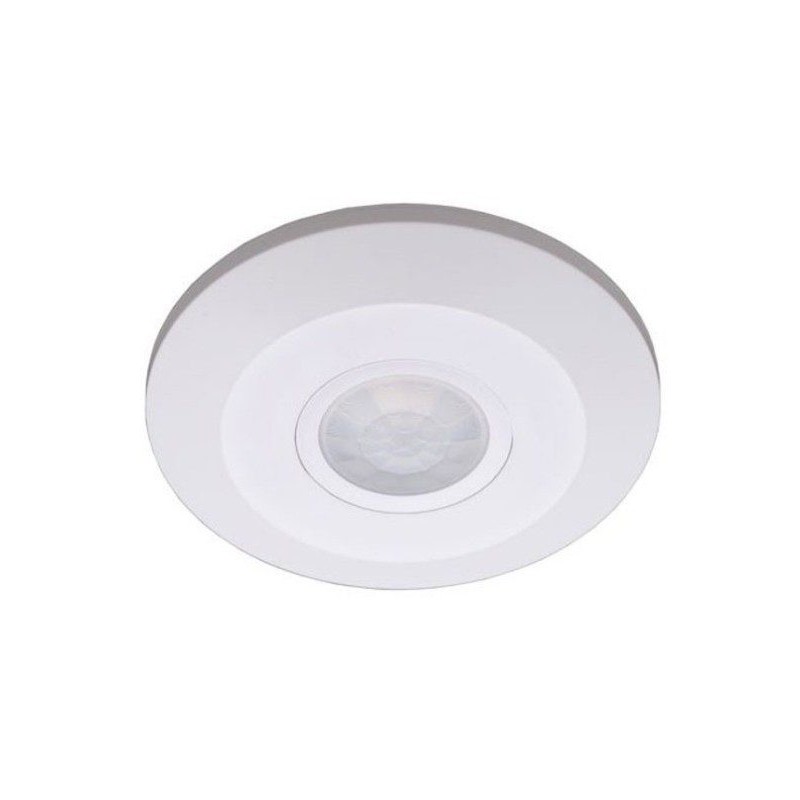

Infrared Motion Detector Surface Slim 360° 500W LED

Slim surface infrared motion detector at 220-240V with 360° coverage, with an ultra-thin profile for ceiling surface mounting. It automates lighting in corridors, stairs, bathrooms and walkways with a discreet design.

General information about Slim Surface Infrared Motion Detector

It features an infrared PIR sensor that detects the moving heat of people or animals and switches the light on instantly, turning it off automatically when it no longer detects presence to avoid unnecessary consumption.

It can govern loads up to 2000W incandescent or 500W LED, with the usual time, light-sensitivity and range adjustments. It has a 30,000-hour lifespan and works in a -20°C to +55°C range.

Use and application of Slim Surface Infrared Motion Detector

Its 360° coverage makes it ideal for automatic switching in corridors, stairs, landings, bathrooms, hallways and storage rooms, with quick, discreet surface mounting.

It is ideal for homes, offices, hotels, communal staircases and retail areas seeking energy efficiency by switching the light on only when there is presence.

Key benefits of Slim Surface Infrared Motion Detector

• 360° coverage with infrared PIR sensor.
• Automatic off to save energy.
• Handles up to 2000W incandescent / 500W LED.

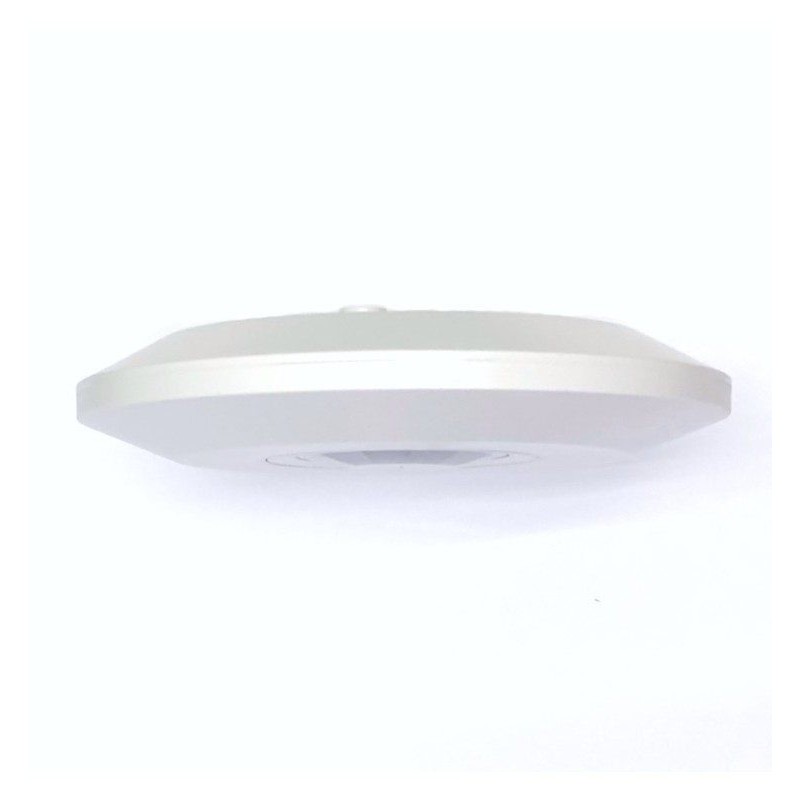

• Slim design for discreet surface mounting.
• 30,000-hour lifespan.
• -20°C to +55°C operating range.

Key specifications of Slim Surface Infrared Motion Detector

Technology: infrared PIR sensor; Voltage: 220-240V; Coverage: 360°; Maximum load: 2000W incandescent / 500W LED; Mounting: surface; Lifespan: 30,000 h; Temperature range: -20°C ~ +55°C; Dimensions: Ø62.5 × 55 × 26.5 mm; Material: thermoplastic; Certifications: CE, RoHS; Warranty: 2 years.

Installation and maintenance of Slim Surface Infrared Motion Detector

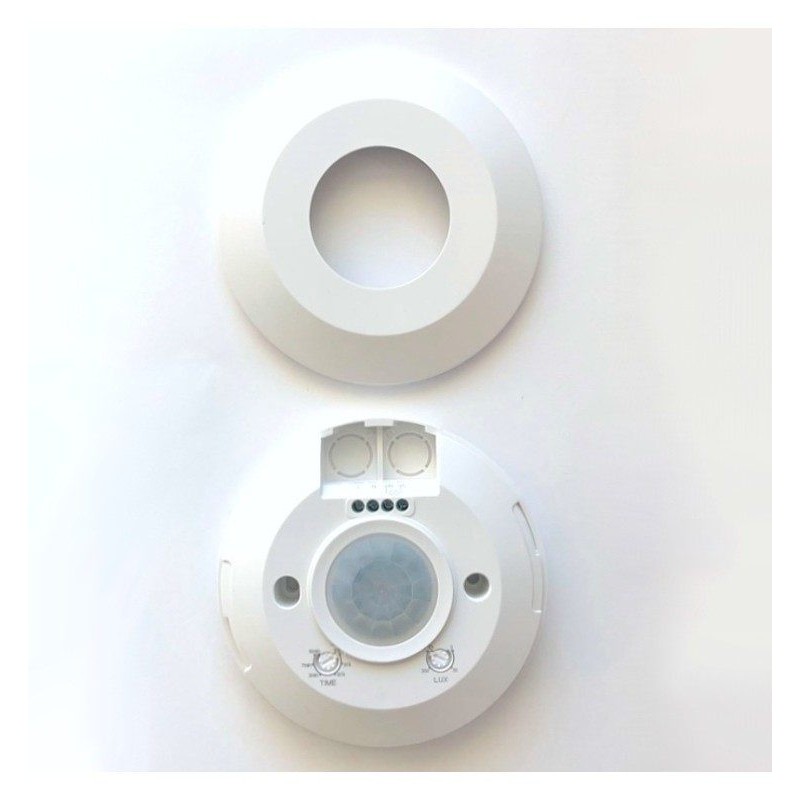

It is surface-mounted on the ceiling and wired to the 220-240V mains in series with the luminaire. Always disconnect the power before installation and set the parameters with the controls. For maintenance, keep the sensor lens clean with a dry cloth.

Specialised LED lighting distribution in Spain: buy the slim surface infrared motion detector with professional warranty and CE, RoHS certification. Estimated delivery in 24h subject to stock availability. Check price and availability here.

Frequently asked questions about Slim Surface Infrared Motion Detector

Which technology does it use? — An infrared PIR sensor.

What is its coverage? — 360°.

What load does it handle? — Up to 2000W incandescent or 500W LED.

How is it mounted? — On the surface of the ceiling.

What warranty? — 2 years.
