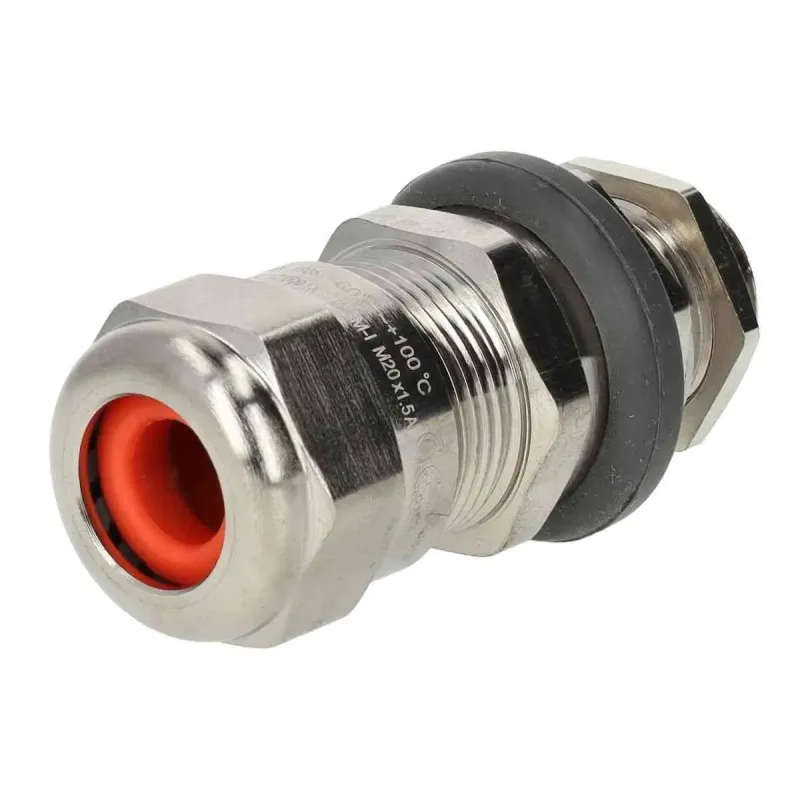

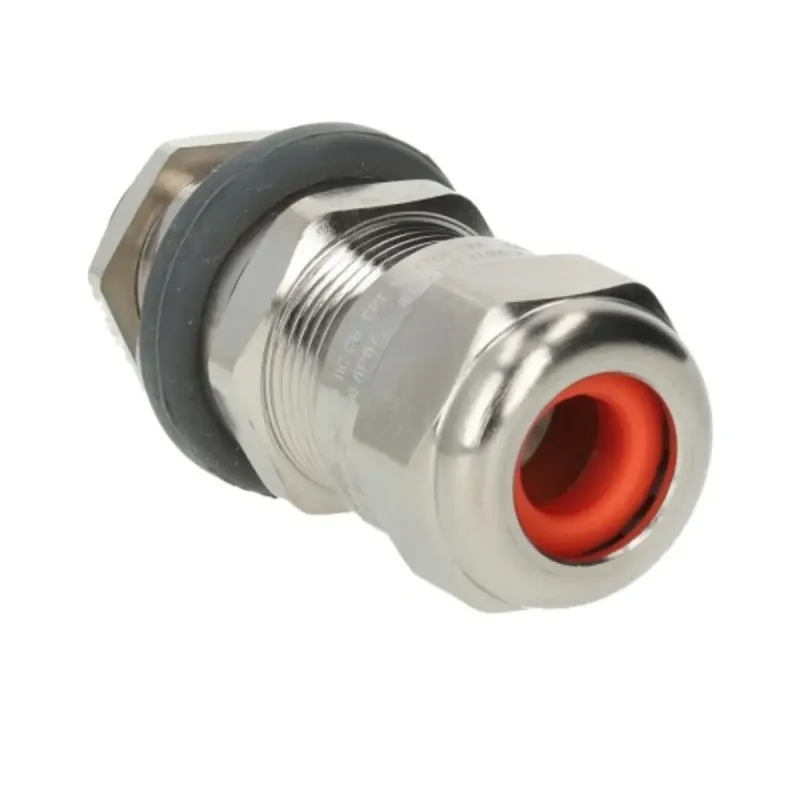

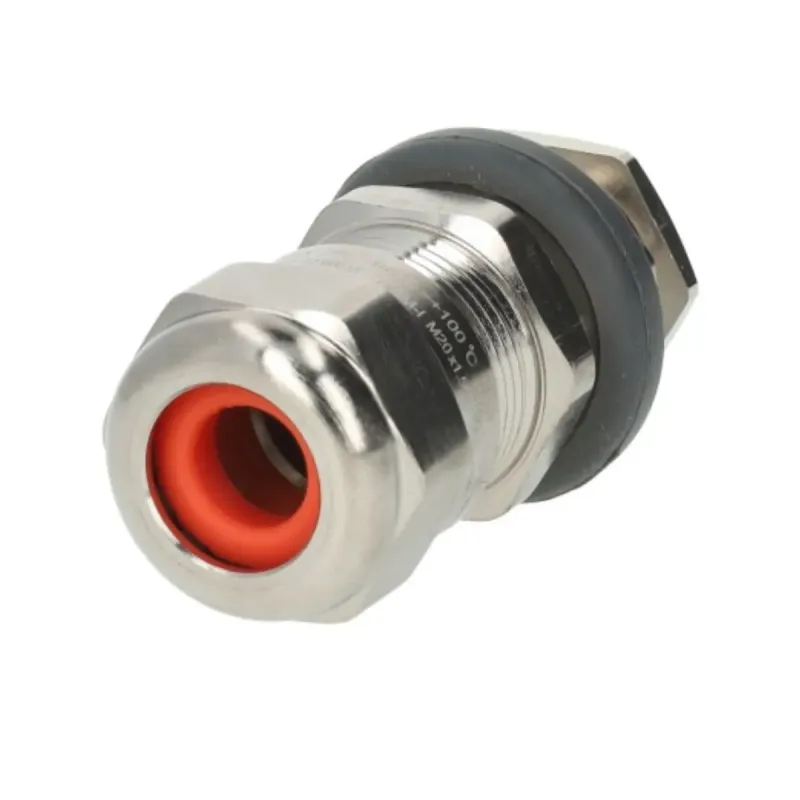

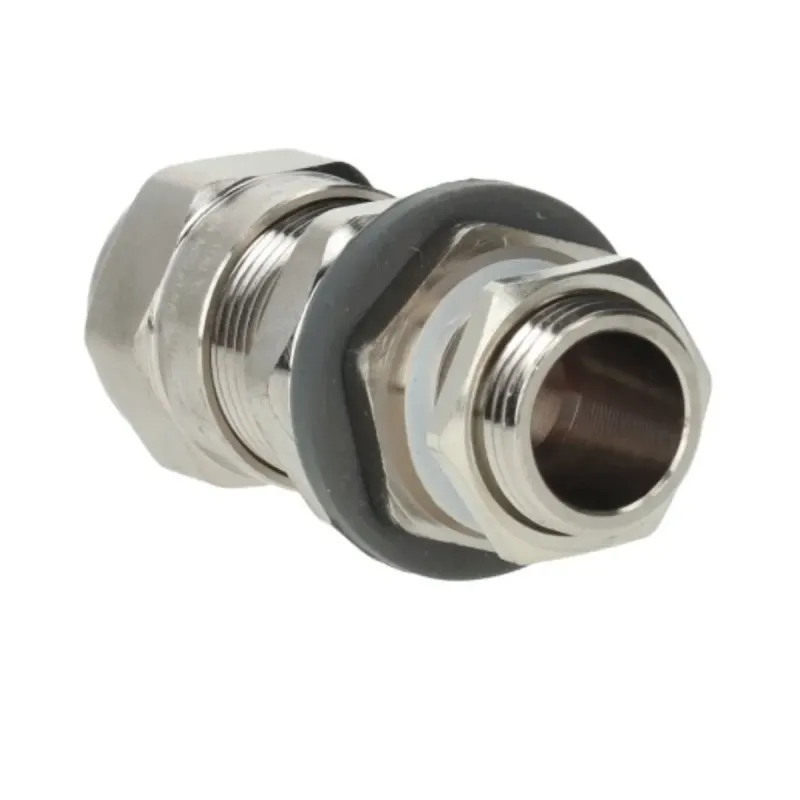

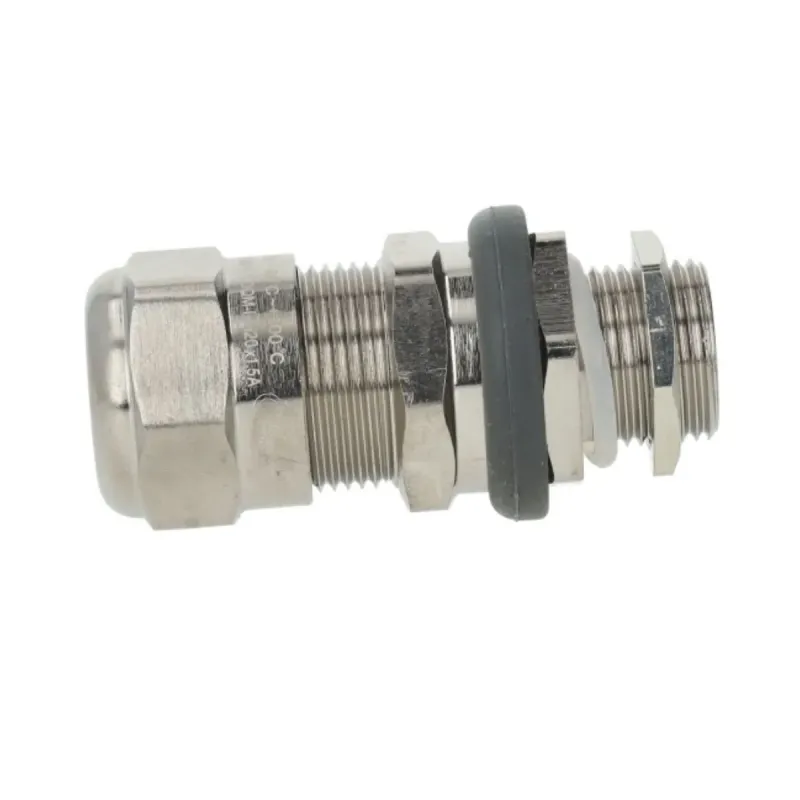

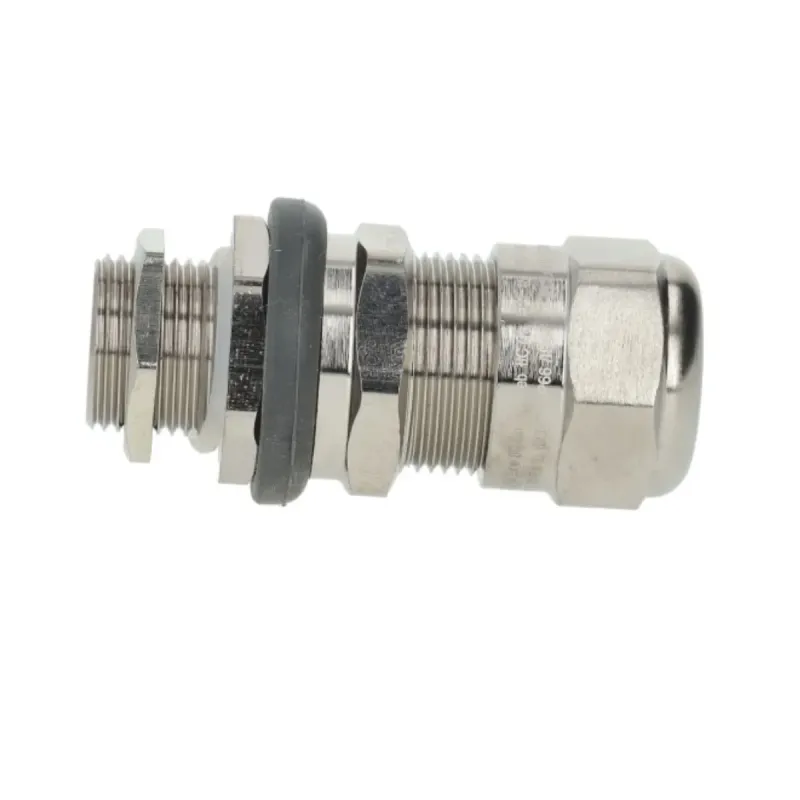

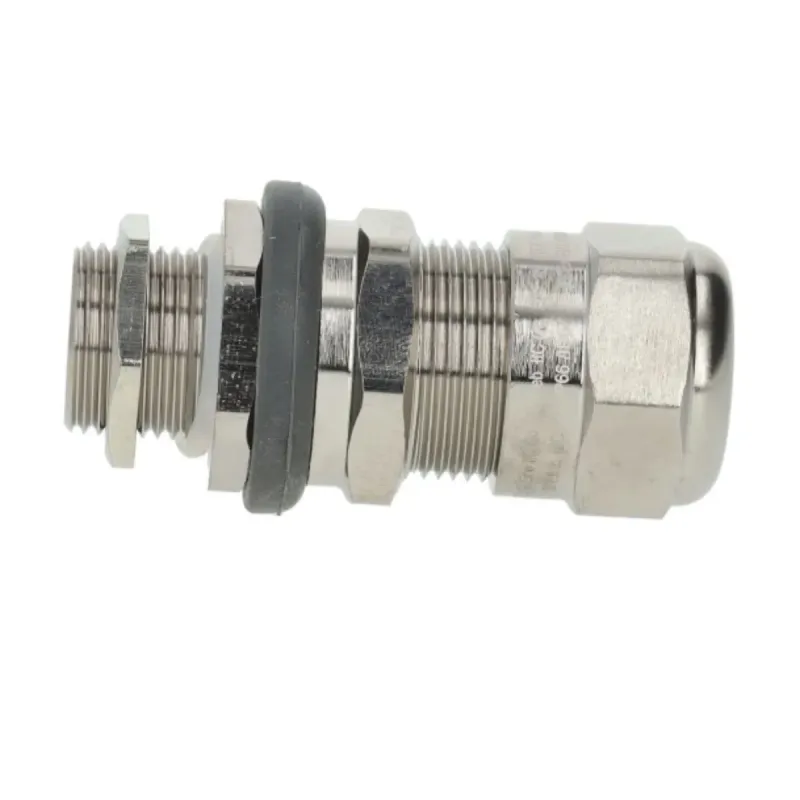

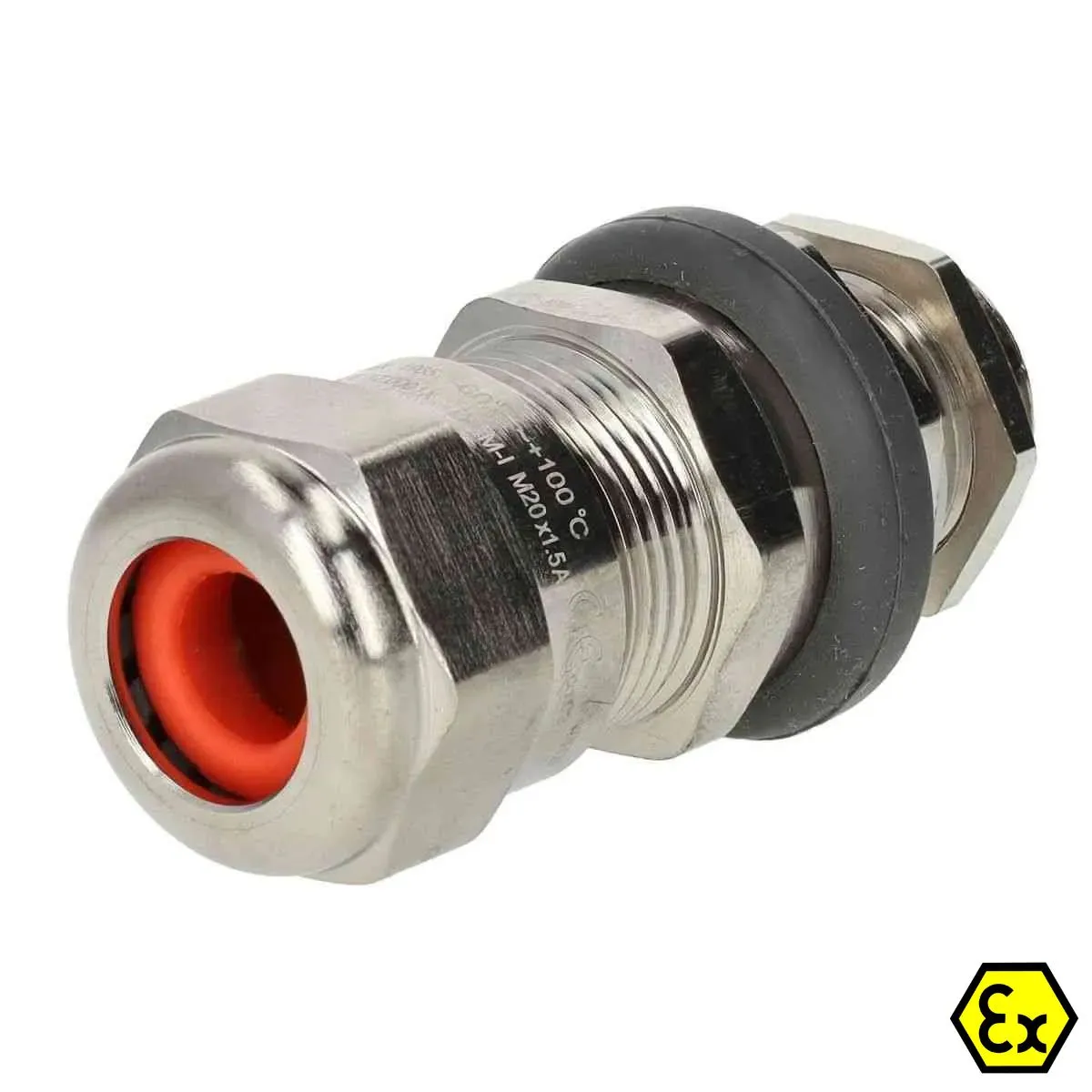

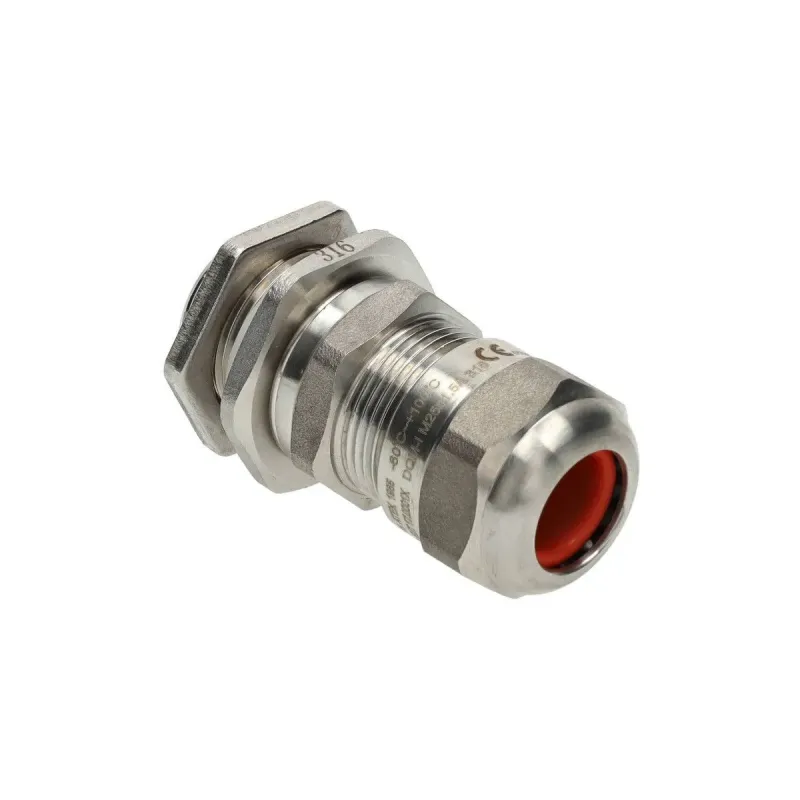

Metal Cable Gland ATEX M20-M25-3/4"-1/2"

The ATEX Metal Cable Gland is a connection accessory designed for the safe entry of cables into luminaires and equipment installed in potentially explosive atmospheres. Made of nickel-plated brass with IP66 rating, it complies with the ATEX Directive 2014/34/EU and is available in M20, M25, NPT 3/4" and NPT 1/2" sizes.

General information about the ATEX Metal Cable Gland

Made of silver nickel-plated brass with a rubber O-ring seal, it ensures a watertight IP66 connection resistant to corrosion and demanding industrial environments. Its ATEX marking II 2 G Ex e IIC Gb, II 2 D Ex tb IIIC Db allows use in flammable gas and dust atmospheres, and it meets CE and RoHS standards.

It accepts armoured cables with a clamping range according to size (M20: 5.5-13 mm; M25, NPT 3/4" and NPT 1/2": 9-16 mm outer diameter). Dimensions: Ø30 x 61 mm.

Use and application of the ATEX Metal Cable Gland

It is the ideal solution for factories, warehouses, chemical plants, refineries and any classified installation requiring a safe, watertight cable entry. Suitable for outdoor use with sun exposure and extreme weather.

Select the thread you need (M20, M25, NPT 3/4" or NPT 1/2") according to the equipment and target gland.

Key benefits of the ATEX Metal Cable Gland

• ATEX, CE and RoHS certification for zones 1, 2, 21 and 22.
• Corrosion-resistant nickel-plated brass.
• IP66 protection with rubber O-ring seal.
• Available in M20, M25, NPT 3/4" and NPT 1/2".
• Compatible with armoured cables.
• 5-year warranty.

Highlighted specifications of the ATEX Metal Cable Gland

Material: nickel-plated brass; Colour: silver; Thread sizes: M20 / M25 / NPT 3/4" / NPT 1/2"; Protection: IP66; Cable clamping: 5.5-13 mm (M20) / 9-16 mm (others); Seal: rubber O-ring; Dimensions: Ø30 x 61 mm; ATEX marking: II 2 G Ex e IIC Gb, II 2 D Ex tb IIIC Db; Warranty: 5 years.

Installation and maintenance of the ATEX Metal Cable Gland

It is screwed into the equipment entry and tightened onto the cable to ensure watertightness. Before any work, disconnect the power supply and check the sealing to keep the IP66 rating and ATEX safety.

Nickel-plated brass ATEX cable gland, IP66, in 4 thread sizes.

Distributed in Spain by Ibérica de Iluminación, with a 5-year warranty, ATEX, CE and RoHS certification and estimated 24h shipping subject to stock. Choose your size and add it to your order now.

Frequently asked questions about the ATEX Metal Cable Gland

Which sizes are available? M20, M25, NPT 3/4" and NPT 1/2".

Which ATEX zones is it certified for? Zones 1, 2 (gas) and 21, 22 (dust).

What material is it? Nickel-plated brass with a rubber O-ring seal.

What cable diameter does it accept? 5.5-13 mm for M20 and 9-16 mm for the other sizes.

What warranty does it have? 5 years, with ATEX, CE and RoHS certification.
