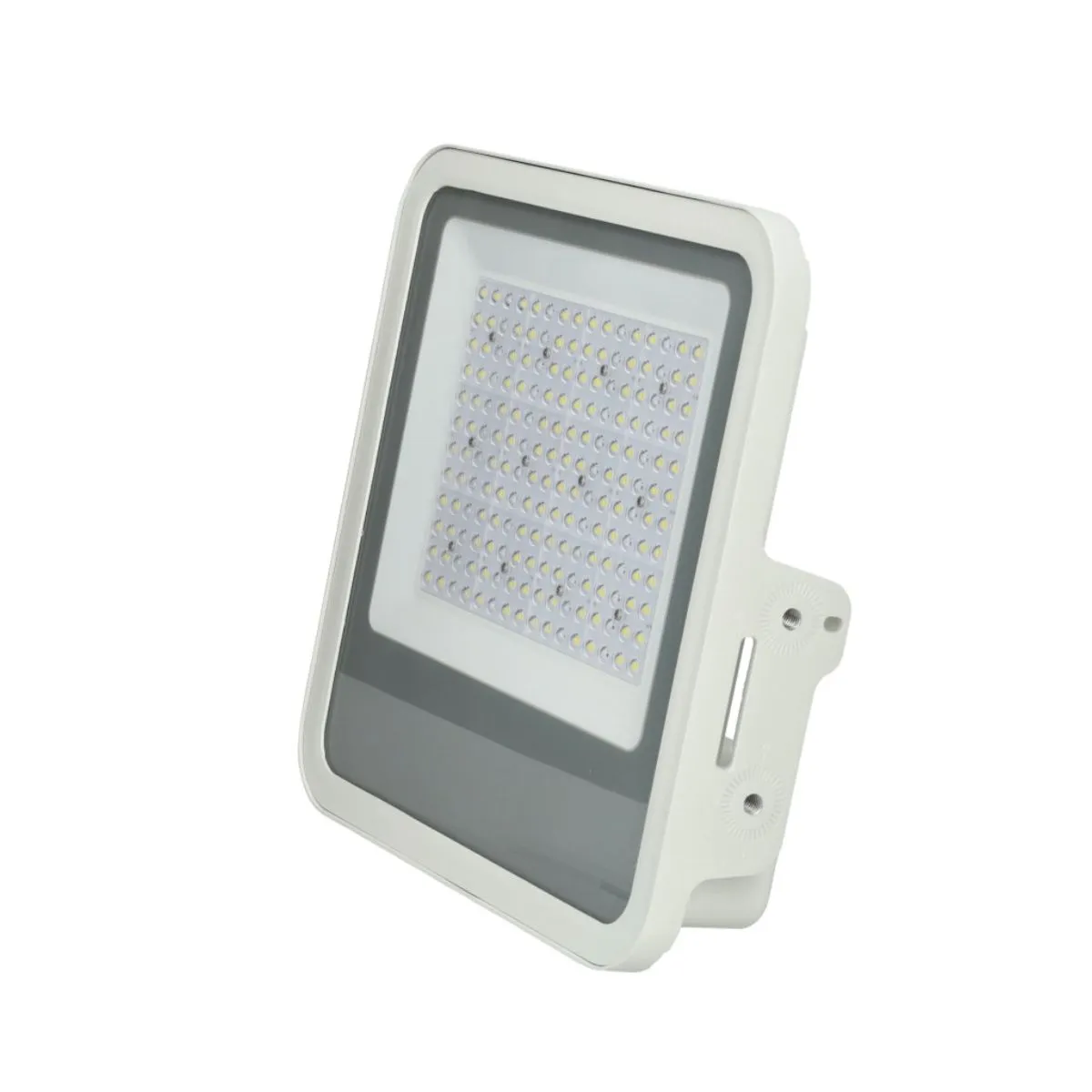

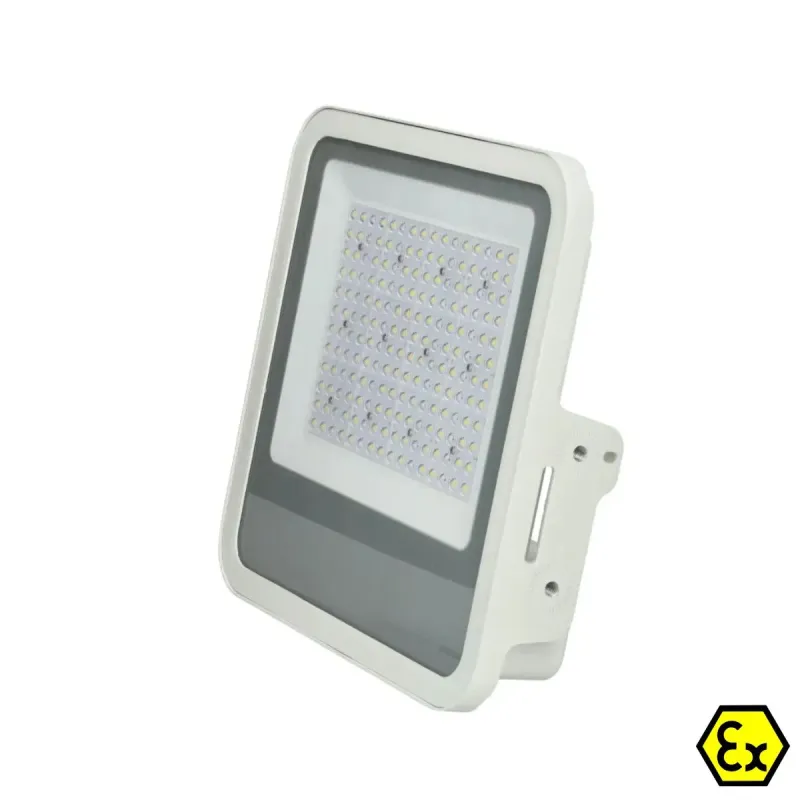

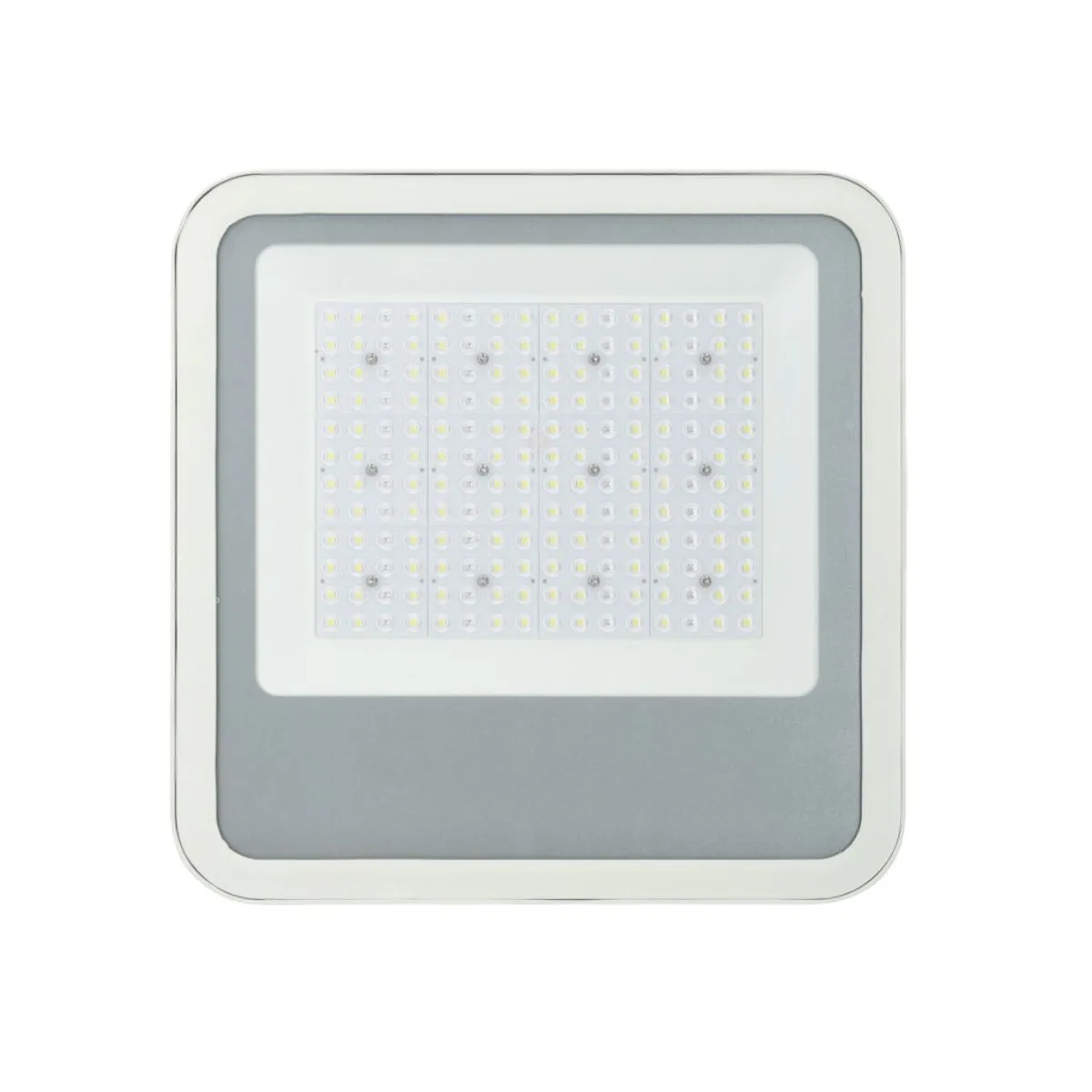

LED Floodlight ATEX 100W 120° IP66 LUMILEDS Petrol Stations

The LED Floodlight ATEX 100W for petrol stations is an industrial luminaire designed to safely light service-station canopies and other environments with explosion risk. With 16,000 lumens, a 120° optic and IP66 rating, it complies with the ATEX Directive 2014/34/EU and is suitable for zones 1, 2, 21 and 22.

General information about the LED Floodlight ATEX 100W for petrol stations

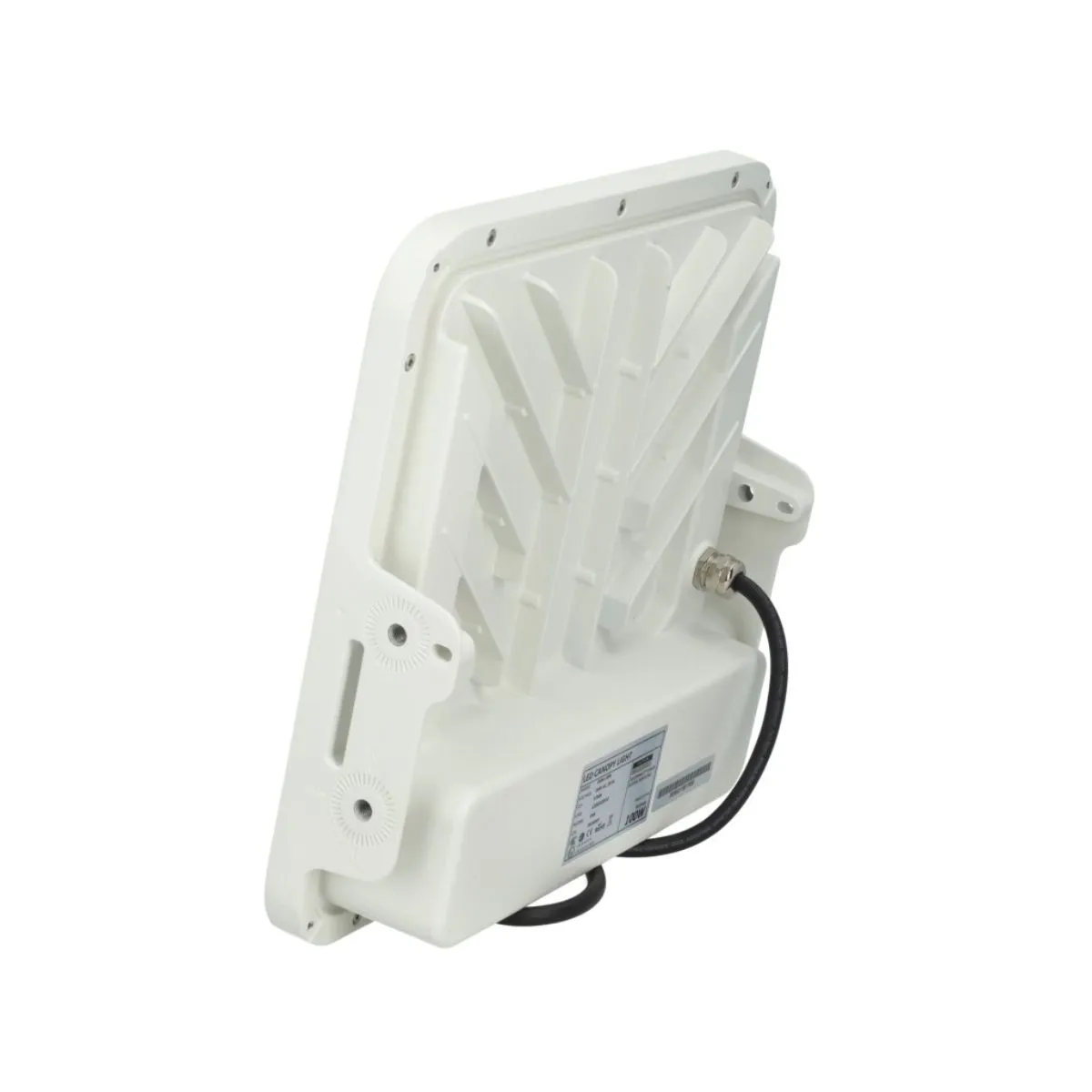

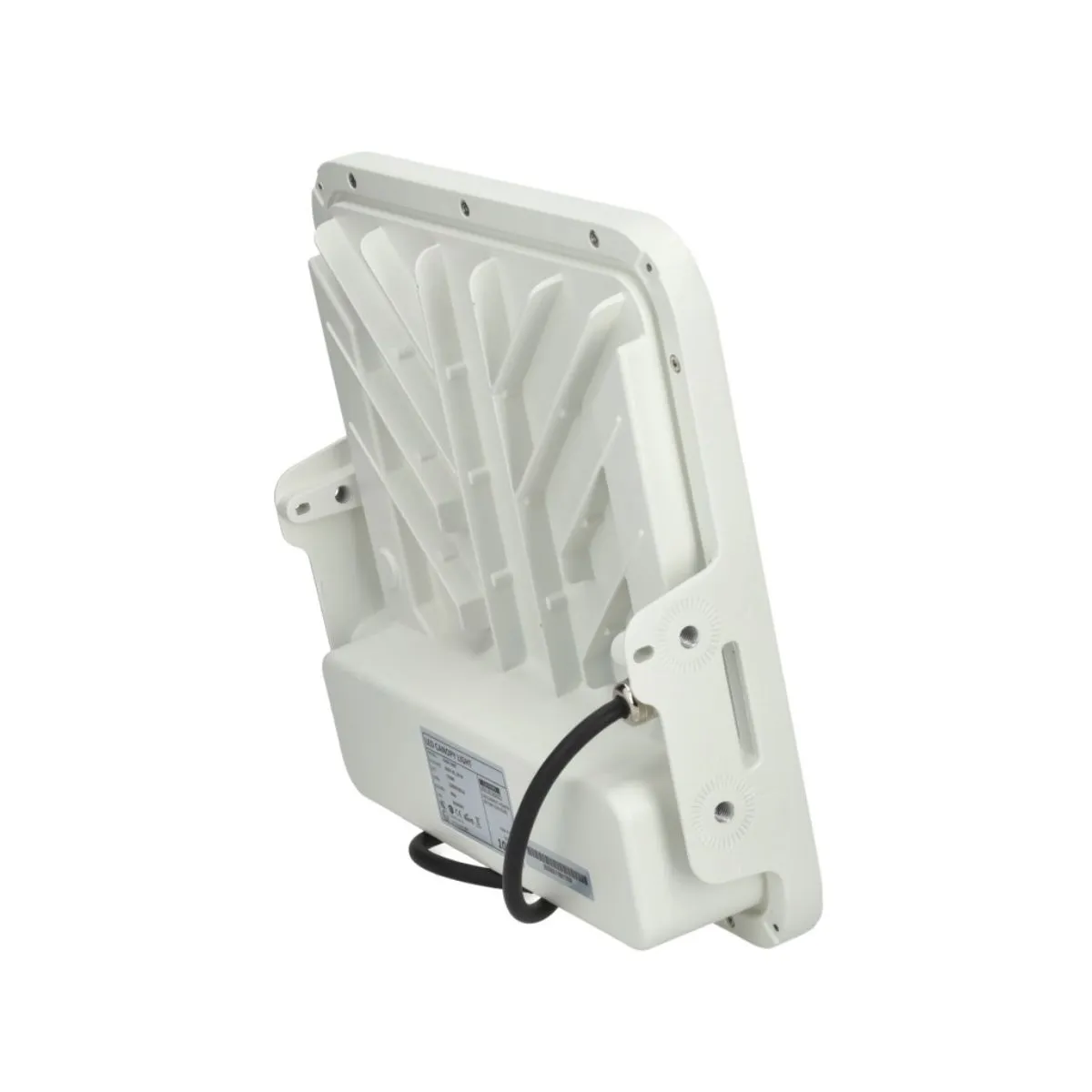

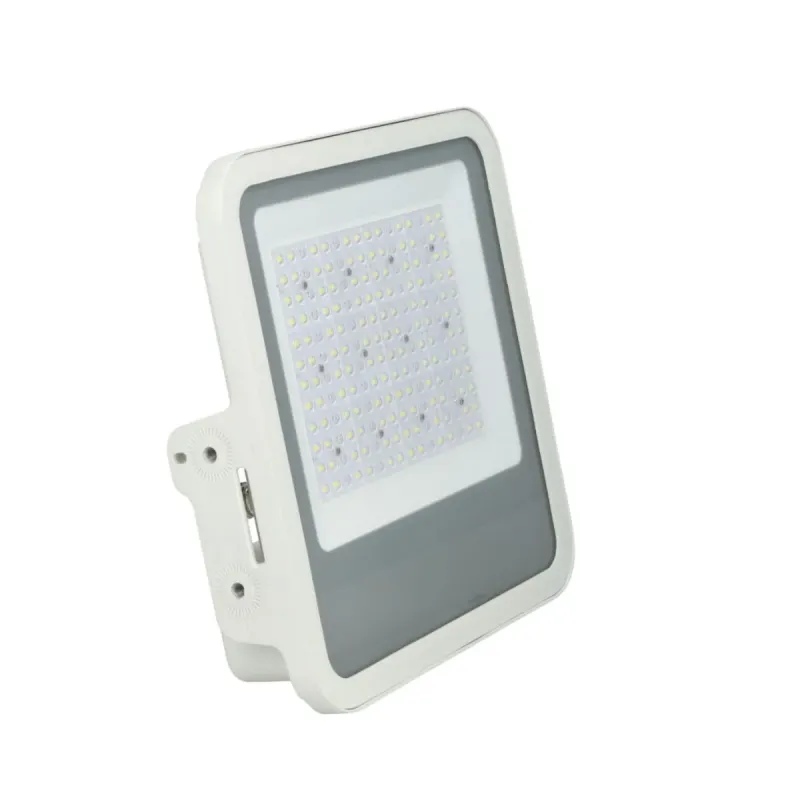

Built in aluminium and tempered glass with IP66/IK10 protection, it integrates a Lumileds 3030 chip and a high-end Inventronics driver. It includes 10 kV surge protection and its ATEX marking II 2G EX ib IIC T6 / I 2D EX ib A21 T85°C certifies use in flammable gas and dust atmospheres.

It delivers 16,000 lm with an efficacy of 160 lm/W, 5700K colour temperature (neutral white), 0.95 power factor and 100-240V AC input. Its lifespan reaches 50,000 hours.

Use and application of the LED Floodlight ATEX 100W for petrol stations

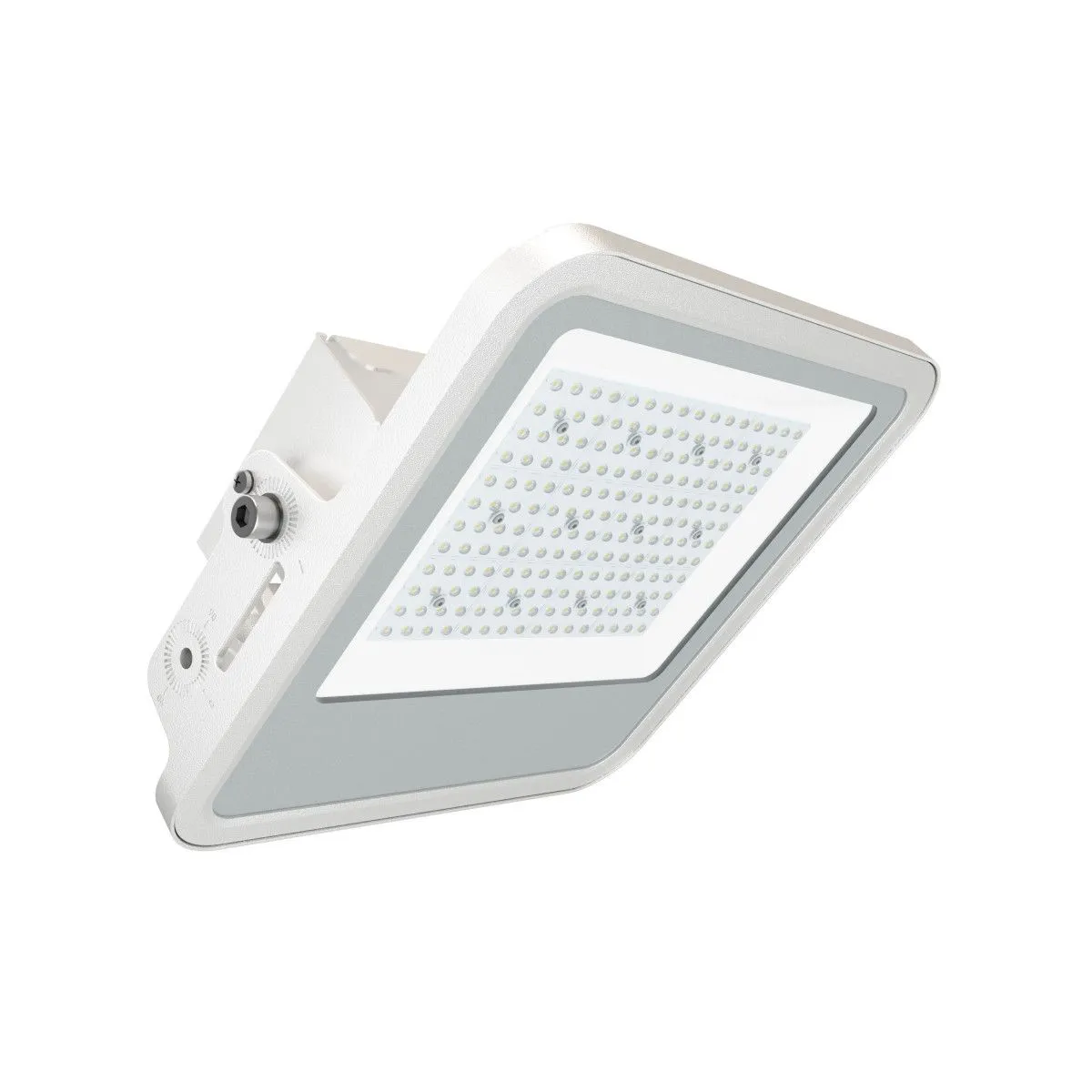

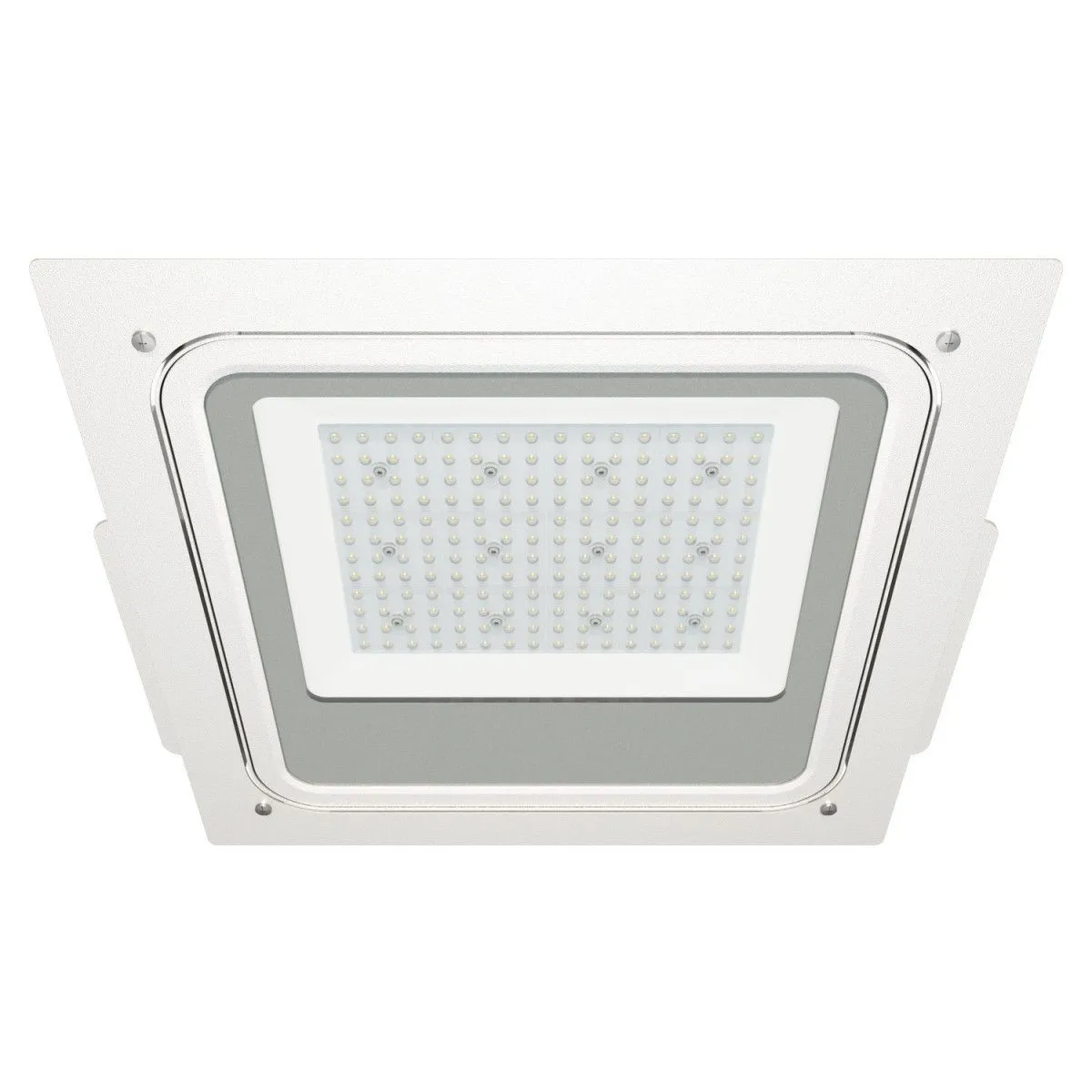

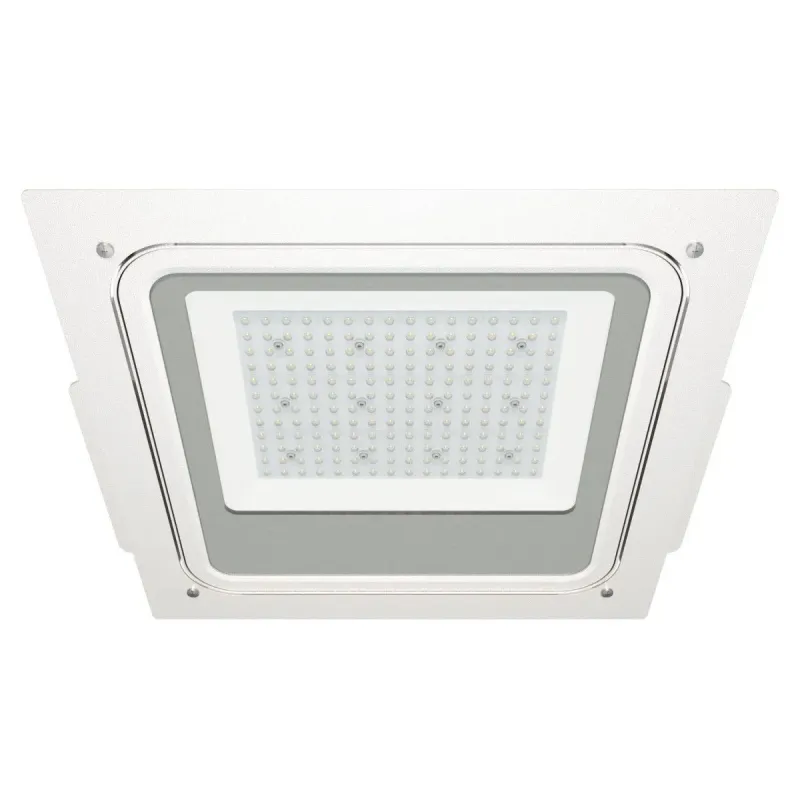

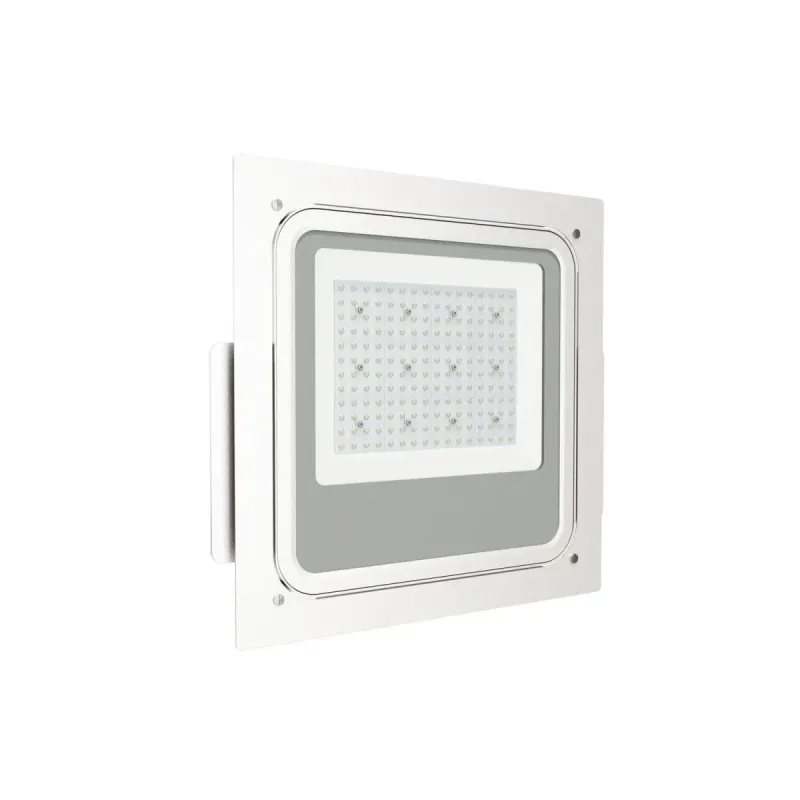

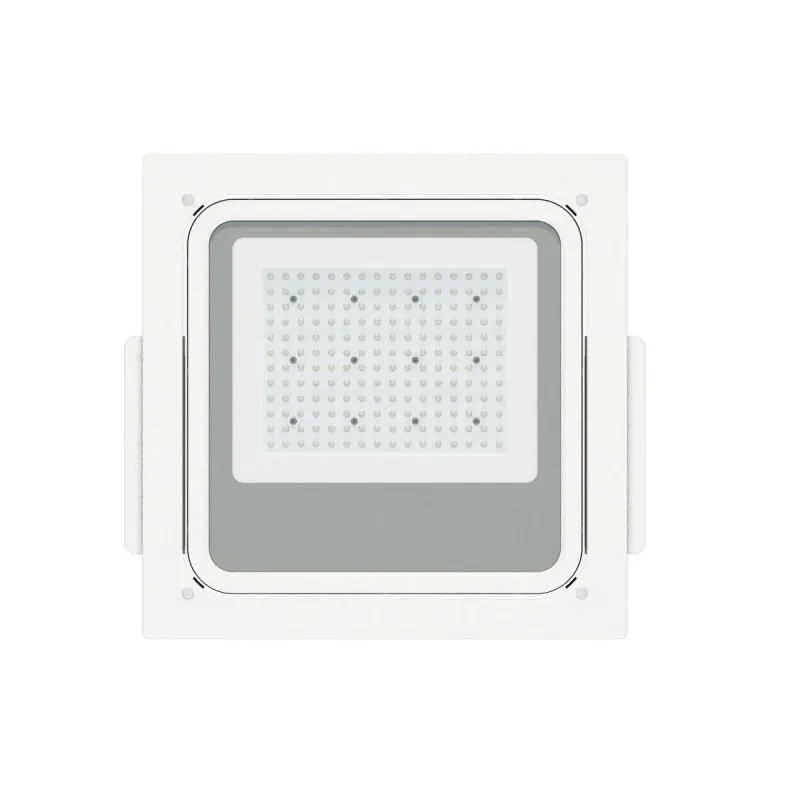

It is the ideal solution for petrol-station canopies, service stations, refineries, chemical plants and warehouses with dust or gas presence. It allows surface mounting with a bracket or recessed mounting with a frame, adapting to each installation.

Installation at a height of 4 to 6 metres is recommended for optimal light distribution.

Key benefits of the LED Floodlight ATEX 100W for petrol stations

• ATEX certification for zones 1, 2, 21 and 22.
• 16,000 lm with 160 lm/W efficacy.
• Lumileds 3030 chip and highly reliable Inventronics driver.
• IP66 and IK10 protection plus 10 kV surge protection.
• Versatile surface or recessed mounting.
• 50,000-hour lifespan with low maintenance.

Highlighted specifications of the LED Floodlight ATEX 100W for petrol stations

Power: 100W; Luminous flux: 16,000 lm; Efficacy: 160 lm/W; Colour temperature: 5700K; Beam angle: 120°; Protection: IP66 / IK10; Chip: Lumileds 3030; Driver: Inventronics; Voltage: 100-240V AC; Power factor: 0.95; Surge protection: 10 kV; Lifespan: 50,000 h; Warranty: 5 years.

Installation and maintenance of the LED Floodlight ATEX 100W for petrol stations

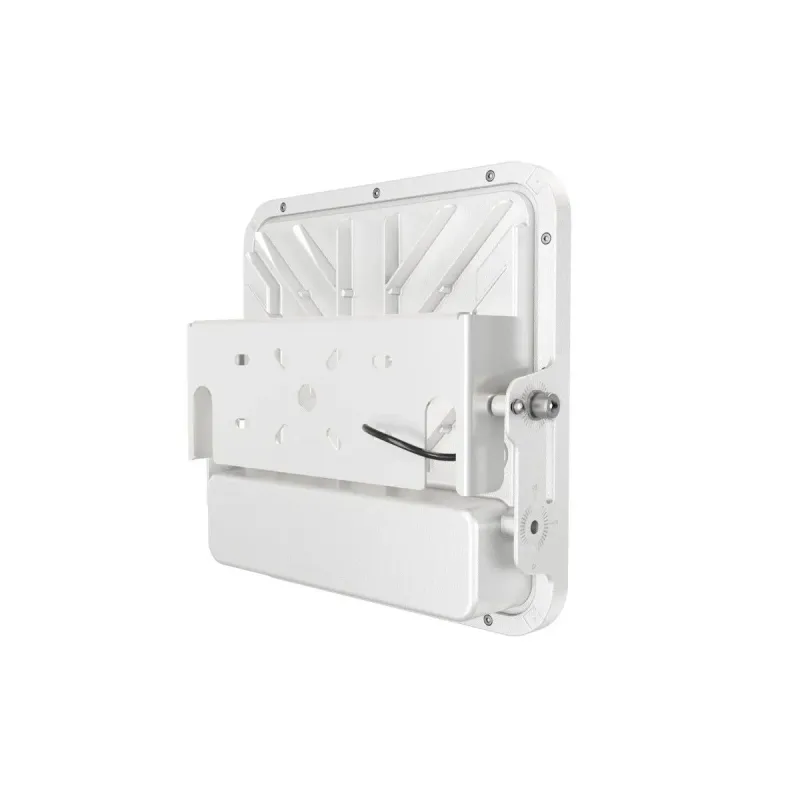

It is surface-mounted with a bracket or recessed with a frame, at a recommended height of 4-6 metres. Before any work, disconnect the power supply and check the sealing to keep the IP66 rating and ATEX safety.

100W ATEX floodlight, IP66/IK10, with Lumileds chip and Inventronics driver.

Distributed in Spain by Ibérica de Iluminación, with a 5-year warranty, ATEX and RoHS certification and estimated 24h shipping subject to stock. Need to light a petrol station or classified area? Add it to your order now.

Frequently asked questions about the LED Floodlight ATEX 100W for petrol stations

Which ATEX zones is it certified for? Zones 1, 2 (gas) and 21, 22 (dust).

Can it be recessed? Yes, it supports surface or recessed mounting.

What luminous flux does it offer? 16,000 lumens with 160 lm/W efficacy.

Which chip and driver does it use? Lumileds 3030 chip and Inventronics driver.

What warranty does it have? 5 years, with ATEX and RoHS certification.
