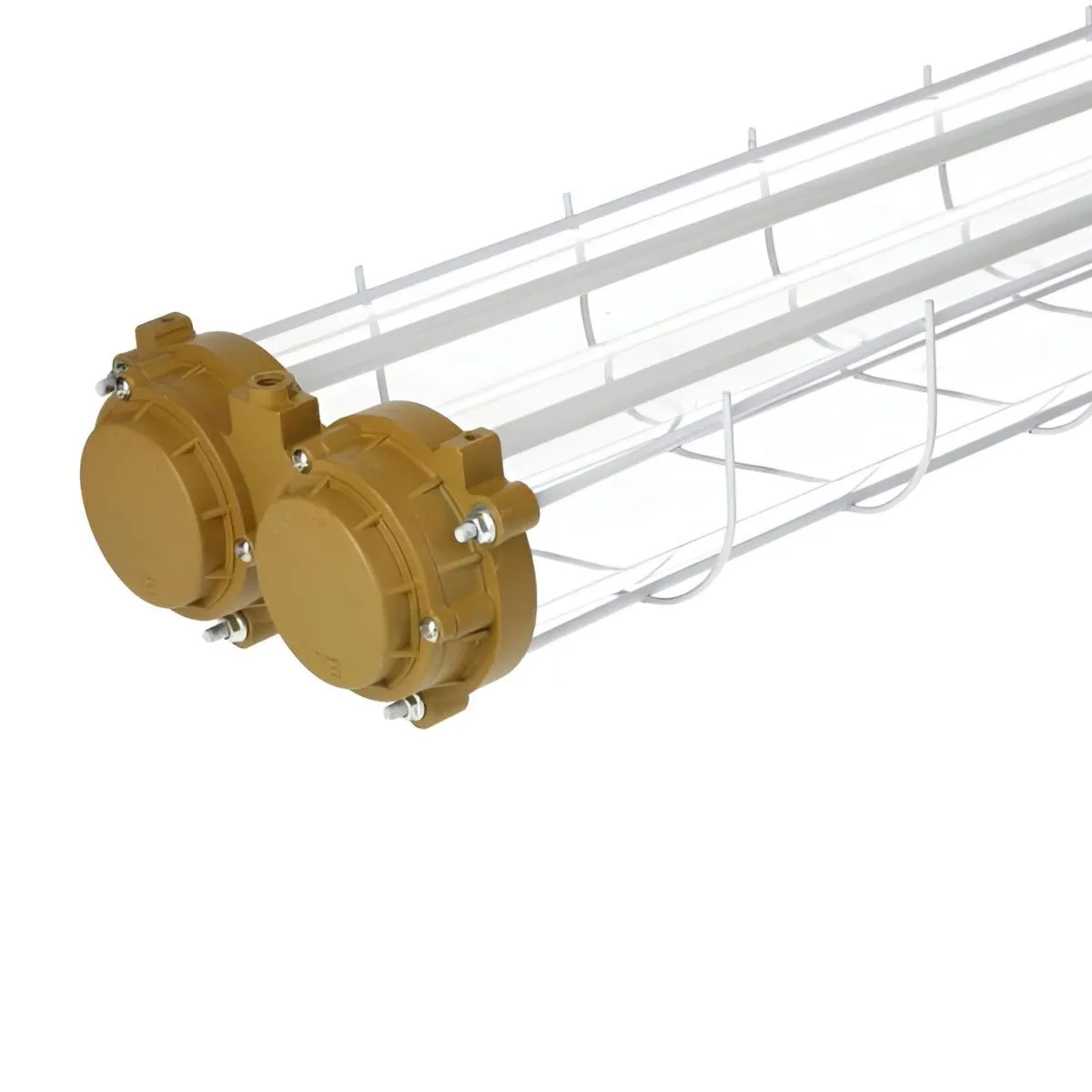

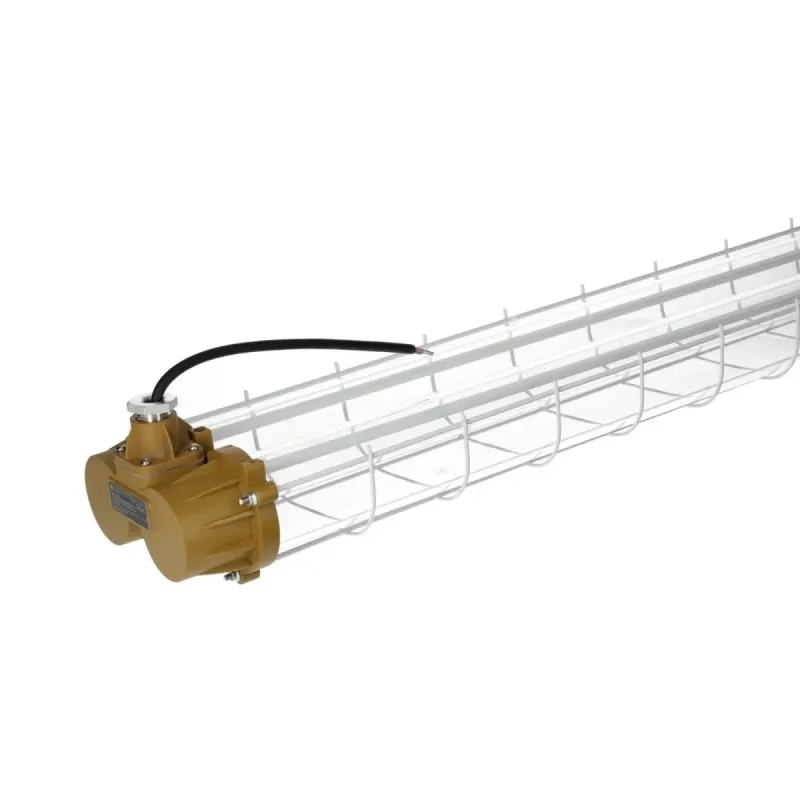

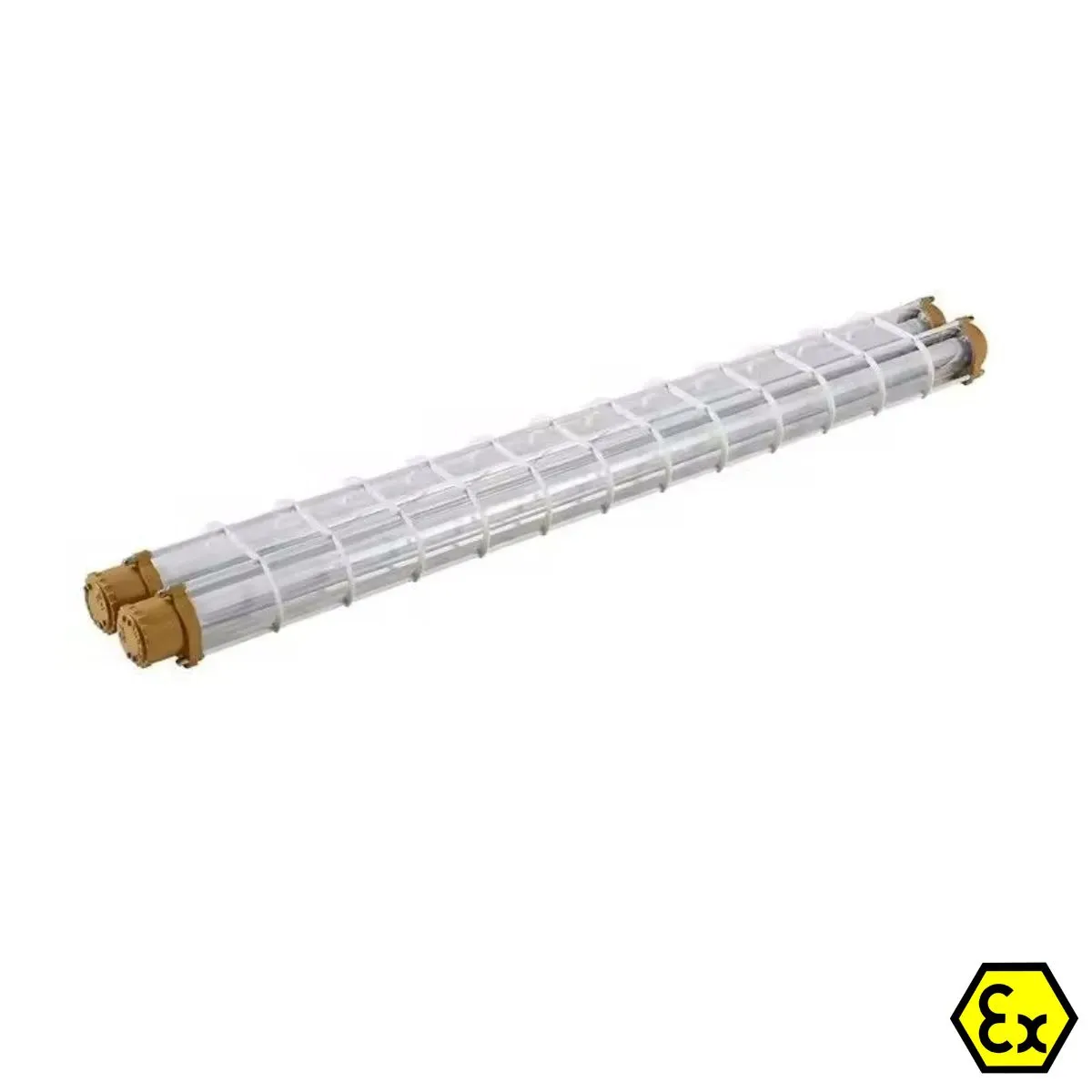

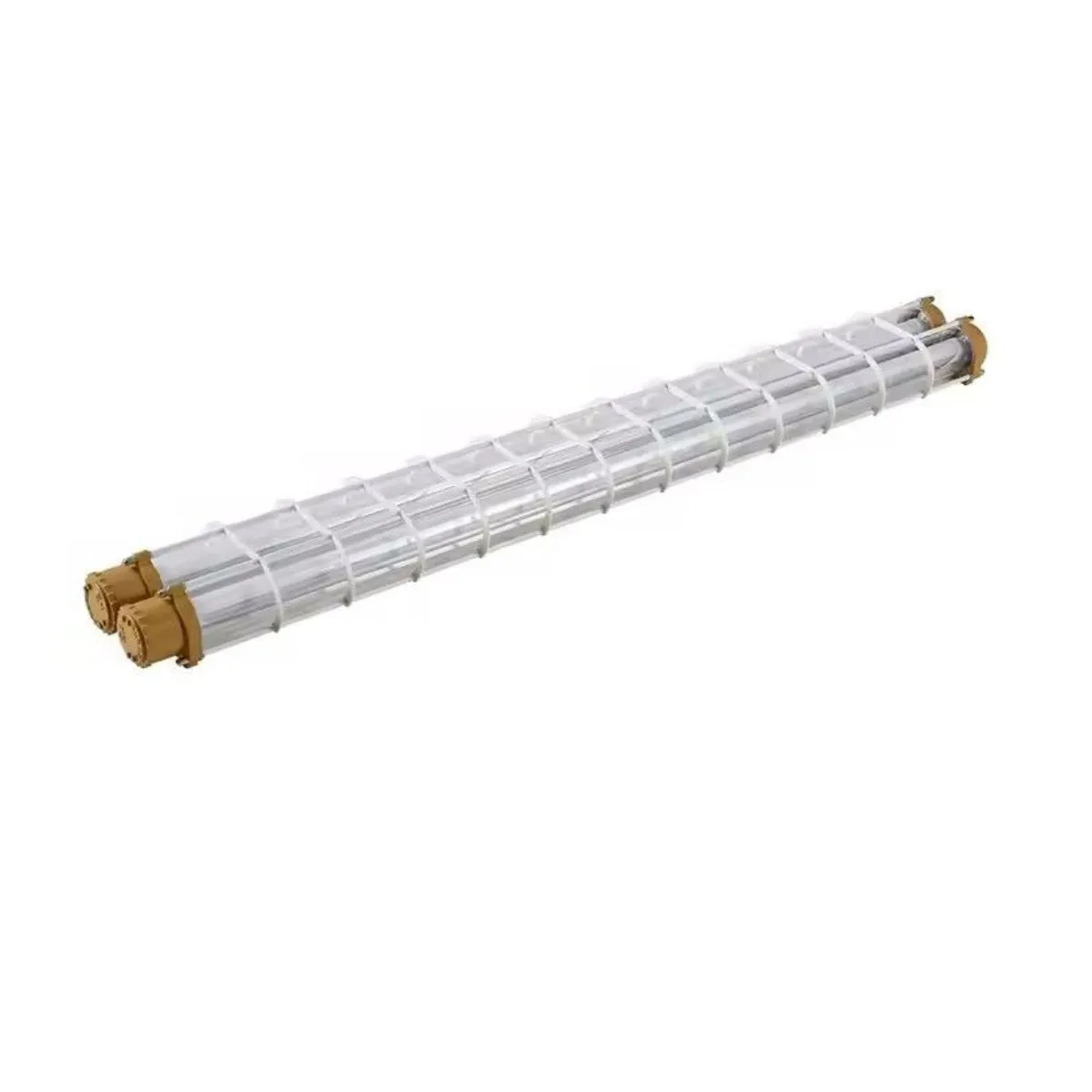

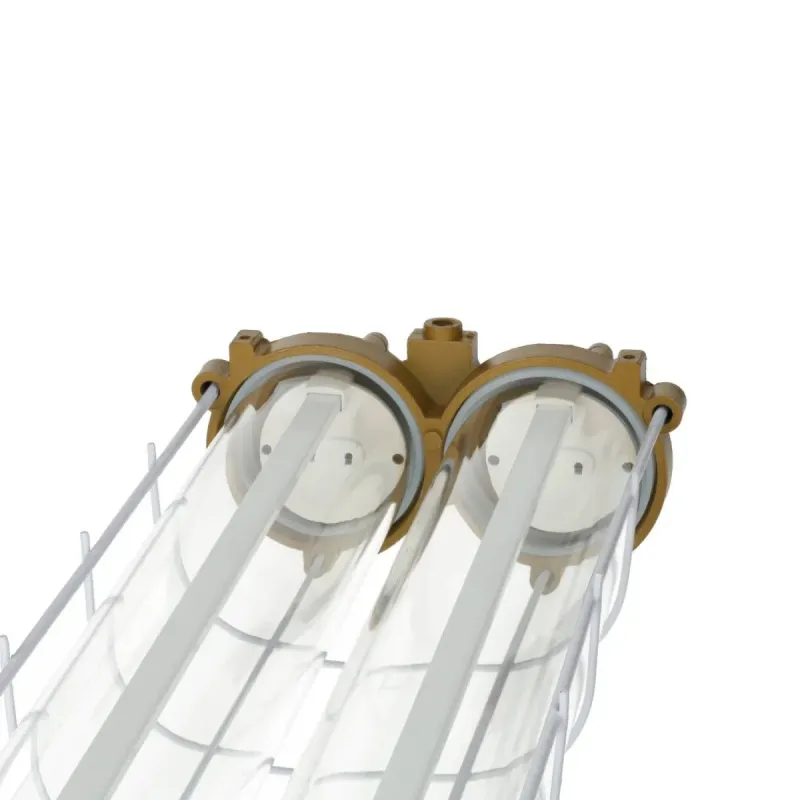

Weatherproof Batten ATEX for 2 LED T8 Tubes 1200mm IP65 Grille

The ATEX Weatherproof Batten for 2 LED T8 tubes 1200mm is an industrial luminaire designed to safely house two 120 cm LED T8 tubes in potentially explosive atmospheres. With IP65 rating, tempered glass and a protective grille, it complies with the ATEX Directive 2014/34/EU and is suitable for zones 1, 2, 21 and 22.

General information about the ATEX Weatherproof Batten for 2 T8 tubes

Built in aluminium and polycarbonate with WF2 anti-corrosion treatment, it features tempered glass and a protective grille against impacts. Its ATEX marking II 2GD Ex d e IIC T6 Gb, DIP A21 TA, T6 IP65 certifies use in flammable gas and dust atmospheres.

It houses two 120 cm LED T8 tubes (not included), with 100-240V AC input (operating 180-240V AC). Aluminium tubes with double-ended connection are recommended.

Use and application of the ATEX Weatherproof Batten for 2 T8 tubes

It is the ideal solution for industrial warehouses, storage areas, chemical plants, car parks and process zones with dust or gas presence. It lets you choose the light output and colour according to the T8 tubes you fit.

It works in a thermal range of -20°C to +40°C and is surface-mounted with its metal bracket.

Key benefits of the ATEX Weatherproof Batten for 2 T8 tubes

• ATEX certification for zones 1, 2, 21 and 22.
• Houses 2 x 120 cm LED T8 tubes.
• Protective grille and tempered glass.
• IP65 protection against dust and water.
• Aluminium and polycarbonate body with WF2 treatment.
• Colour and output of your choice, based on the fitted tubes.

Highlighted specifications of the ATEX Weatherproof Batten for 2 T8 tubes

Compatibility: 2 x 120 cm LED T8 tubes; Voltage: 100-240V AC (operating 180-240V AC); Protection: IP65; Material: aluminium and polycarbonate; Glass: tempered; Grille: protective; Dimensions: 1280 x 117 x 200 mm; Operating range: -20°C to +40°C; Warranty: 5 years.

Installation and maintenance of the ATEX Weatherproof Batten for 2 T8 tubes

It is surface-mounted with its metal bracket and the T8 tubes are connected at both ends. Before any work, disconnect the power supply and check the sealing to keep the IP65 rating and ATEX safety.

ATEX luminaire for 2 LED T8 tubes, IP65, with protective grille.

Distributed in Spain by Ibérica de Iluminación, with a 5-year warranty, ATEX and RoHS certification and estimated 24h shipping subject to stock. Need to light a classified area? Add it to your order now.

Frequently asked questions about the ATEX Weatherproof Batten for 2 T8 tubes

Does it include the LED tubes? No, it houses 2 x 120 cm LED T8 tubes purchased separately.

Which ATEX zones is it certified for? Zones 1, 2 (gas) and 21, 22 (dust).

What voltage does it need? 100-240V AC, operating at 180-240V AC.

Does it have a grille? Yes, it includes a protective grille and tempered glass.

What warranty does it have? 5 years, with ATEX and RoHS certification.
