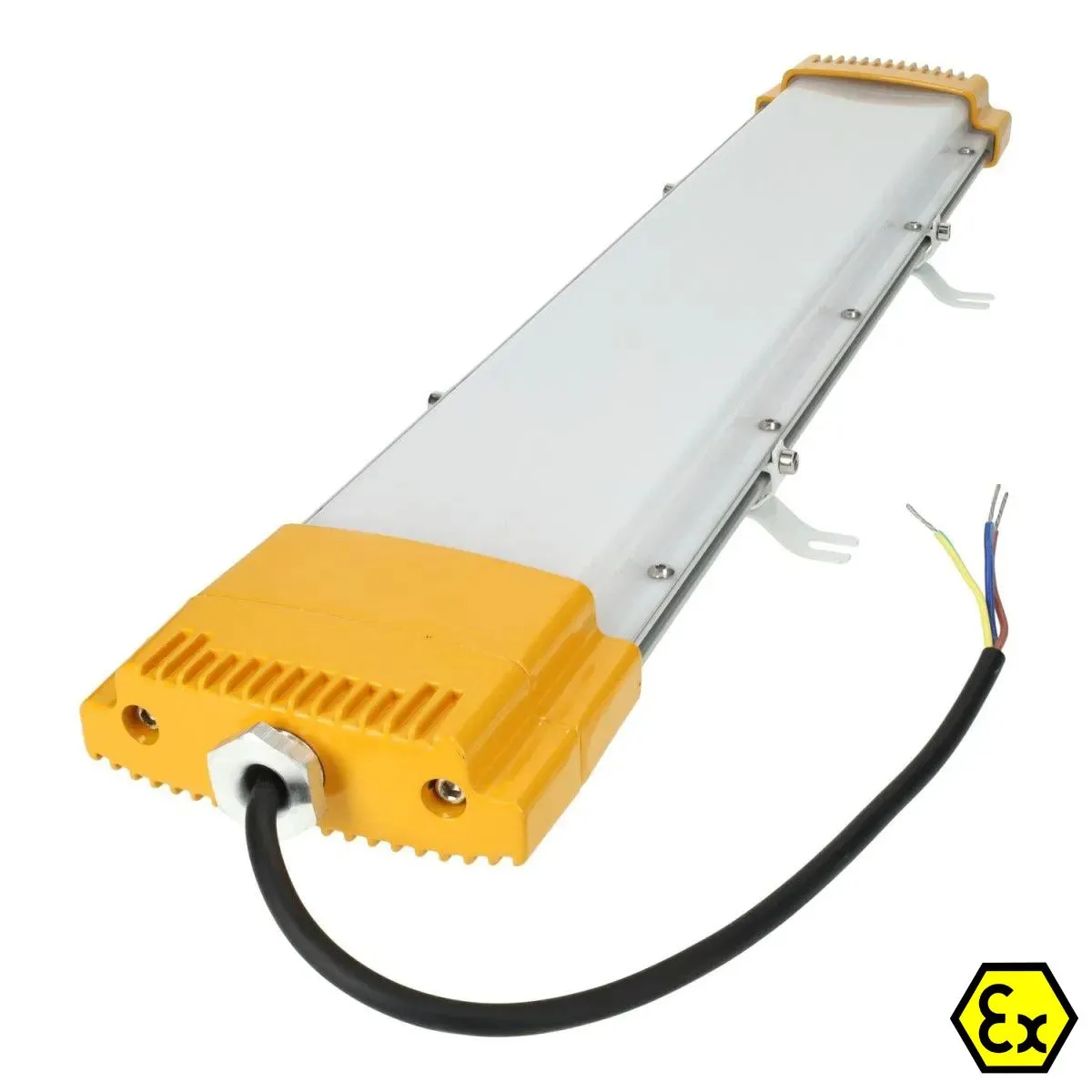

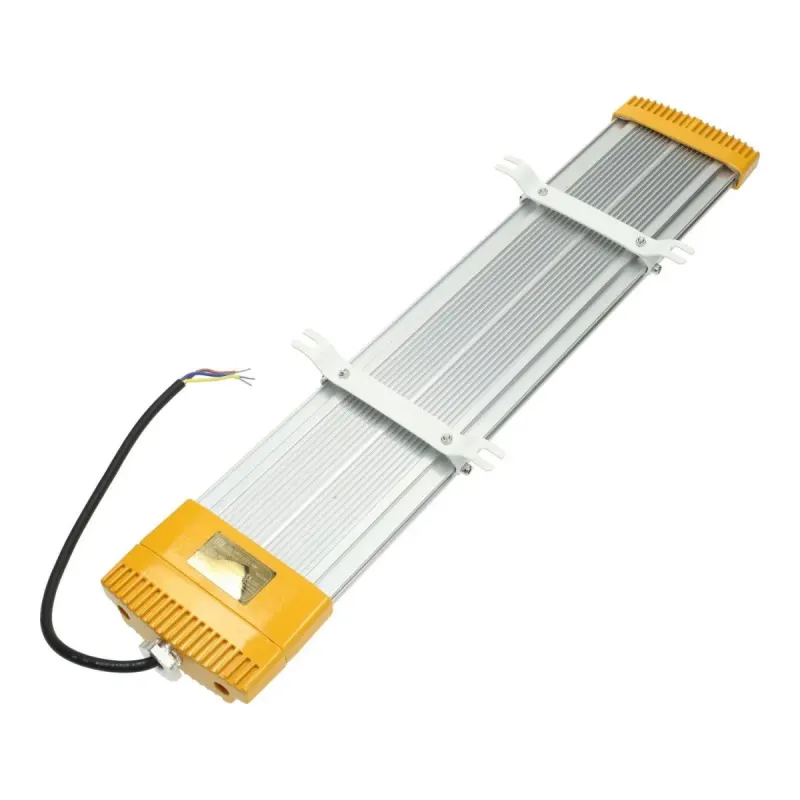

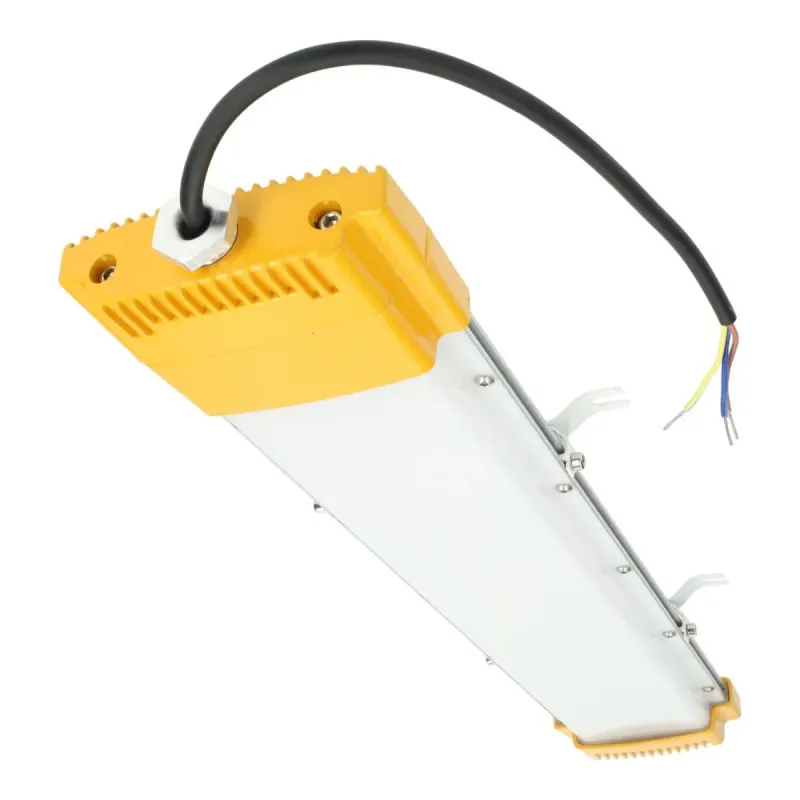

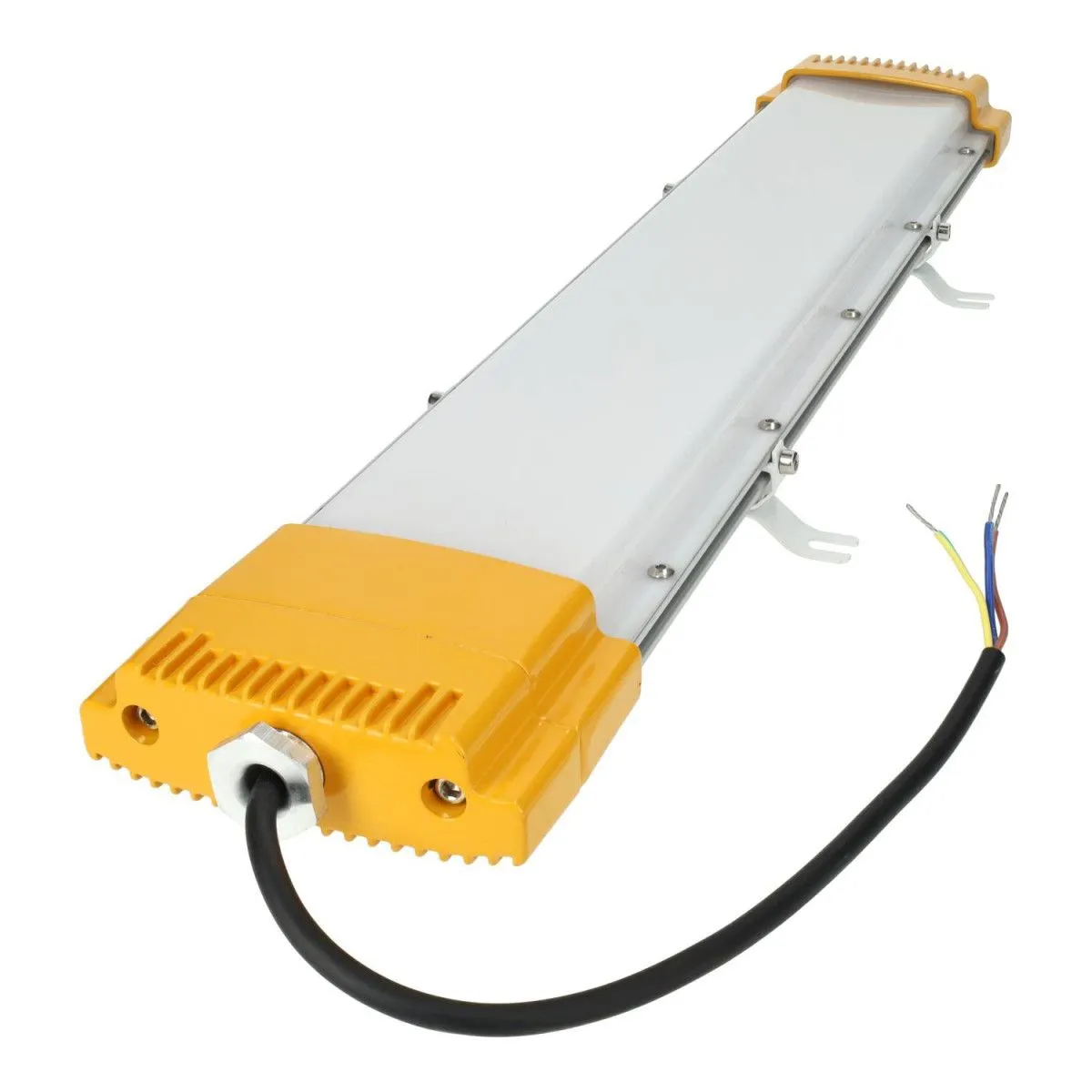

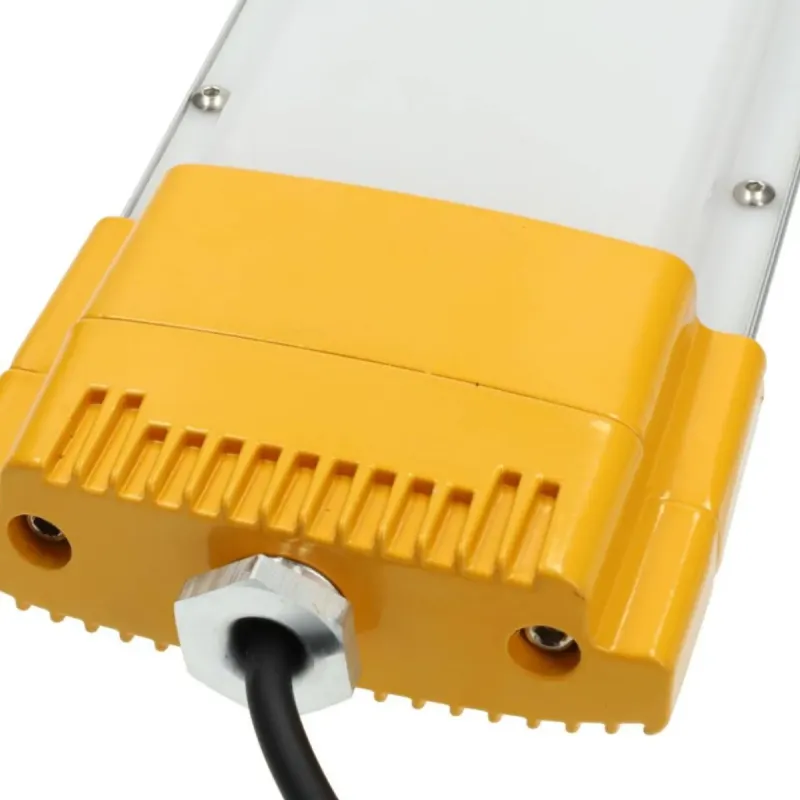

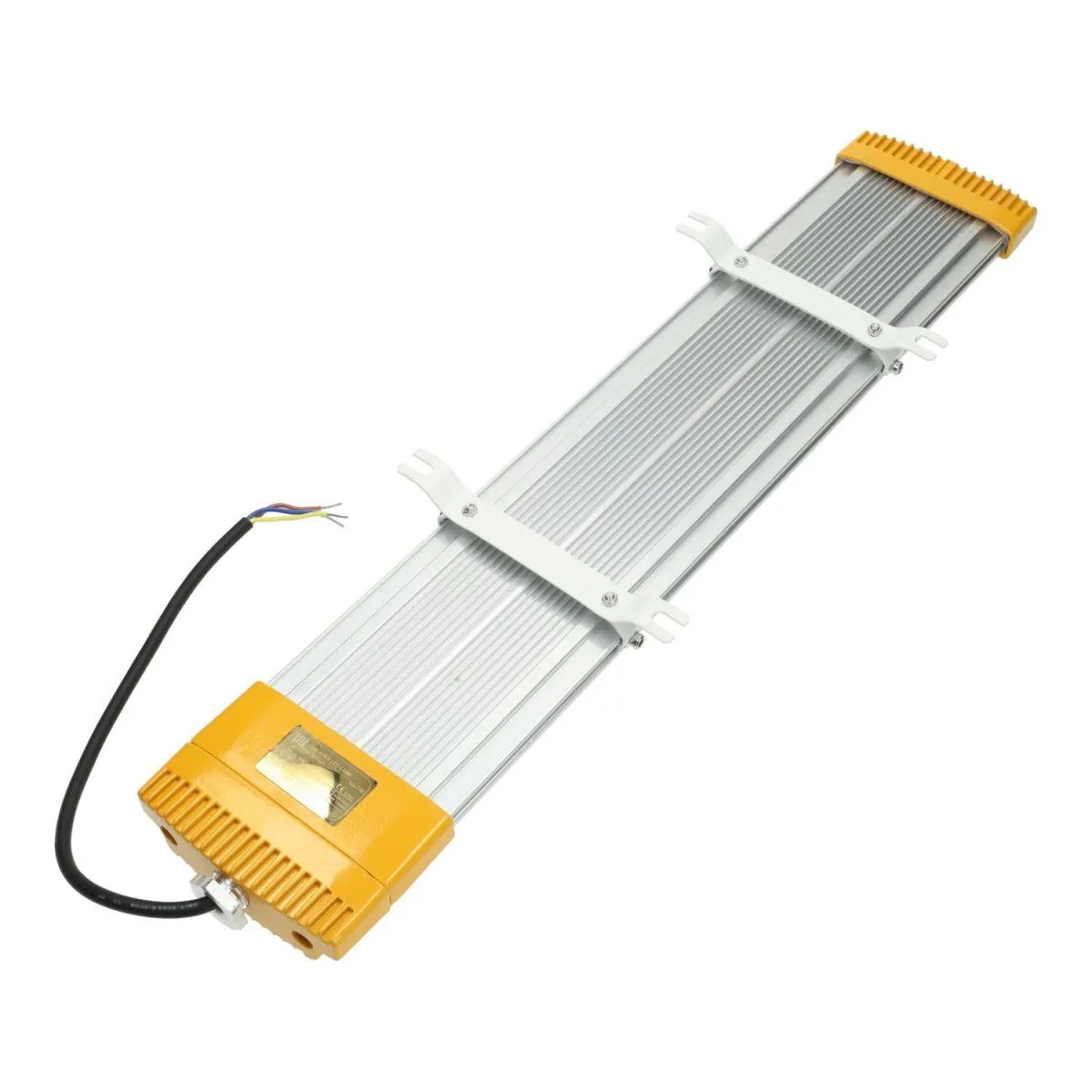

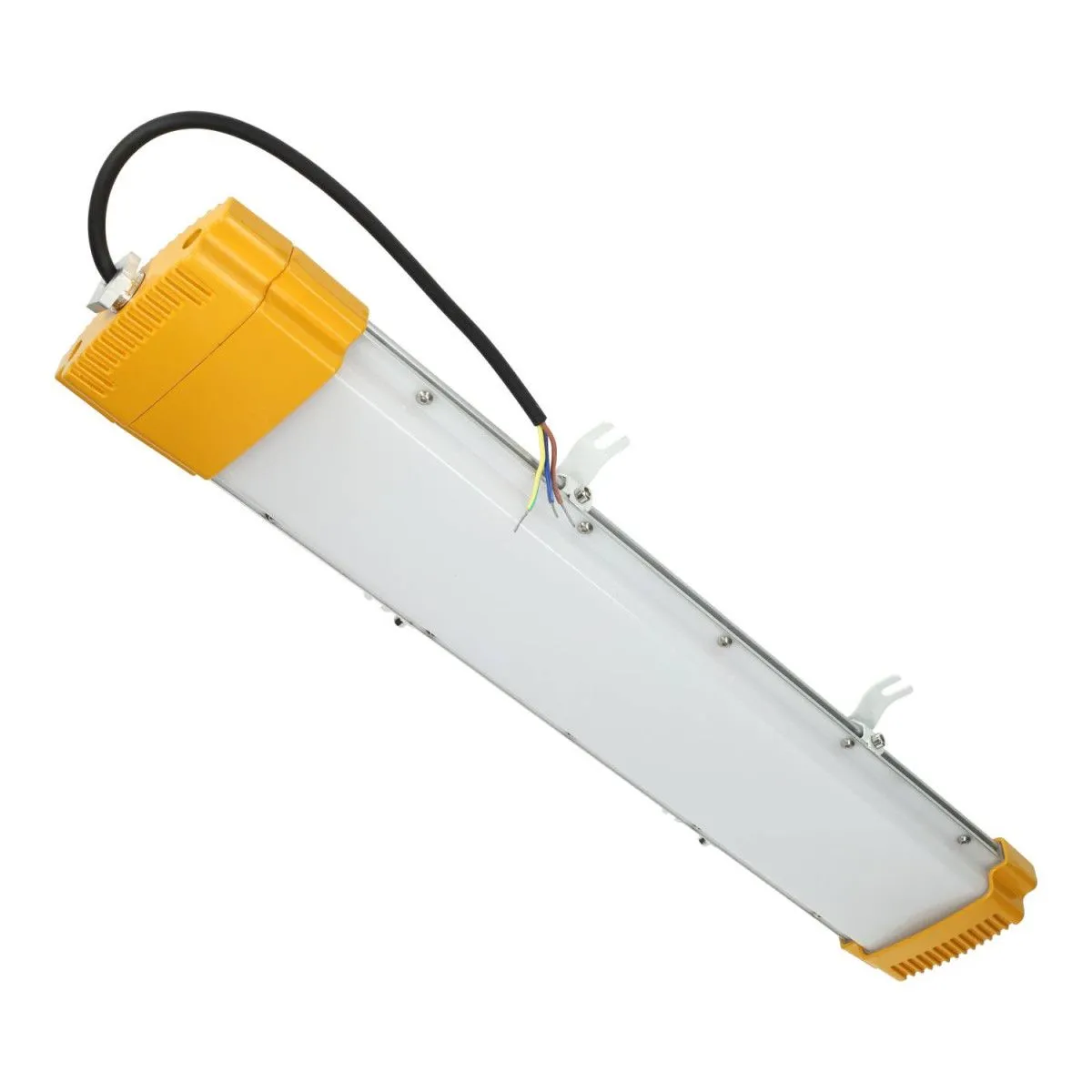

LED Weatherproof Batten ATEX SLIM 50W 1200mm IP65 OSRAM Chip

The LED Weatherproof Batten ATEX SLIM 50W 1200mm is a linear luminaire designed to safely light warehouses and facilities with potentially explosive atmospheres. With 5,000 lumens, a SLIM profile and IP65 rating, it complies with the ATEX Directive 2014/34/EU and is suitable for zones 1, 2, 21 and 22.

General information about the LED Weatherproof Batten ATEX SLIM 50W

Built in aluminium and PVC with anti-corrosion electrostatic paint and WF2 treatment, it offers IP65 and IK10 protection. It integrates an OSRAM SMD chip and its ATEX marking II 2GD Ex d e IIC T6 Gb, DIP A21 TA, T6 IP65 certifies use in flammable gas and dust atmospheres.

It delivers 5,000 lm with an efficacy of 100 lm/W, 6000K colour temperature (cool white), 0.98 power factor and 85-265V AC input. Its opal diffuser provides uniform light and its lifespan reaches 35,000 hours.

Use and application of the LED Weatherproof Batten ATEX SLIM 50W

It is the ideal solution for industrial warehouses, storage areas, car parks, chemical plants and process zones with dust or gas presence. Its 1200mm linear format lights aisles and work lines continuously.

It works in a thermal range of -25°C to +45°C and is surface-mounted with metal brackets, closed with a hex key for safe maintenance.

Key benefits of the LED Weatherproof Batten ATEX SLIM 50W

• ATEX certification for zones 1, 2, 21 and 22.
• 5,000 lm with 100 lm/W efficacy.
• Highly reliable OSRAM SMD chip.
• IP65 and IK10 protection against dust, water and impacts.
• Aluminium and PVC body with anti-corrosion paint.
• 35,000-hour lifespan with low maintenance.

Highlighted specifications of the LED Weatherproof Batten ATEX SLIM 50W

Power: 50W; Luminous flux: 5,000 lm; Efficacy: 100 lm/W; Colour temperature: 6000K; Beam angle: 120°; Protection: IP65 / IK10; Chip: OSRAM SMD; Voltage: 85-265V AC; Power factor: 0.98; Dimensions: 1245 x 165 x 35 mm; Lifespan: 35,000 h; Warranty: 5 years.

Installation and maintenance of the LED Weatherproof Batten ATEX SLIM 50W

It is surface-mounted with its metal brackets and closed with a hex key (not included). Before any work, disconnect the power supply and check the sealing to keep the IP65 rating and ATEX safety.

50W ATEX linear luminaire, IP65/IK10, with OSRAM chip.

Distributed in Spain by Ibérica de Iluminación, with a 5-year warranty, ATEX and RoHS certification and estimated 24h shipping subject to stock. Need to light a classified area? Add it to your order now.

Frequently asked questions about the LED Weatherproof Batten ATEX SLIM 50W

Which ATEX zones is it certified for? Zones 1, 2 (gas) and 21, 22 (dust).

How long is it? 1200mm (1245mm overall).

Is it dimmable? No, it runs at a fixed 50W.

Which chip does it use? OSRAM SMD chip.

What warranty does it have? 5 years, with ATEX and RoHS certification.
