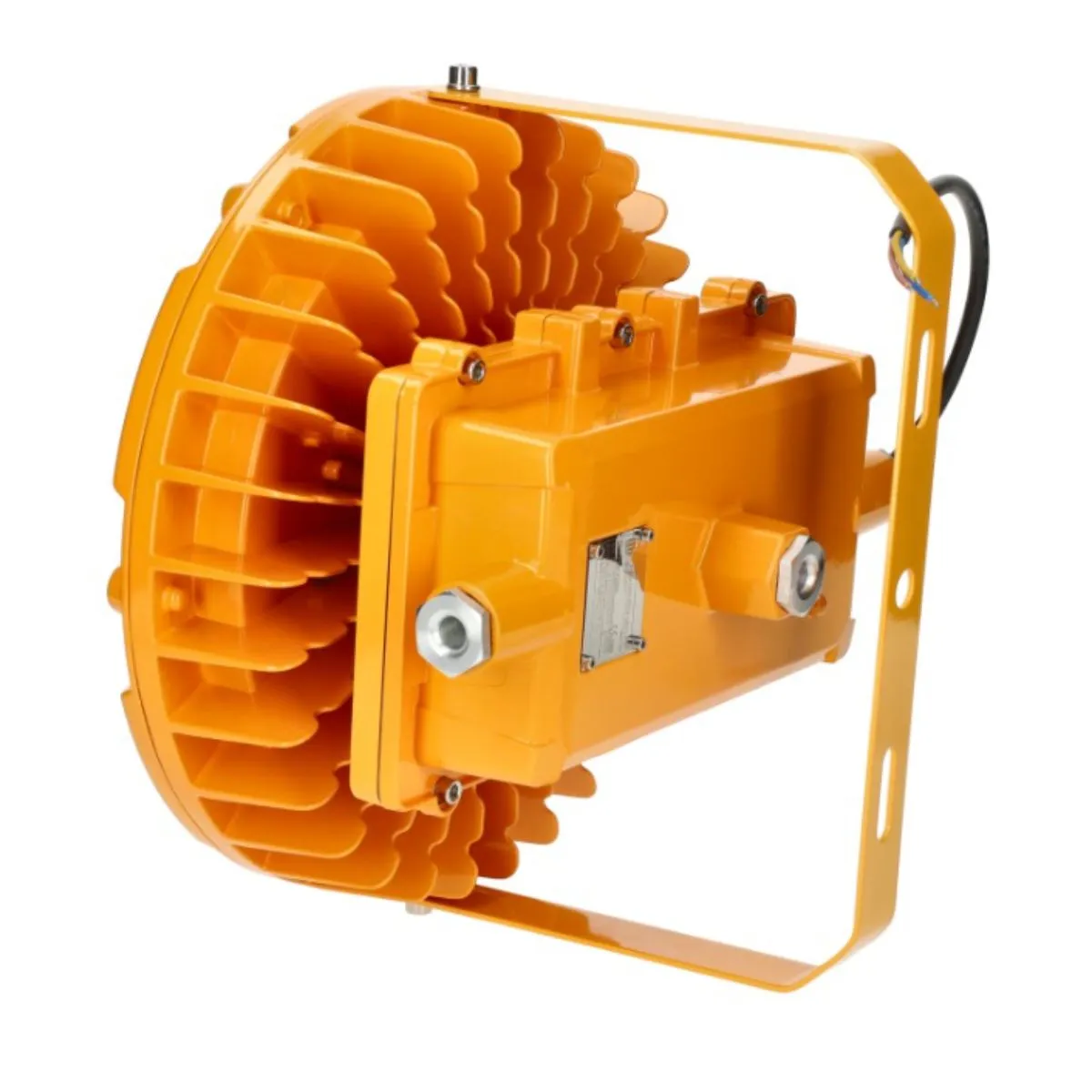

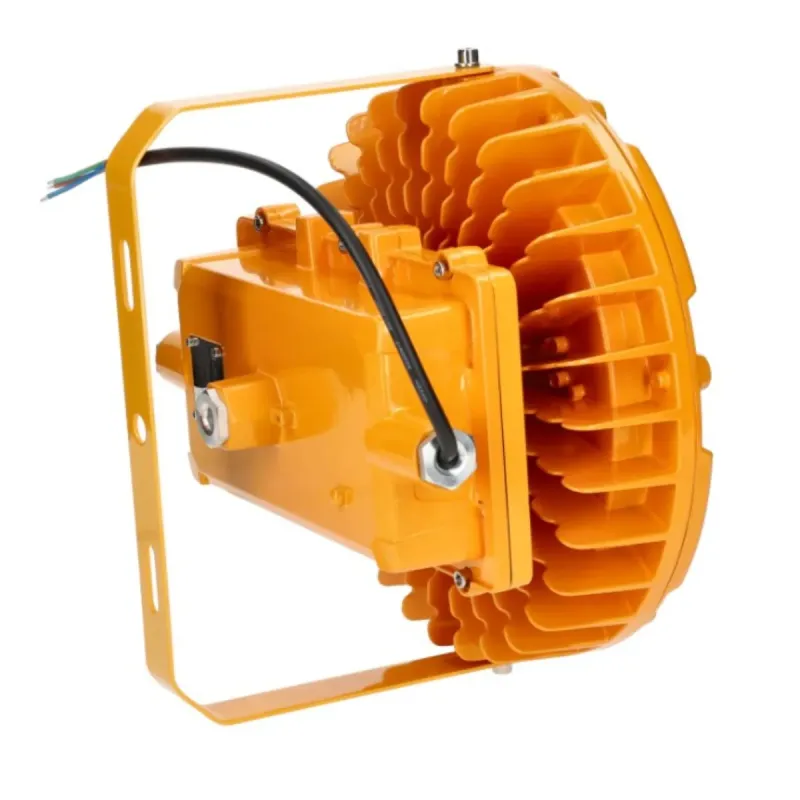

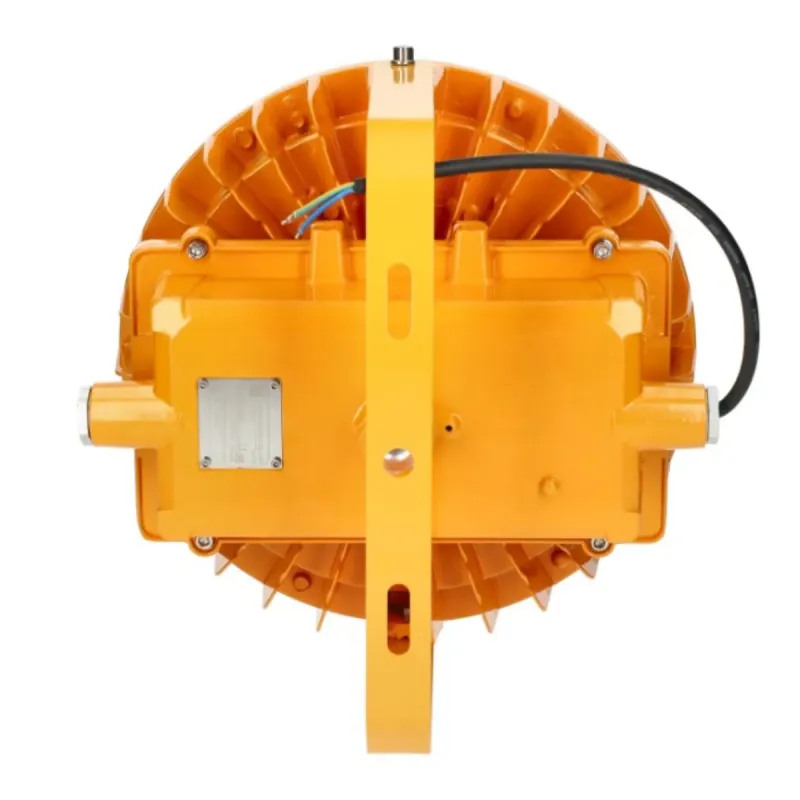

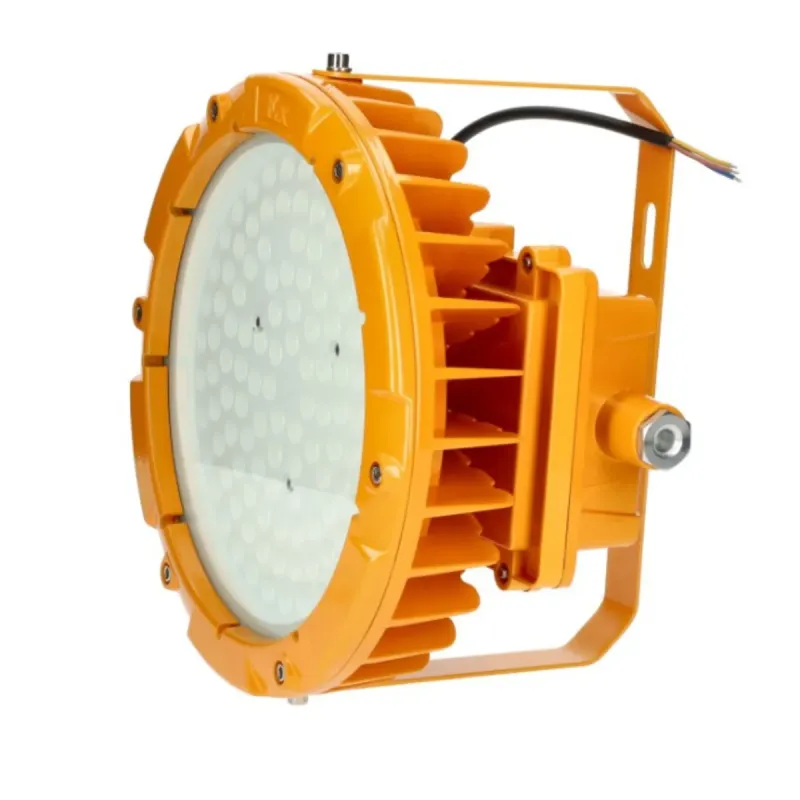

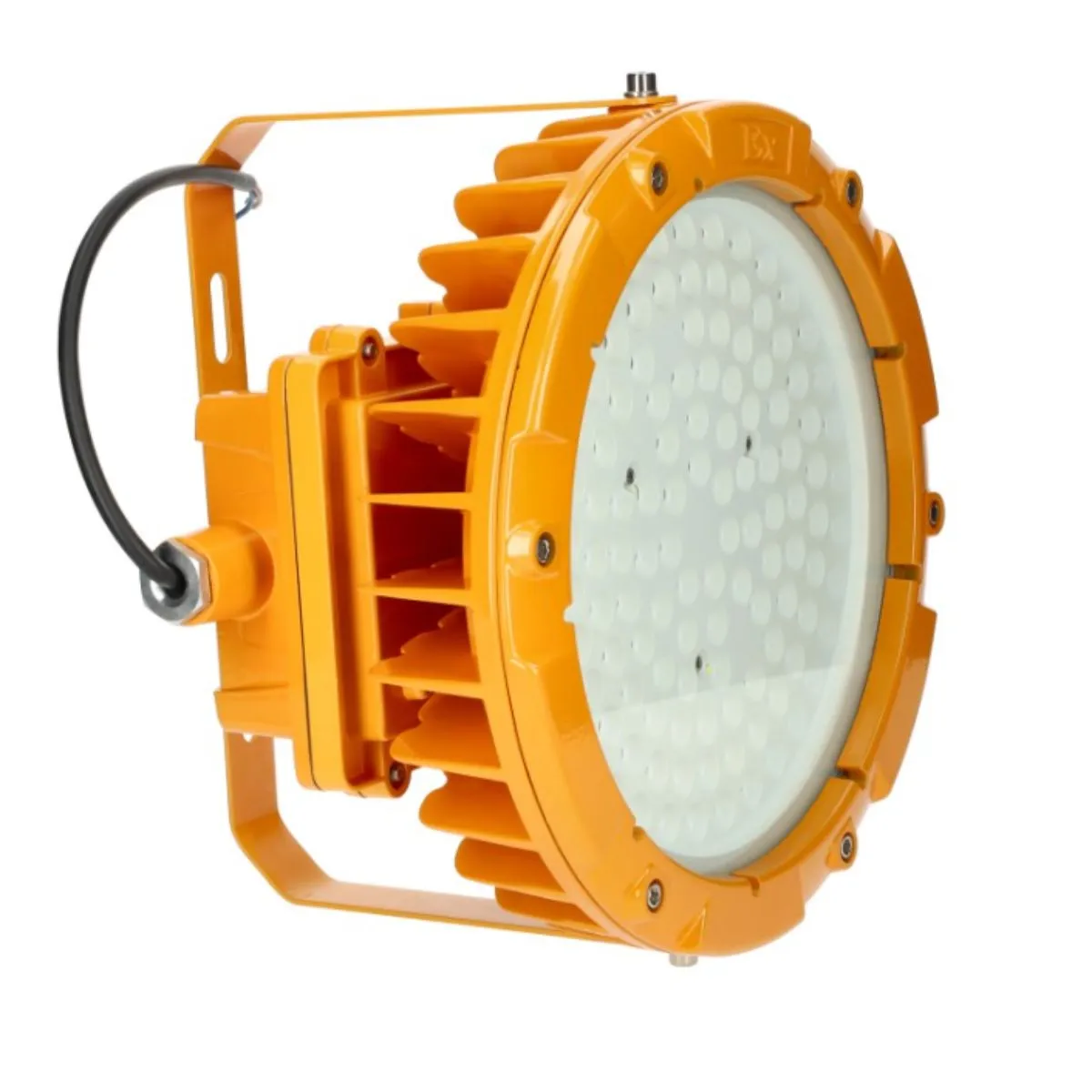

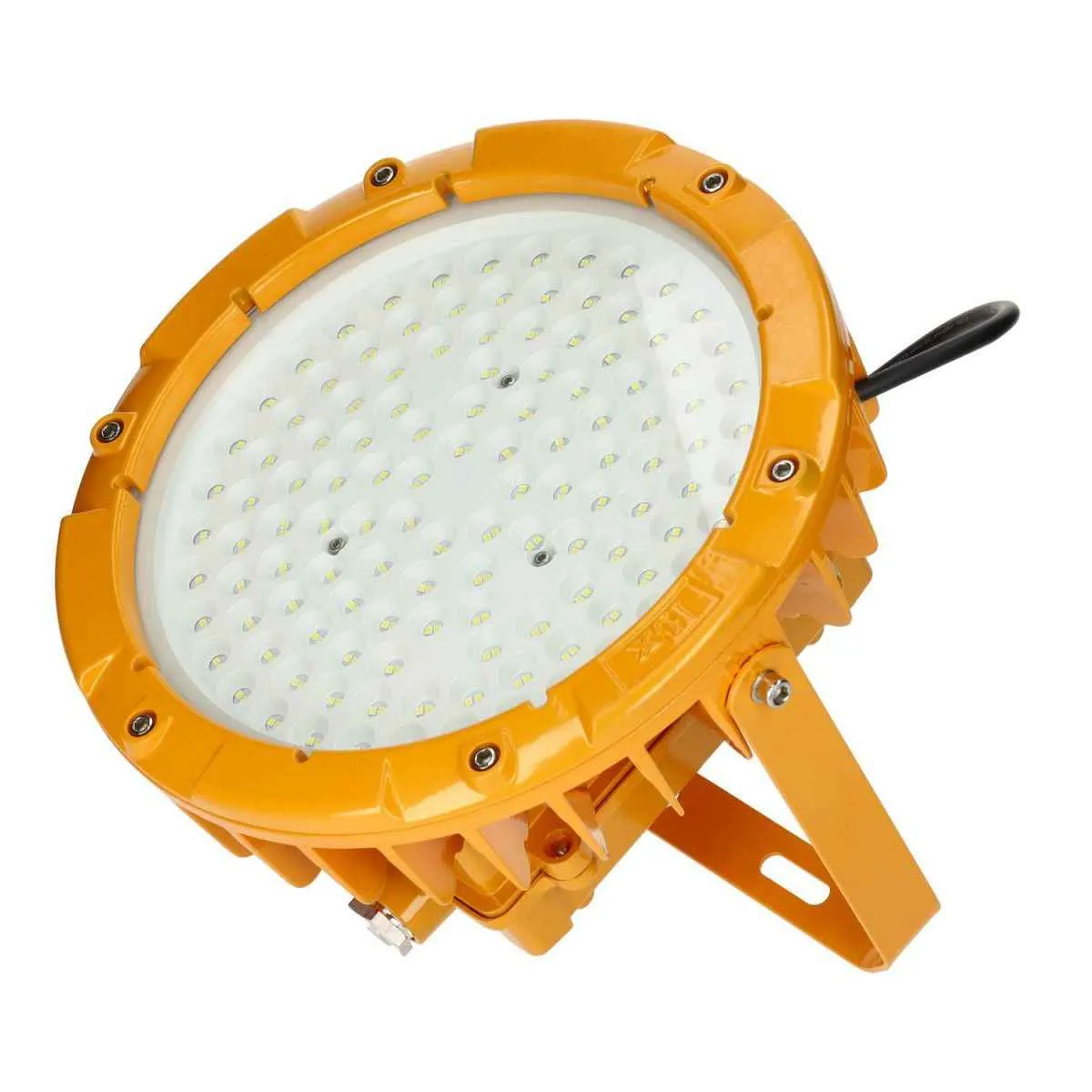

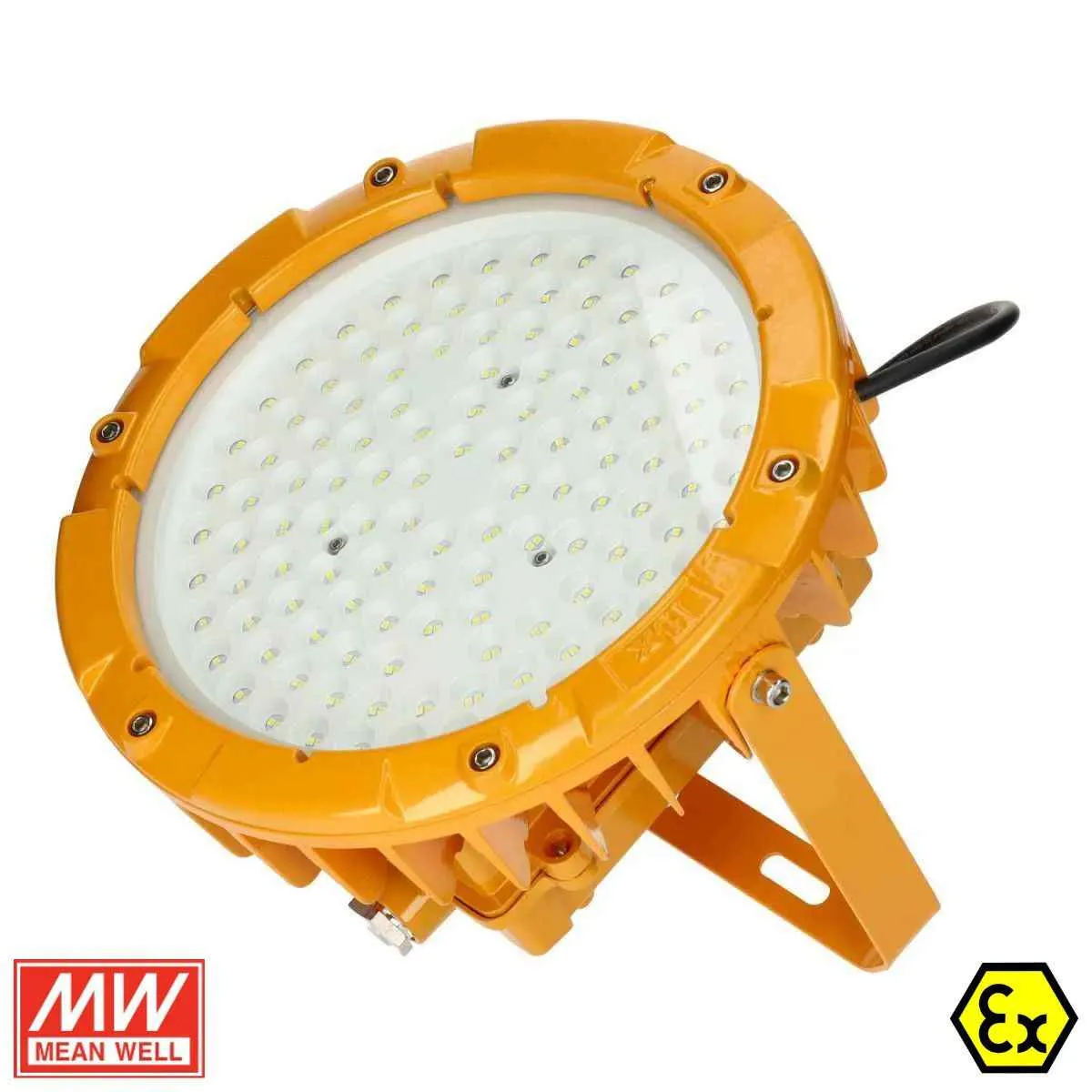

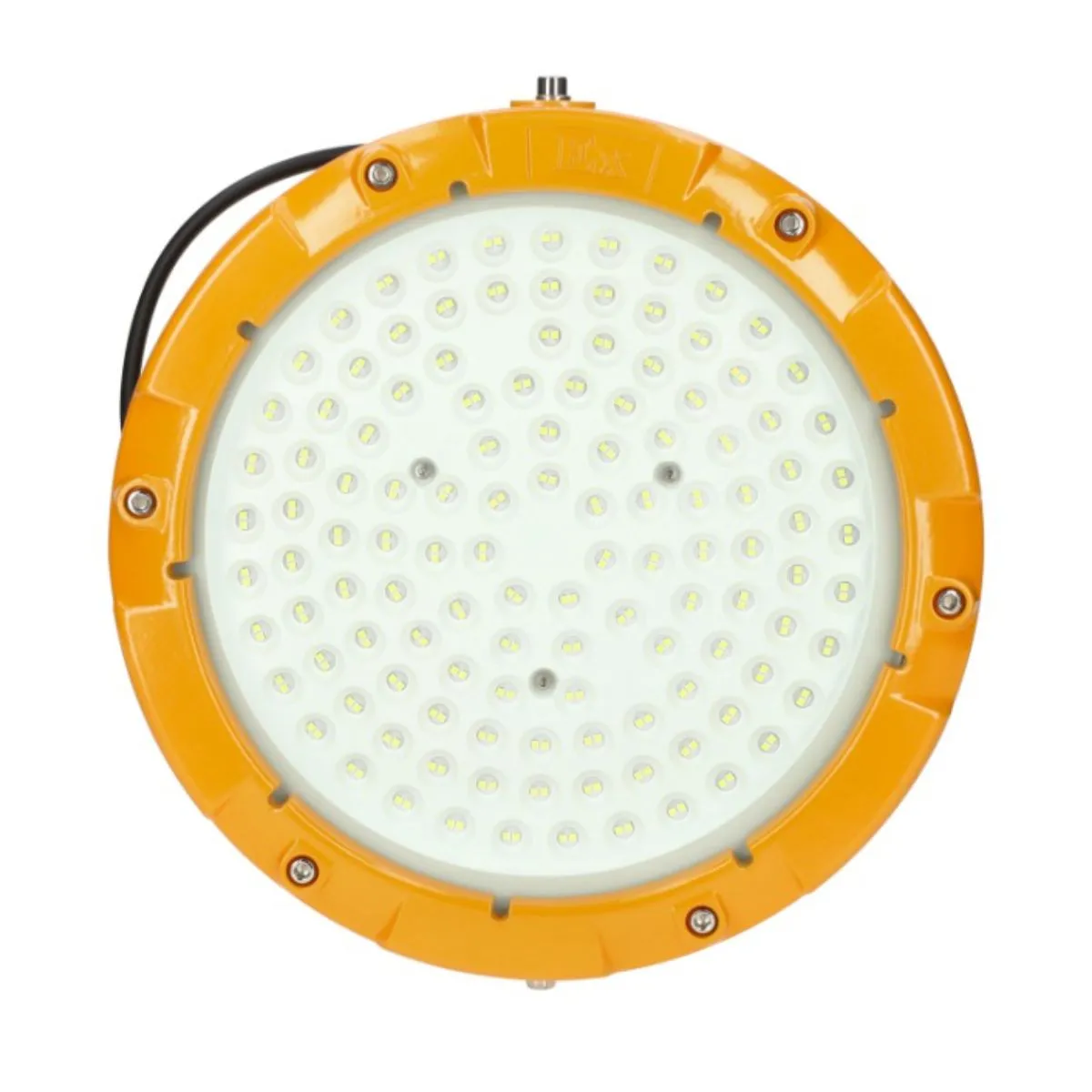

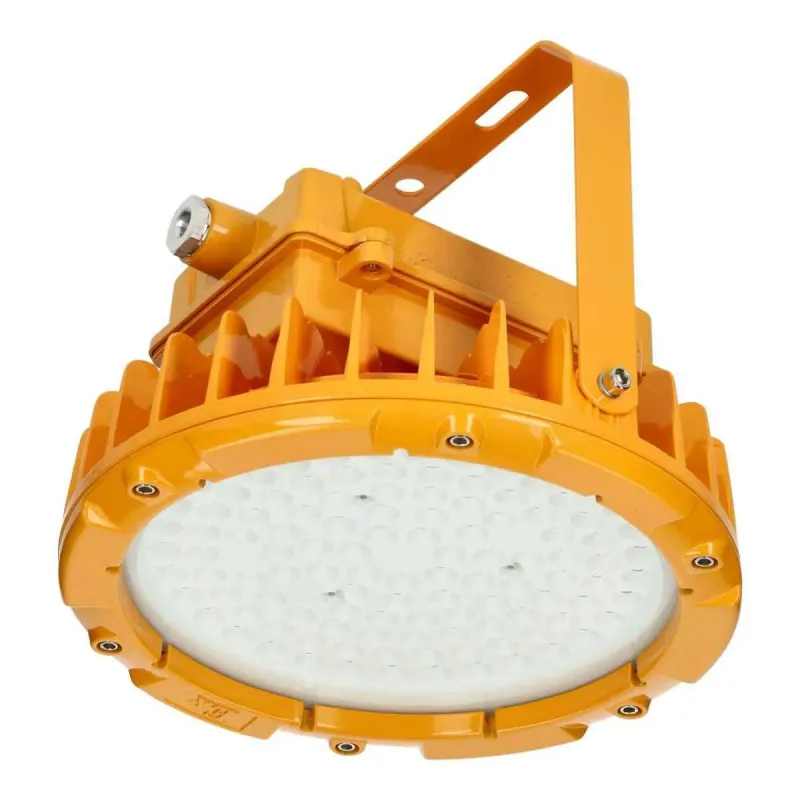

UFO LED High Bay ATEX 200W 120° IP66 LUMILEDS Chip MEAN WELL

The UFO LED High Bay ATEX 200W is a high-power industrial luminaire designed to safely light explosive atmospheres. With 22,000 lumens, a 120° optic and IP66 rating, it complies with the ATEX Directive 2014/34/EU and is suitable for zones 1, 2, 21 and 22.

General information about the UFO LED High Bay ATEX 200W

Built in aluminium with WF2 anti-corrosion treatment and IP66/IK10 protection, it integrates a Lumileds 3030 chip and a high-end Mean Well driver for stable, long-lasting operation. Its ATEX marking II GD Ex db eb mb IIC T6 Gb, Ex tb IIIC T80°C Db certifies use in flammable gas and dust atmospheres.

It delivers 22,000 lm with an efficacy of 110 lm/W, 6000K colour temperature (cool white), 0.95 power factor and 85-265V input. Its 50,000-hour lifespan minimises maintenance in critical installations.

Use and application of the UFO LED High Bay ATEX 200W

It is the ideal solution for refineries, chemical plants, hangars, silos, loading terminals and warehouses with dust or gas presence. Its 120° optic spreads light evenly at great heights.

It works in a thermal range of -20°C to +40°C and replaces traditional metal-halide floodlights with far higher consumption, drastically cutting the electricity bill.

Key benefits of the UFO LED High Bay ATEX 200W

• ATEX certification for zones 1, 2, 21 and 22.
• 22,000 real lm with 110 lm/W efficacy.
• Lumileds 3030 chip and highly reliable Mean Well driver.
• IP66 and IK10 protection against dust, water and impacts.
• Aluminium body with WF2 anti-corrosion treatment.
• 50,000-hour lifespan with low maintenance.

Highlighted specifications of the UFO LED High Bay ATEX 200W

Power: 200W; Luminous flux: 22,000 lm; Efficacy: 110 lm/W; Colour temperature: 6000K; Beam angle: 120°; Protection: IP66 / IK10; Chip: Lumileds 3030; Driver: Mean Well; Voltage: 85-265V; Power factor: 0.95; Dimensions: 305 x 235 mm; Lifespan: 50,000 h; Warranty: 5 years.

Installation and maintenance of the UFO LED High Bay ATEX 200W

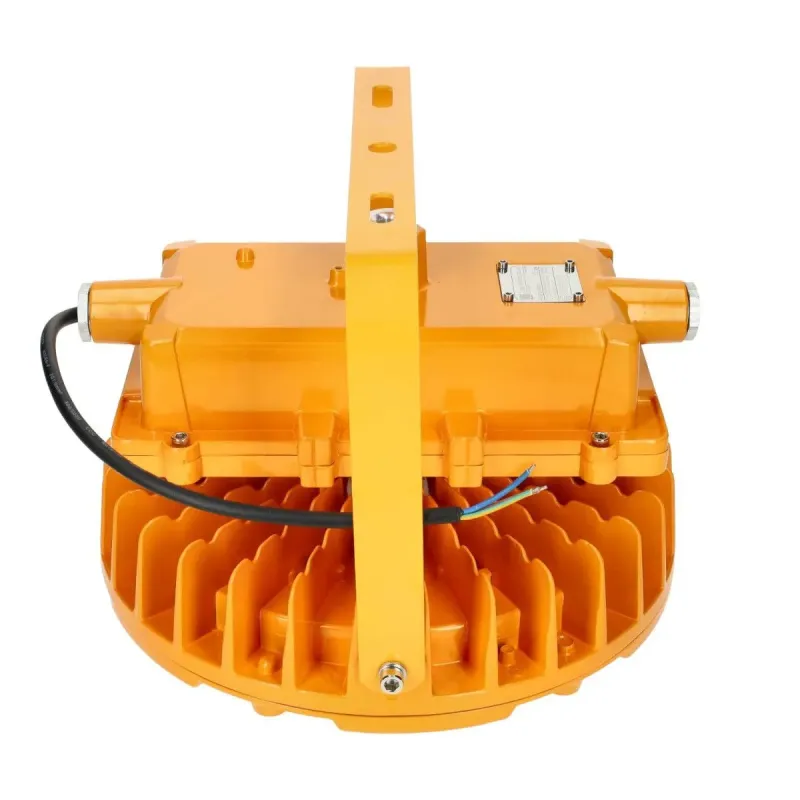

It is suspension-mounted at height using its top hook. Before any work, disconnect the power supply and check that the cable glands are properly sealed to keep the IP66 rating and ATEX safety.

200W ATEX luminaire, IP66/IK10, with Lumileds chip and Mean Well driver.

Distributed in Spain by Ibérica de Iluminación, with a 5-year warranty, ATEX and RoHS certification and estimated 24h shipping subject to stock. Need to light a classified area? Add it to your order now.

Frequently asked questions about the UFO LED High Bay ATEX 200W

Which ATEX zones is it certified for? Zones 1, 2 (gas) and 21, 22 (dust).

What luminous flux does it offer? 22,000 lumens with 110 lm/W efficacy.

Is it dimmable? No, it runs at a fixed 200W.

Which chip and driver does it use? Lumileds 3030 chip and Mean Well driver.

What warranty does it have? 5 years, with ATEX and RoHS certification.
