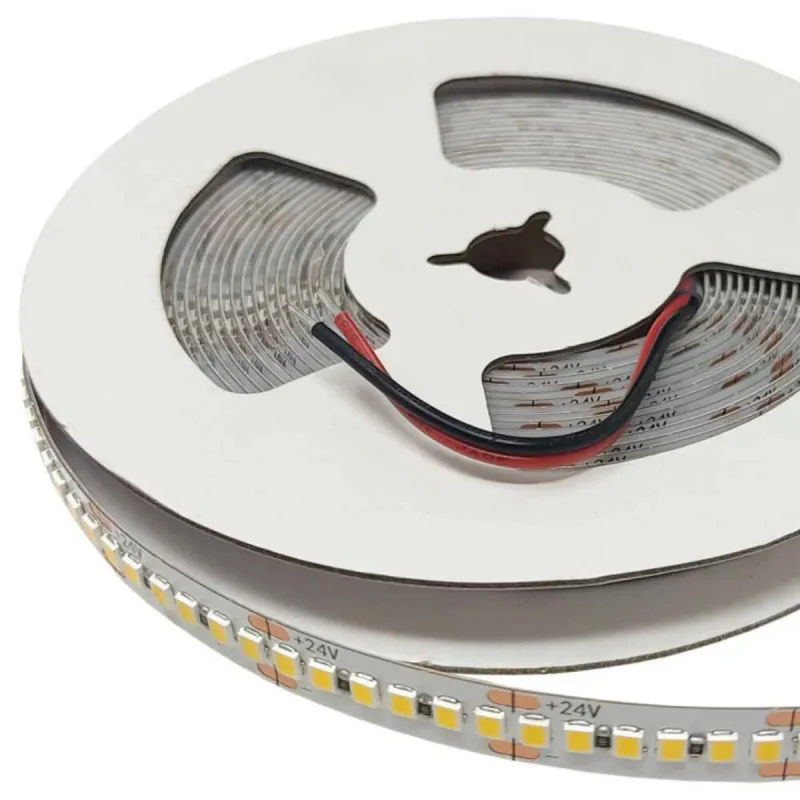

LED Strip 24V 20W/m 238 LED/m SMD2835 14000lm IP20 5m
Are you a professional? Sign up and enjoy special conditions. Learn more
DOCUMENTS
- Guaranteed Lowest Price
- Free shipping on orders over €299
- 100% Secure Payment Methods
- Up to 5 years warranty
The LED Strip 24V 20W/m 238 LED/m SMD2835 is a professional high-density solution for decorative and functional indoor lighting. With 14000 lumens total over its 5 metres and a consumption of 20W per metre, it provides uniform and powerful light without visible dots.
High density: 238 LEDs per metre
The high density of 238 LEDs per metre eliminates individual light spots, creating a continuous and homogeneous light line. Especially useful in aluminium profiles with opal diffuser, where a clean neon-like emission is desired.
SMD2835 technology
The SMD2835 chip offers an optimal balance between light efficiency, light quality and thermal dissipation. Its performance is far superior to traditional LEDs, ensuring natural colours and long service life.
24V voltage for long runs
Operating at 24V significantly reduces voltage drop along the reel, keeping luminosity uniform even on long runs. More efficient and professional than 12V models for extensive installations.
Recommended applications

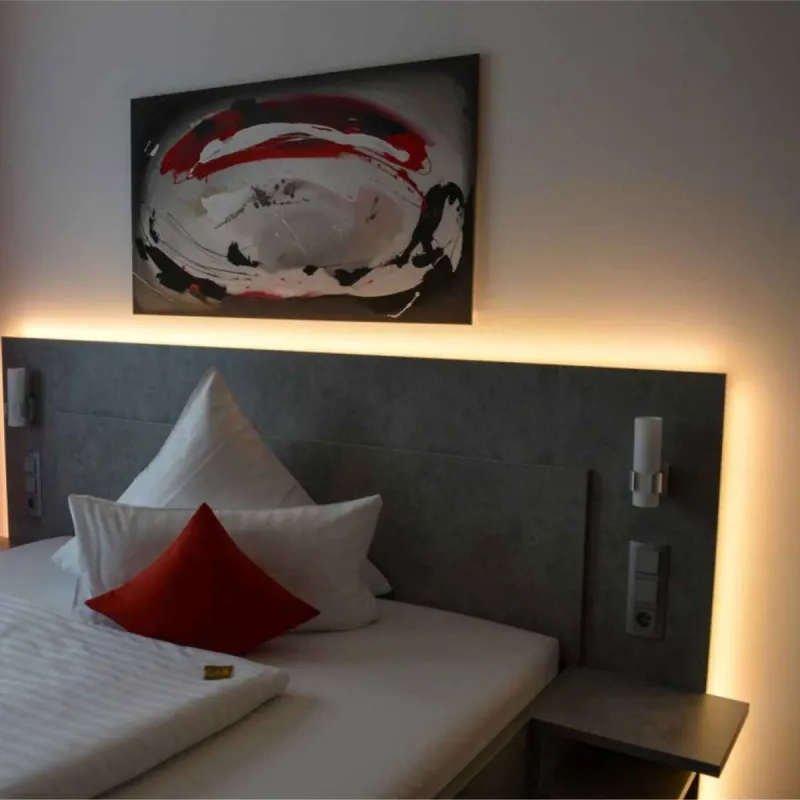

Ideal for lighting kitchen cabinets, display cases, shop windows, bookshelves, hospitality venues, hotels, commercial premises and any decorative project requiring uniform high-quality light emission.
Installation recommendations
Requires a suitable 24V power supply (minimum 100W for 5m). Installation on an aluminium profile is recommended for proper thermal dissipation and greater durability.
| REFERENCE | Sp238d20w |
|---|---|
| Nominal power | 20w |
| Nominal voltage | 24V DC |
| Light temperature | 2200K - 2700K - 4000K - 6000K |
| CRI - Index Chromatic Reproduction | 80 |
| Construction material | PCB |
| Energy class | A + |
| Light-lm | 1M: 2800lm - 5m: 14000lm |
| Type of LED | 238 LED / M - SMD2835 |
| Angle opening (º) | 120º |
| Efficacy LED diode (LM / W) | 140 LM / W |
| Luminous efficacy (LM / W) | 120 lm / w |
| Certificates | CE - RoHS |
| Estimated Life LED Diode (H) | 100.000 |
| Measures (mm) | 5m x 10mm |
| Work frequency (Hz) | 50 / 60hz |
| Temperature range (ºC) | -20 ° C ~ + 55 ° C |
| Lit cycles | 100.000 |
| Additional information | Cut: 2.5cm |
| Guarantee years | 3 |
