LED Panel 60x60 40W Slim Frame Dimmable 1-10V PHILIPS XITANIUM
€33.17
Taxes not included
Color temperature
Neutral white - 4000K
Out-of-Stock
La cantidad mínima en el pedido de compra para el producto es 10.
Are you a professional? Sign up and enjoy special conditions. Learn more
DOCUMENTS
- Guaranteed Lowest Price
- Free shipping on orders over €299
- 100% Secure Payment Methods
- Up to 5 years warranty

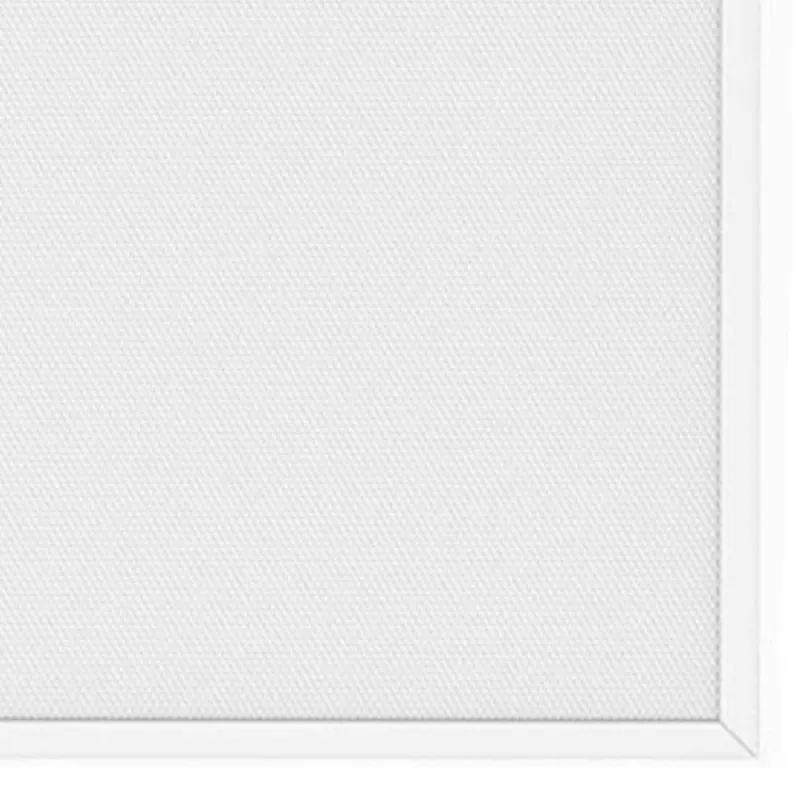

The 60x60 40W 1-10V Philips Panel is a professional 595×595 mm LED panel with an ultra-thin Slim Frame and 1-10V dimming via a Philips Xitanium driver, ideal for offices and professional spaces seeking a premium finish and light-intensity control.
General information about 60x60 40W 1-10V Philips Panel
With 40W of power, its ultra-thin Slim Frame sits flush with the false ceiling: the frame virtually disappears, increases the useful lit surface and provides a clean, modern finish.
It features a Philips Xitanium driver with 1-10V dimming, a benchmark for reliability, allowing integration with lighting management systems, presence sensors and daylight harvesting.
Use and application of 60x60 40W 1-10V Philips Panel
It is ideal for offices, meeting rooms, shopping centres, clinics, hospitals, hotels and receptions requiring uniform, dimmable, premium-looking lighting.
Its standard 595×595 mm format is compatible with Armstrong-type modular false ceilings, in new builds and refurbishments.
Key benefits of 60x60 40W 1-10V Philips Panel
- 40W with 1-10V dimming.
- Philips Xitanium driver, high reliability.
- Ultra-thin Slim Frame flush with the ceiling.
- Standard 595×595 mm Armstrong format.
- Integrable with sensors and lighting management.
- Cuts consumption by matching output to real use.
Featured specifications of 60x60 40W 1-10V Philips Panel
Power: 40W; Dimensions: 595×595 mm; Frame: ultra-thin Slim Frame; Driver: Philips Xitanium; Dimming: 1-10V; Installation: Armstrong-type modular false ceiling.
Installation and maintenance of 60x60 40W 1-10V Philips Panel
Place the panel in the modular false-ceiling opening and connect the Philips Xitanium driver and the 1-10V dimming line in line with electrical regulations. Always switch off the power before any work.
It needs no maintenance beyond an occasional clean. Specialised LED lighting distribution in Spain with professional warranty. Estimated delivery in 24h subject to stock availability. Check price and availability here.
Frequently asked questions about 60x60 40W 1-10V Philips Panel
What dimming does it use? — 1-10V, with a Philips Xitanium driver.
What power does it have? — 40W.
What size is it? — 595×595 mm, Armstrong type.
Why the Slim Frame? — Premium finish with almost no visible frame.
Does it cut consumption? — Yes, by matching output to real use.
| REFERENCE | 60x60reg1-10v |
|---|---|
| Nominal power | 40w |
| Nominal voltage | 220-265v |
| Light temperature | 4000k-6000k |
| CRI - Index Chromatic Reproduction | 80 |
| Construction material | Steel + PC |
| Energy class | AND |
| Light-lm | 4.800Lm |
| Type of LED | SMD 2835 |
| Angle opening (º) | 120 ° |
| Efficacy LED diode (LM / W) | 140 LM / W |
| Luminous efficacy (LM / W) | 120 lm / w |
| Dimable | 1-10v |
| Certificates | CE - RoHS |
| Ip | Ip20 |
| Estimated Life LED Diode (H) | 35.000 |
| Measures (mm) | 595x595mmh30mm |
| Power factor (PF) | 0.99 |
| Work frequency (Hz) | 50 / 60hz |
| Temperature range (ºC) | -10 ° C ~ + 40 ° C |
| Lit cycles | 100.000 |
| Start time (s) | 0,2s |
| Impact protection (IK) | Ik05 |
| Driver included | Philips Xitanium |
| Guarantee years | 5 |
