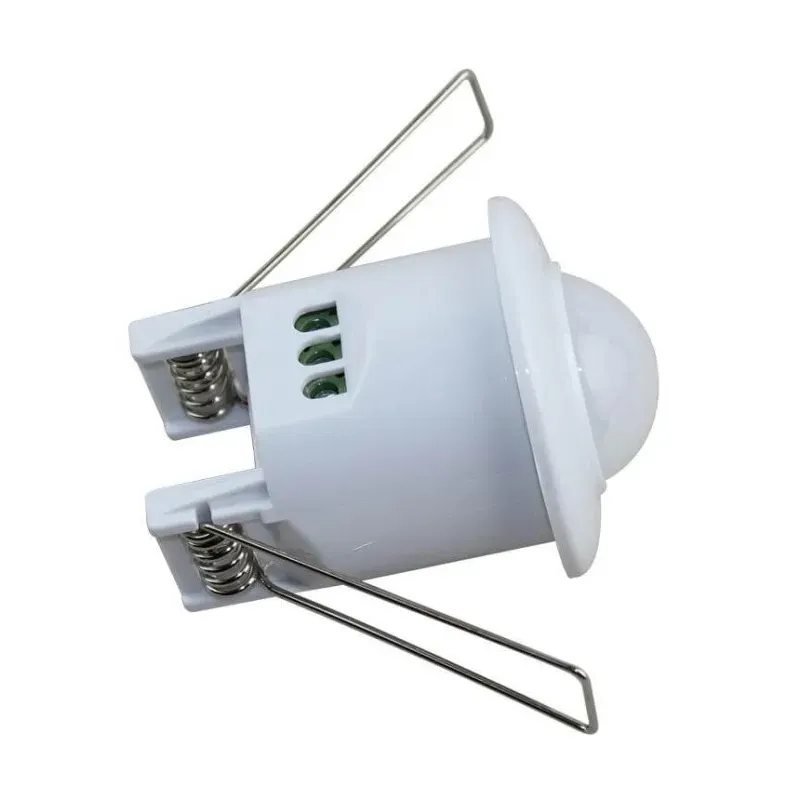

Infrared Motion Detector Recessed 360° 6m

Recessed infrared motion detector at 220-240V AC with 360° coverage and a 6 m range, to automate lighting in corridors, stairs, bathrooms and walkways. Its small size fits into a false ceiling for a clean finish.

General information about 360° Recessed Infrared Motion Detector

It features a PIR sensor that detects the infrared emissions of moving people or animals and switches the light on instantly, turning it off automatically when it no longer detects presence to eliminate unnecessary consumption.

It lets you adjust the on-time (5 seconds to 7 minutes), the light sensitivity (twilight sensor from 3 to 2000 lux) and the detection range. It handles loads up to 800W incandescent or 400W LED, with a 30,000-hour lifespan.

Use and application of 360° Recessed Infrared Motion Detector

Its 360° coverage and detection field of about 6 m diameter make it ideal for automatic switching in corridors, stairs, landings, bathrooms and hallways.

The twilight sensor prevents switching on during the day, optimising savings. It is ideal for homes, offices, hotels, communal staircases and retail areas with a discreet recessed installation.

Key benefits of 360° Recessed Infrared Motion Detector

• Automatic switching with 360° coverage and 6 m range.
• PIR sensor with automatic off to save energy.
• Adjustable on-time, lux sensitivity and detection range.
• Twilight sensor: prevents daytime switching.
• Handles up to 800W incandescent / 400W LED.
• Discreet recessed mounting (Φ40 mm cut-out).

Key specifications of 360° Recessed Infrared Motion Detector

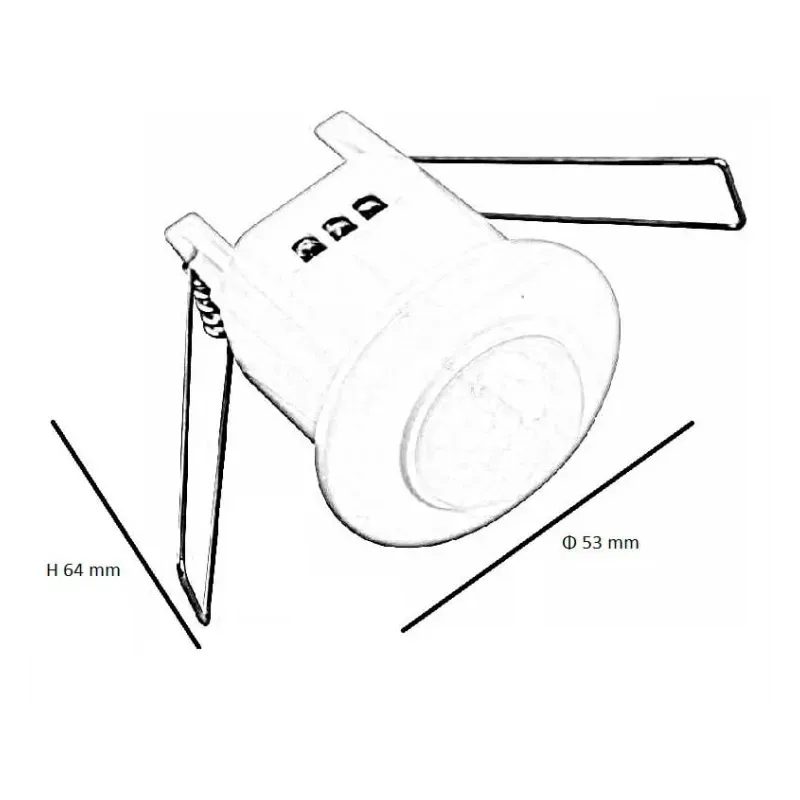

Technology: infrared PIR sensor; Voltage: 220-240V AC; Coverage: 360°; Range: 6 m; Maximum load: 800W incandescent / 400W LED; Timer: 5 s – 7 min; Sensitivity: 3-2000 lux (adjustable); Protection: IP20; Lifespan: 30,000 h; Temperature range: -20°C ~ +40°C; Ceiling cut-out: Φ40 mm; Dimensions: Φ53 × H64 mm; Certifications: CE, RoHS; Warranty: 2 years.

Installation and maintenance of 360° Recessed Infrared Motion Detector

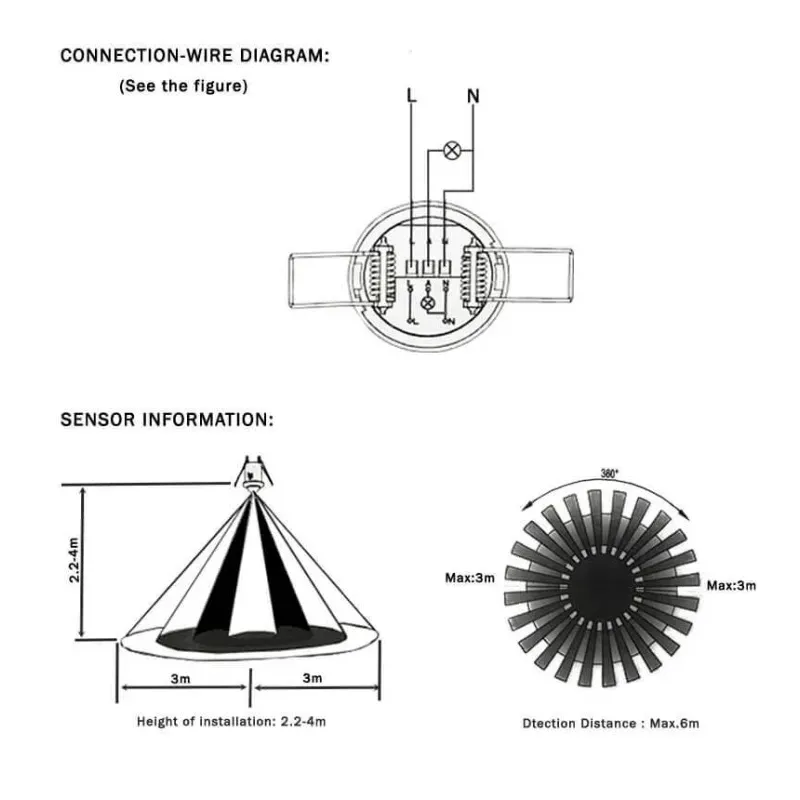

It is recessed into a false ceiling with a Φ40 mm cut-out and wired to the 220-240V AC mains in series with the luminaire. Always disconnect the power before installation and set time, lux and range with the potentiometers.

For maintenance, keep the sensor lens clean with a dry cloth. Specialised LED lighting distribution in Spain: buy the 360° recessed infrared motion detector with professional warranty and CE, RoHS certification. Estimated delivery in 24h subject to stock availability. Check price and availability here.

Frequently asked questions about 360° Recessed Infrared Motion Detector

Which technology does it use? — An infrared PIR sensor.

What is its coverage and range? — 360° and about 6 m diameter.

Can the on-time be adjusted? — Yes, from 5 seconds to 7 minutes.

What load does it handle? — Up to 800W incandescent or 400W LED.

Does it avoid switching on during the day? — Yes, via an adjustable twilight sensor (3-2000 lux).
