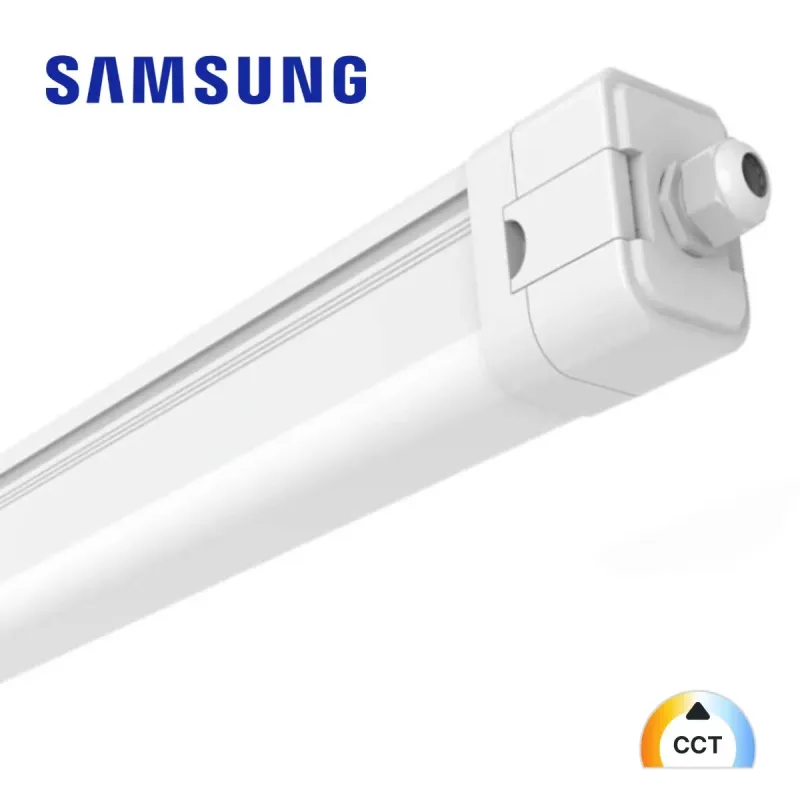

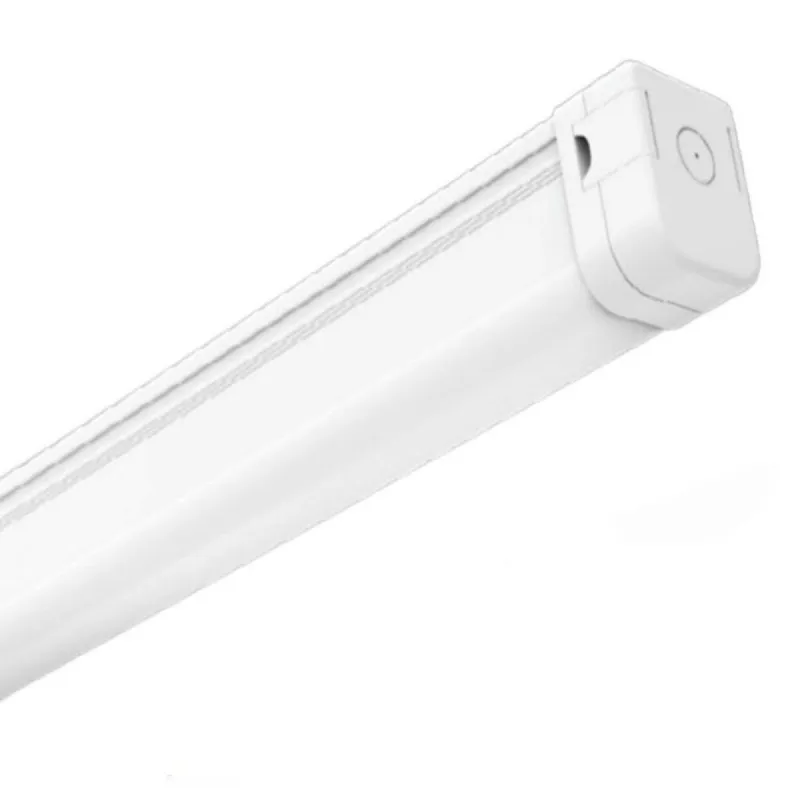

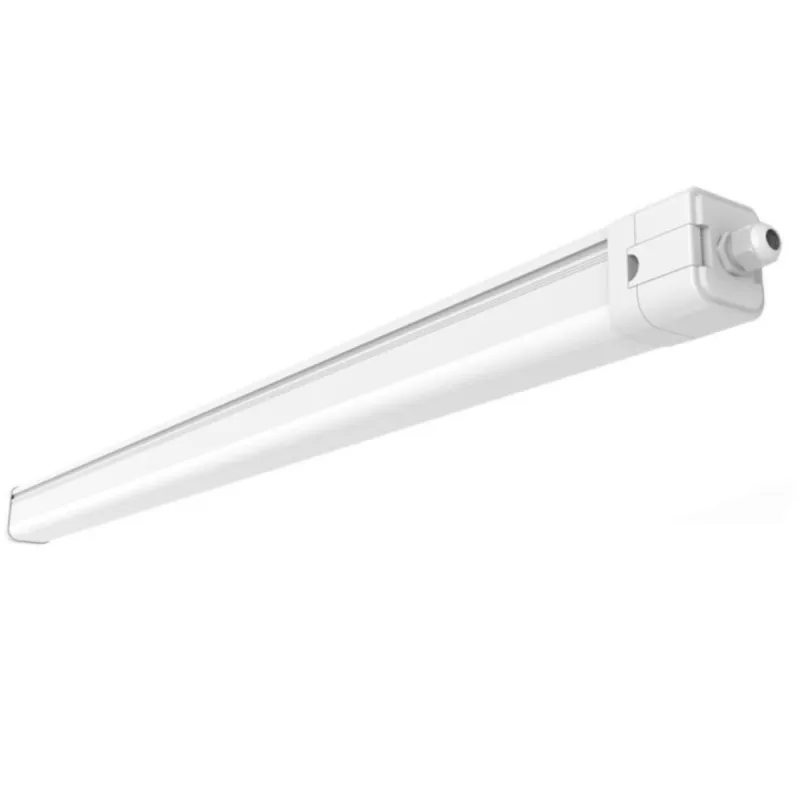

The 20W SAMSUNG Weatherproof Batten 60cm is a 60 cm weatherproof linear luminaire with a SAMSUNG chip, selectable power and colour temperature and IP65 protection, ideal for garages, storerooms, workshops and damp areas.
General information about 20W SAMSUNG Weatherproof Batten 60cm
Its power is selectable between 20W and 10W, delivering up to 2400 lumens with a 120 lm/W efficacy, an SMD2835 SAMSUNG chip and a CRI of 80. It offers 3 colour temperatures (3CCT): 3000K, 4000K and 5700K, with a 120° beam.
Its ABS+PCB body offers IP65 protection and IK08 impact resistance, with a 0.98 power factor and dimensions of 580×61×74 mm.
Use and application of 20W SAMSUNG Weatherproof Batten 60cm
It is ideal for garages, storerooms, workshops, warehouses, basements and damp or dusty areas requiring a weatherproof, compact luminaire.

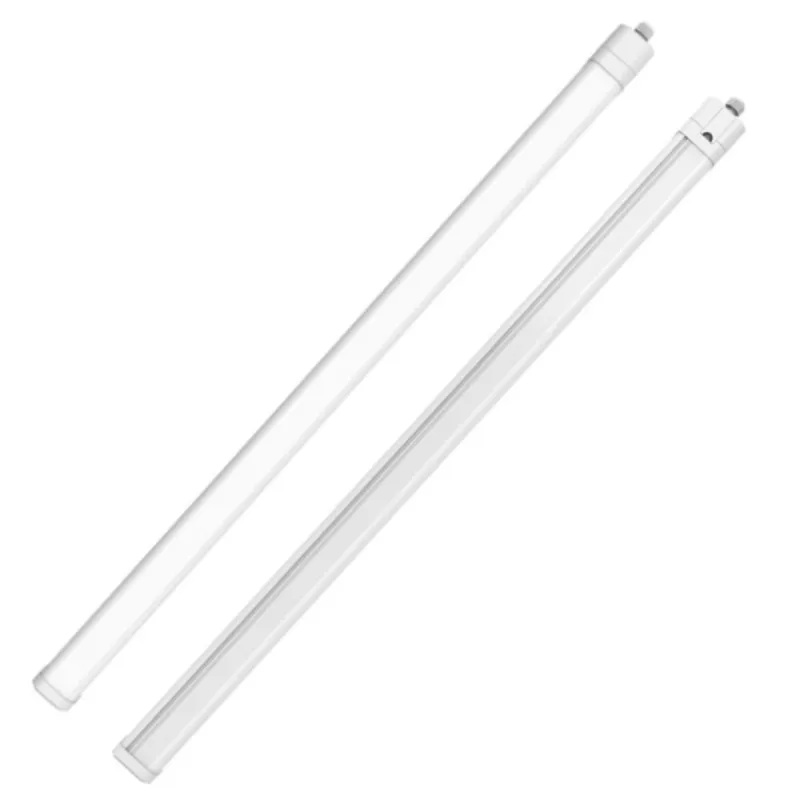

It surface-mounts and can be aligned in rows to cover longer runs.
Key benefits of 20W SAMSUNG Weatherproof Batten 60cm
- Selectable power 20W / 10W.
- Up to 2400 lm (120 lm/W) with a SAMSUNG chip.
- 3CCT: 3000K / 4000K / 5700K.
- IP65 and IK08 protection.
- 60 cm, 0.98 PF, ABS+PCB body.
- 25,000-hour service life and a 3-year warranty.
Featured specifications of 20W SAMSUNG Weatherproof Batten 60cm
Power: 20W / 10W selectable; Luminous flux: up to 2400 lm; Efficacy: 120 lm/W; Chip: SMD2835 SAMSUNG; CRI: 80; Colour temperature: 3000K / 4000K / 5700K (3CCT); Angle: 120°; Protection: IP65; Impact resistance: IK08; Power factor: 0.98; Material: ABS+PCB; Service life: 25,000 h; Dimensions: 580×61×74 mm; Certifications: CE, RoHS, EMC and UL; Warranty: 3 years.
Installation and maintenance of 20W SAMSUNG Weatherproof Batten 60cm
Fix the batten on a surface, select the power and tone and connect to the mains in line with electrical regulations; secure the weatherproof closure. Always switch off the power before any work.
It needs no maintenance beyond an occasional clean. Specialised LED lighting distribution in Spain, with CE and RoHS certification and a professional 3-year warranty. Estimated delivery in 24h subject to stock availability. Check price and availability here.
Frequently asked questions about 20W SAMSUNG Weatherproof Batten 60cm
How much light does it give? — Up to 2400 lm (120 lm/W).
Can I choose the power? — Yes, 20W or 10W.
Is it weatherproof? — Yes, IP65 and IK08.
What tones are available? — 3000K, 4000K and 5700K.
What warranty does it carry? — 3 years.
| REFERENCE | Tp20w-CCT-91641 |
|---|---|
| Nominal power | 20w |
| Nominal voltage | 220-265v |
| Light temperature | 3000K - 4000K - 5700K |
| CRI - Index Chromatic Reproduction | 80 |
| Construction material | ABS + PCB |
| Energy class | A + |
| Light-lm | 2400 |
| Type of LED | SMD2835 SANSUMG |
| Angle opening (º) | 120º |
| Luminous efficacy (LM / W) | 120 lm / w |
| Certificates | CE - ROHS - EMC - UL |
| Ip | Ip65-outside |
| Estimated Life LED Diode (H) | 25000 |
| Measures (mm) | L: 580x61x74 |
| Power factor (PF) | 0.98 |
| Work frequency (Hz) | 50 / 60hz |
| Temperature range (ºC) | -20 ° C ~ + 55 ° C |
| Lit cycles | 100.000 |
| Start time (s) | 0,2s |
| Impact protection (IK) | Ik08 |
| Guarantee years | 3 |
