LED Spotlight Bulb GU10 6W 720lm 100° OSRAM Chip
€1.34
Round LED Downlight 18-24W Ø200mm 4CCT UGR17 OSRAM Chip
€12.12
Taxes not included
Are you a professional? Sign up and enjoy special conditions. Learn more
DOCUMENTS
- Guaranteed Lowest Price
- Free shipping on orders over €299
- 100% Secure Payment Methods
- Up to 5 years warranty

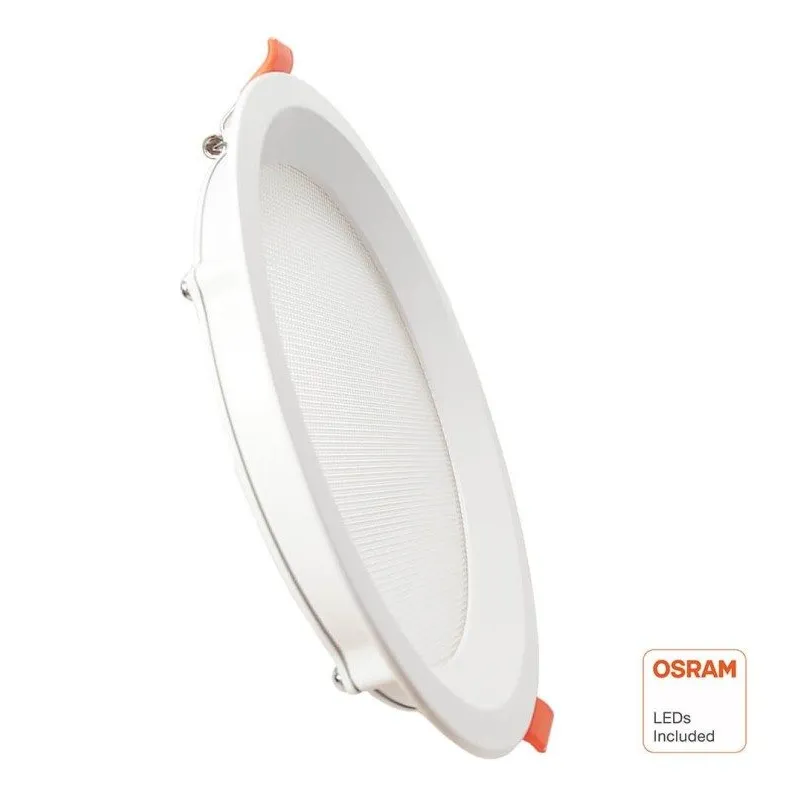

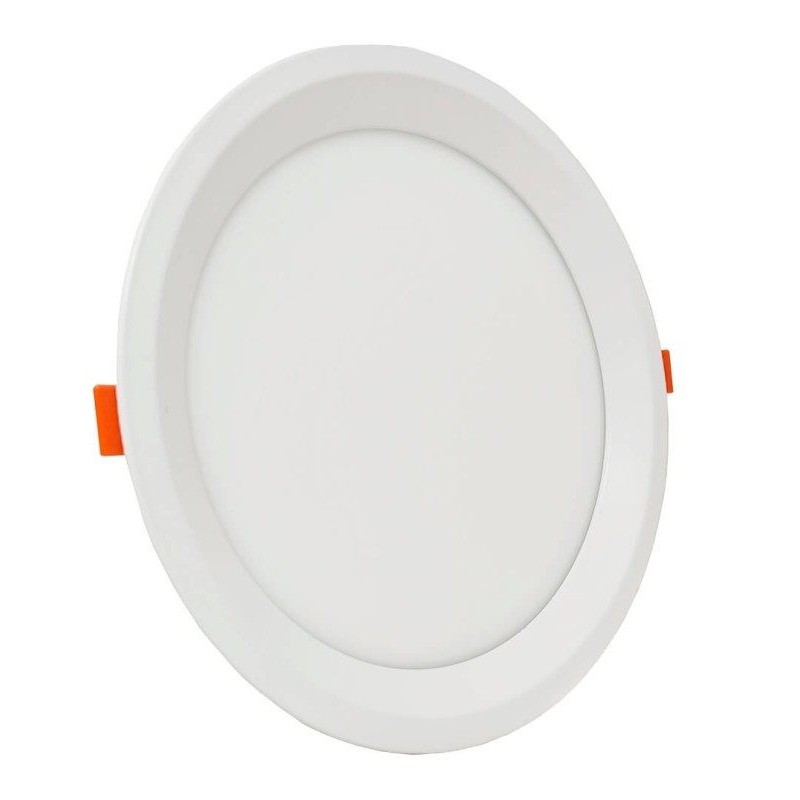

The 24W Circular OSRAM Downlight UGR17 is a recessed downlight with selectable power and colour temperature, an OSRAM chip and low UGR17 glare, ideal for comfortable general lighting in offices, shops and hospitality.
General information about 24W Circular OSRAM Downlight UGR17
Its power is selectable between 18W, 20W, 22W and 24W, delivering up to 3000 lumens with a 125 lm/W efficacy. It uses an SMD2835 OSRAM chip, a CRI of 85 and a UGR17 that reduces glare. The colour temperature is selectable between 2700K, 3000K, 4000K and 5700K, and it includes a driver.
Its 120° beam spreads light widely; it runs on 85-265V with IP20 protection.
Use and application of 24W Circular OSRAM Downlight UGR17
It is ideal for offices, shops, hotels, restaurants, clinics and receptions where visual comfort and power versatility are key.

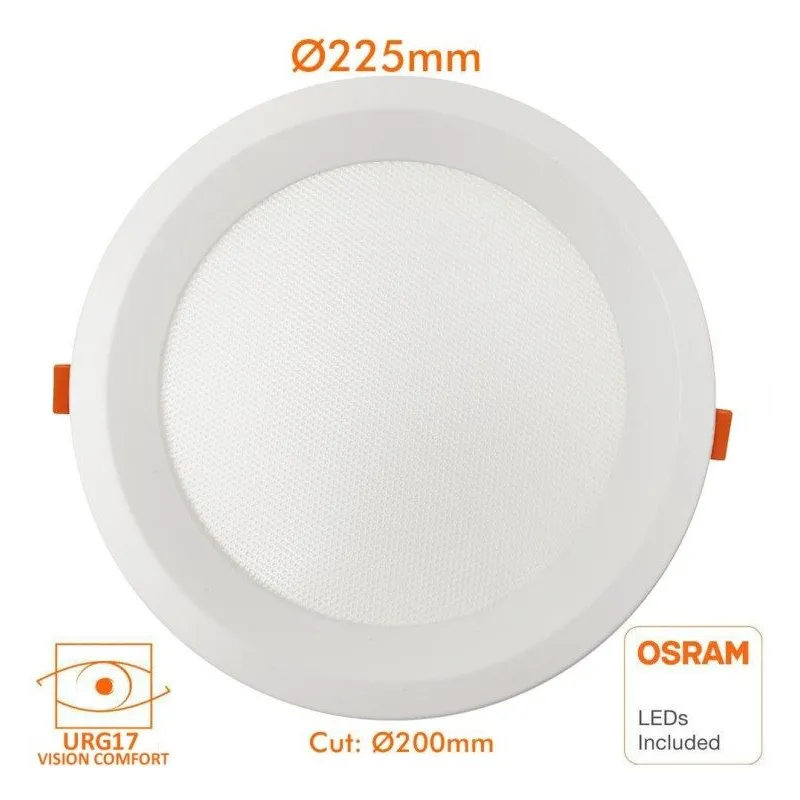

It recesses into the ceiling in a Ø200 mm hole; its outer diameter is Ø225 mm.
Key benefits of 24W Circular OSRAM Downlight UGR17
- Selectable power 18 / 20 / 22 / 24W.
- Up to 3000 lm with a 125 lm/W efficacy.
- SMD2835 OSRAM chip, CRI 85 and UGR17.
- Selectable CCT 2700K / 3000K / 4000K / 5700K.
- Driver included, 120° beam.
- 40,000-hour service life and a 3-year warranty.
Featured specifications of 24W Circular OSRAM Downlight UGR17
Power: 18 / 20 / 22 / 24W selectable; Luminous flux: up to 3000 lm; Efficacy: 125 lm/W; Chip: SMD2835 OSRAM; CRI: 85; UGR: 17; Colour temperature: 2700K / 3000K / 4000K / 5700K; Angle: 120°; Voltage: 85-265V; Protection: IP20; Driver: included; Service life: 40,000 h; Outer diameter: Ø225 mm; Cut-out: Ø200 mm; Certifications: CE and RoHS; Warranty: 3 years.
Installation and maintenance of 24W Circular OSRAM Downlight UGR17

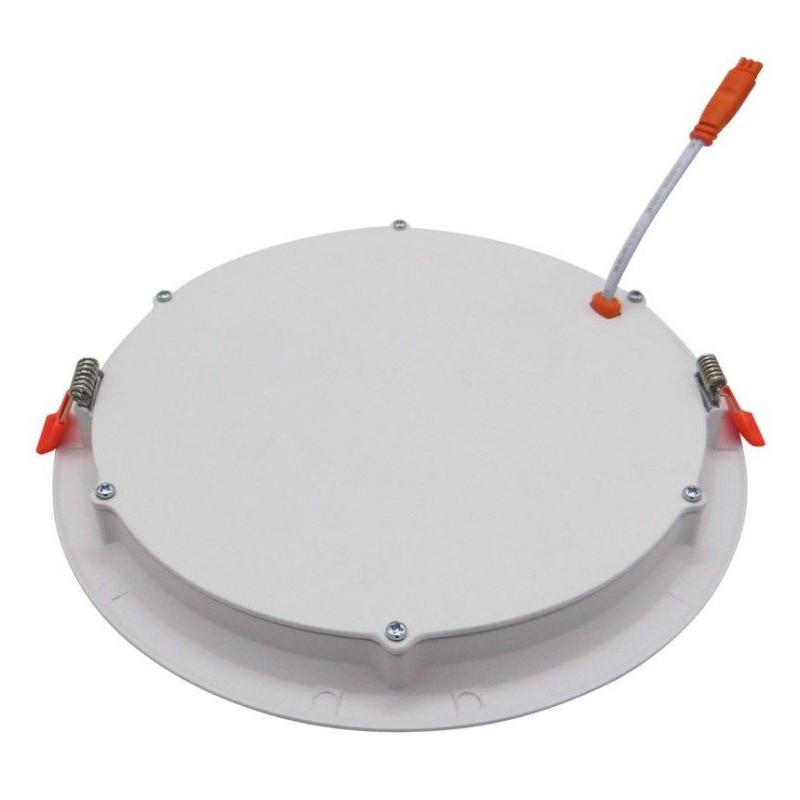

Make a Ø200 mm hole, select the power and tone, connect the driver in line with electrical regulations and fit the downlight with its clips. Always switch off the power before any work.
It needs no maintenance beyond an occasional clean. Specialised LED lighting distribution in Spain, with CE and RoHS certification and a professional 3-year warranty. Estimated delivery in 24h subject to stock availability. Check price and availability here.
Frequently asked questions about 24W Circular OSRAM Downlight UGR17
Can I choose the power? — Yes, between 18, 20, 22 and 24W.
How much light does it give? — Up to 3000 lm (125 lm/W).
What hole does it need? — A Ø200 mm cut-out (Ø225 mm outer).
What is UGR17? — A low glare level, for greater comfort.
What warranty does it carry? — 3 years.
| REFERENCE | 90844 |
|---|---|
| Nominal power | 18W - 20W - 22W - 24W |
| Nominal voltage | 85-265v |
| Light temperature | 2700K - 3000K - 4000K - 5700K |
| CRI - Index Chromatic Reproduction | 85 |
| Construction material | Aluminum + pc |
| Energy class | A + |
| Light-lm | 3000 |
| Type of LED | SMD 2835 Osram Chip |
| Angle opening (º) | 120 ° |
| Efficacy LED diode (LM / W) | 140 LM / W |
| Luminous efficacy (LM / W) | 125 LM / W |
| Certificates | CE - RoHS |
| Ip | Ip20 |
| Estimated Life LED Diode (H) | 40.000 |
| Measures (mm) | Ø225mm * H20mm |
| Work frequency (Hz) | 50 / 60hz |
| Temperature range (ºC) | -20 ° C ~ + 55 ° C |
| Lit cycles | 100.000 |
| Start time (s) | 0,2s |
| Ceiling cut (mm) | Ø 200mm * H40mm |
| Dyllumbramine Index (UGR) | 17 |
| Driver included | IF |
| Guarantee years | 3 |
