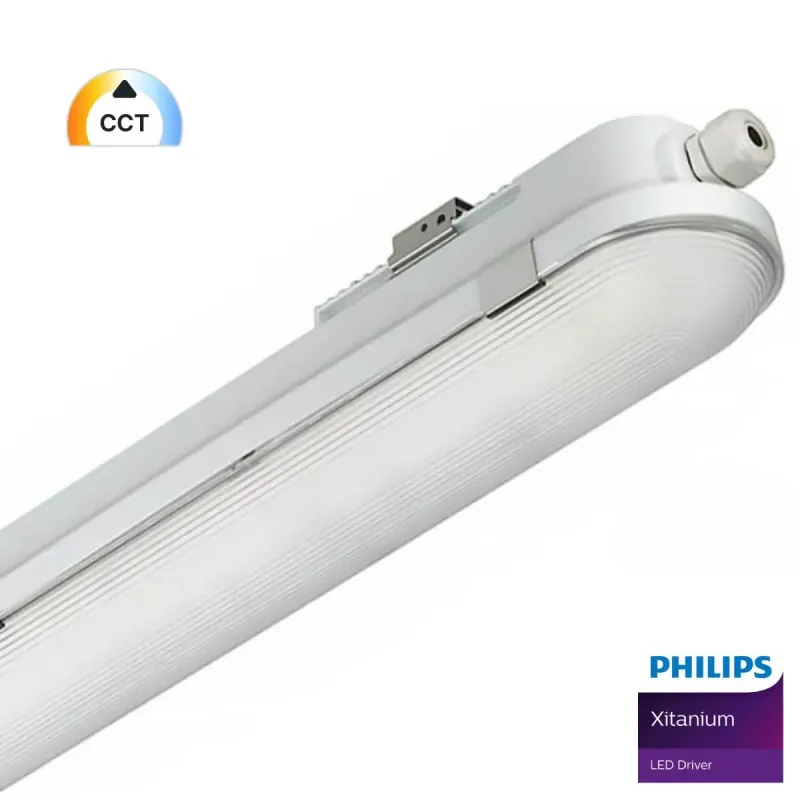

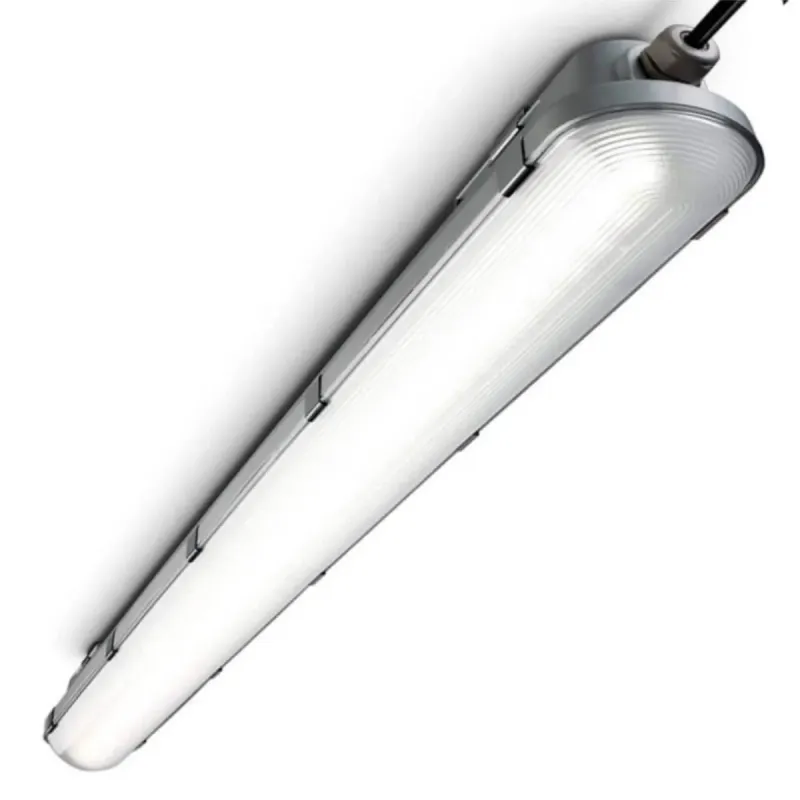

Waterproof LED Batten COREPLUS EVO 120cm 25-40W 3CCT IP66 IK10 PHILIPS

The COREPLUS EVO 120cm Waterproof Batten is a professional solution for demanding environments needing powerful, even, resistant lighting. Its ABS and polycarbonate construction with a perimeter gasket ensures full tightness against dust, moisture and impacts.

General information about COREPLUS EVO 120cm Waterproof Batten

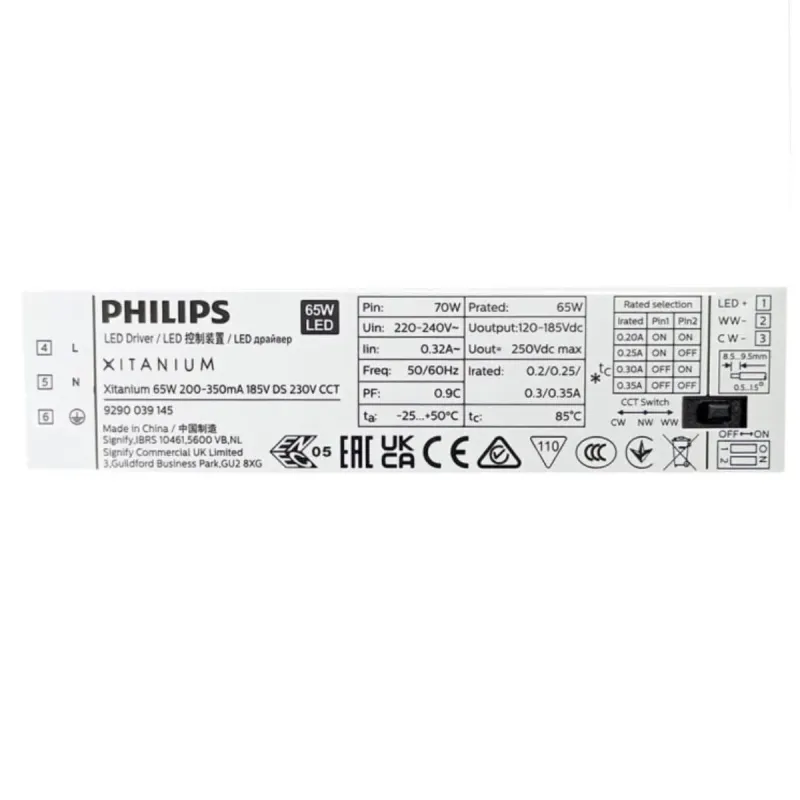

It fits SMD2835 diodes with 140 lm/W efficiency and a power factor above 0.9. Its Philips Xitanium driver ensures stable operation and long life, maintaining light quality and reducing consumption.

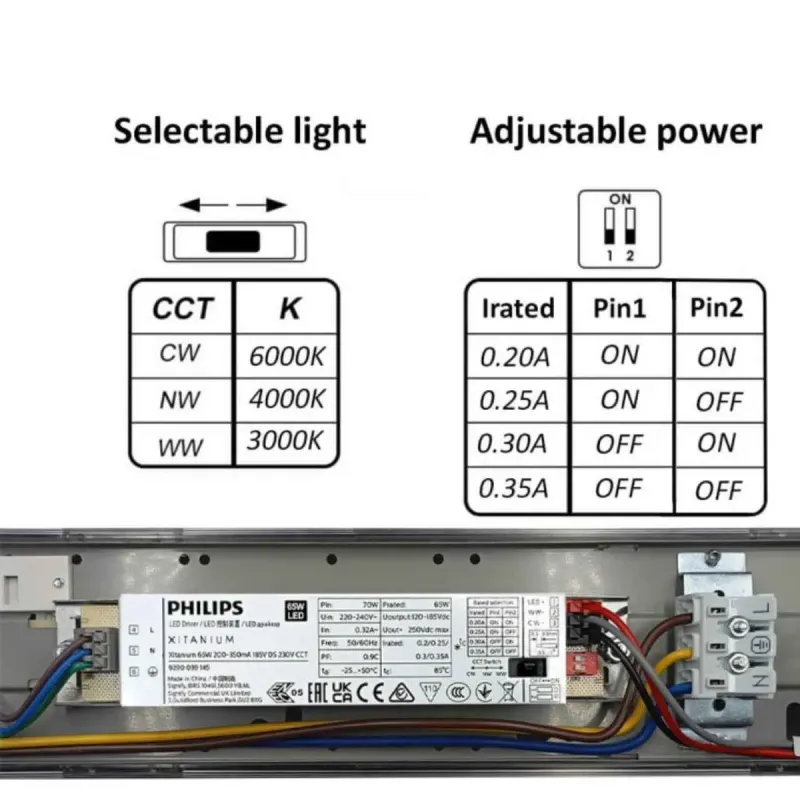

Thanks to the multi-selectable system it sets the power between 25W, 30W, 35W and 40W and the colour temperature at 3000K, 4000K or 6000K, adapting one luminaire to different projects.

Use and application of COREPLUS EVO 120cm Waterproof Batten

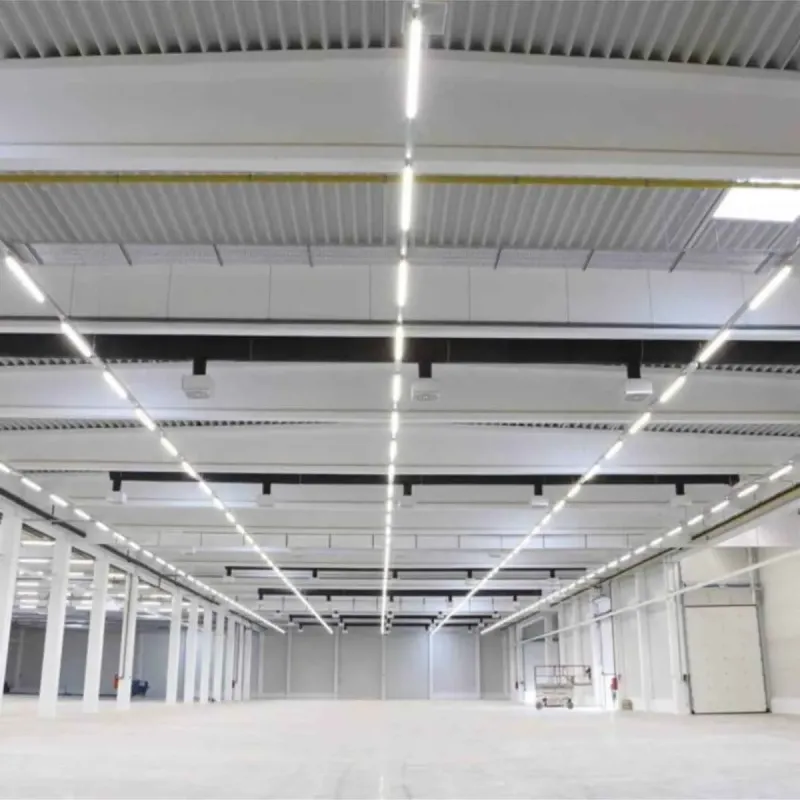

It is ideal for garages, industrial halls, car parks, workshops, warehouses and areas with water present.

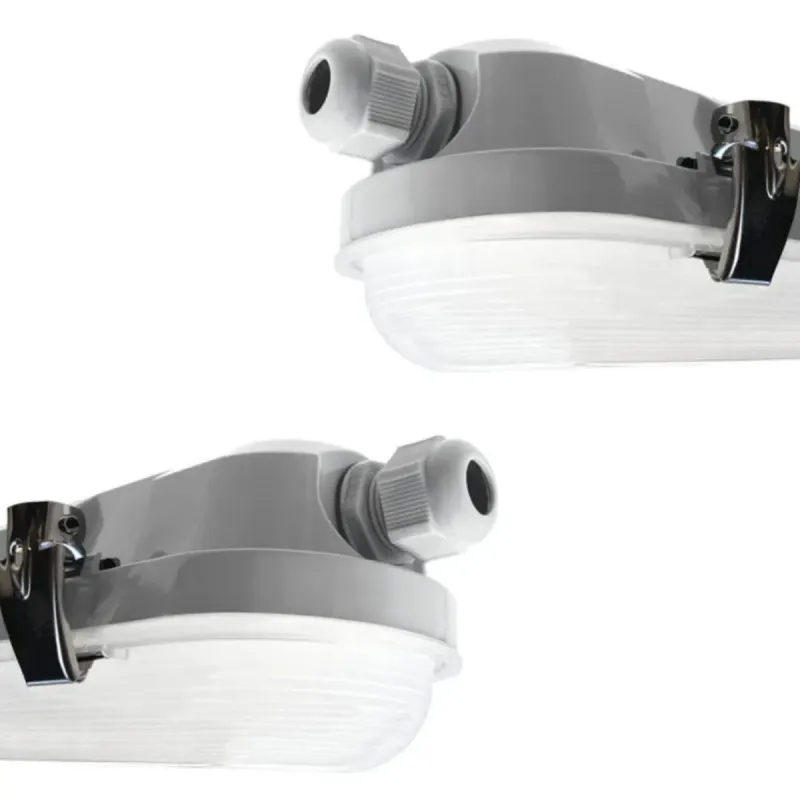

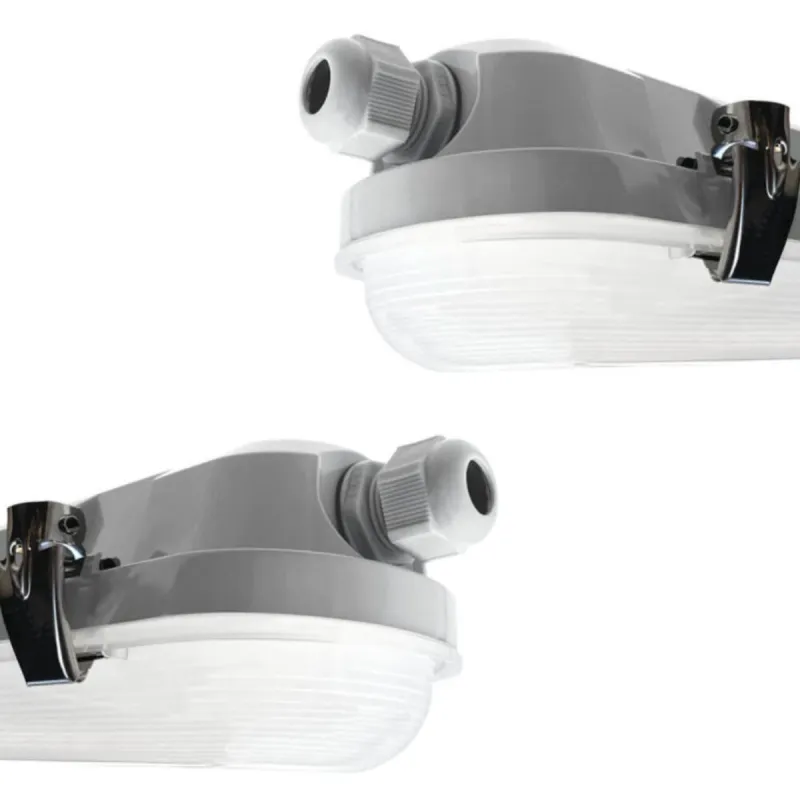

With IP66 and IK10 protection it withstands harsh environments and impacts. The through-wiring at both ends eases series installations.

Key benefits of COREPLUS EVO 120cm Waterproof Batten

• Multi-selectable power 25W / 30W / 35W / 40W.
• 3CCT: 3000K / 4000K / 6000K.
• SMD2835, 140 lm/W efficiency, PF above 0.9.
• Philips Xitanium driver.

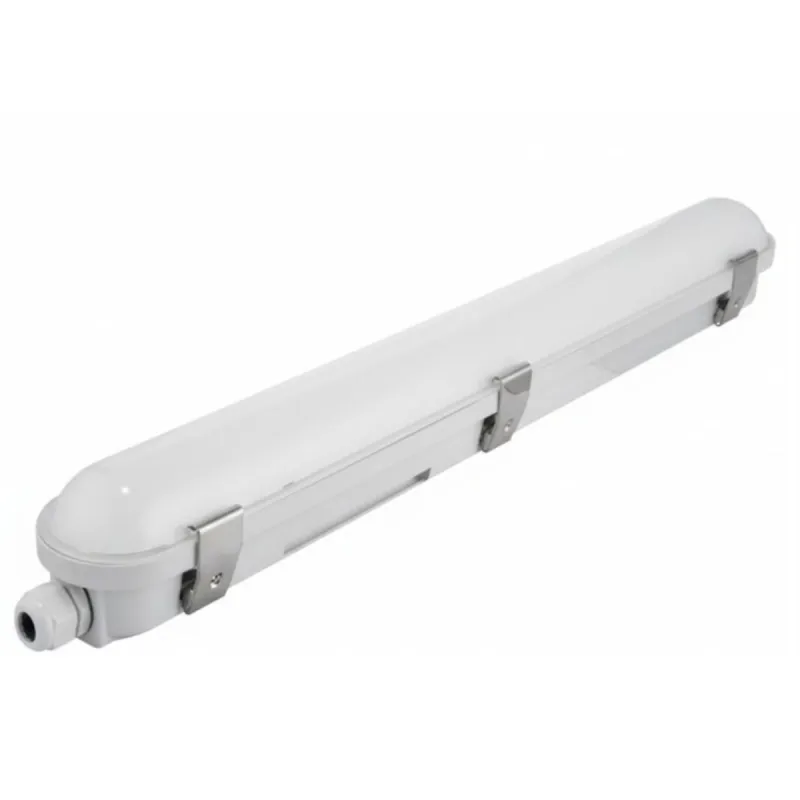

• IP66 and IK10, ABS and polycarbonate with perimeter gasket.

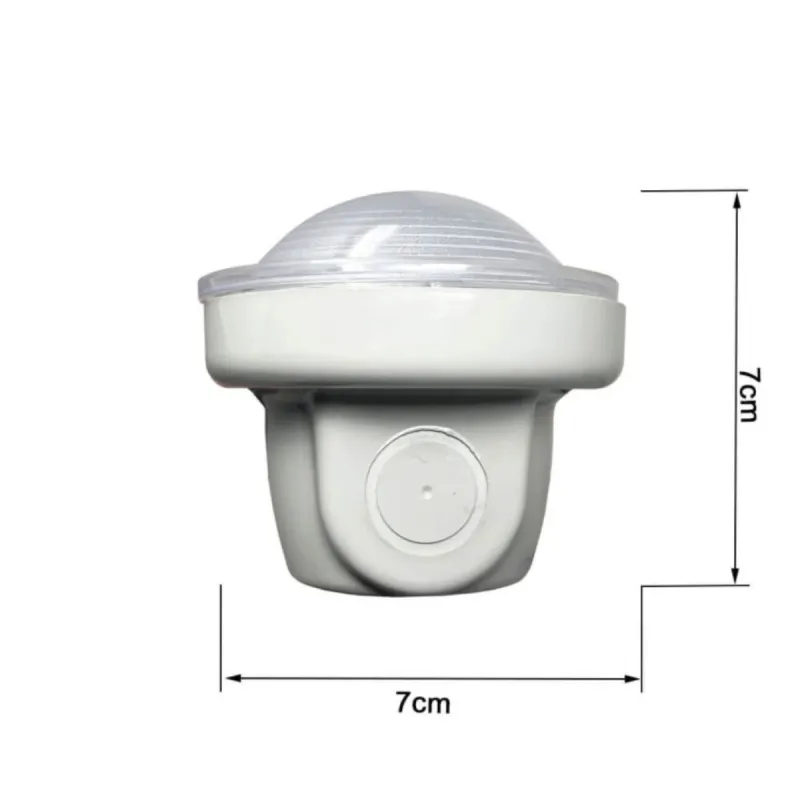

• Compatible with emergency kit and Plug & Play radar sensor.

Featured specifications of COREPLUS EVO 120cm Waterproof Batten

Length: 120 cm; Power: multi-selectable 25W / 30W / 35W / 40W; Colour temperature: 3000K / 4000K / 6000K; Chip: SMD2835; Efficacy: 140 lm/W; Power factor: above 0.9; Driver: Philips Xitanium; Protection: IP66 and IK10; Material: ABS and polycarbonate with perimeter gasket; Extras: compatible with emergency kit and Plug & Play radar sensor, through-wiring.

Installation and maintenance of COREPLUS EVO 120cm Waterproof Batten

Select the power and tone, fix the batten to the ceiling or wall using its brackets and connect it in line with electrical regulations; the through-wiring allows series installations. Always switch off the power before any work.

Maintenance is minimal thanks to the tightness and the Philips driver. Specialised LED lighting distribution in Spain with professional warranty. Estimated delivery in 24h subject to stock availability. Check price and availability here.

Frequently asked questions about COREPLUS EVO 120cm Waterproof Batten

What powers does it have? — Multi-selectable 25W, 30W, 35W and 40W.

What protection does it offer? — IP66 and IK10.

Which driver does it use? — Philips Xitanium.

Does it take emergency or sensor? — Yes, emergency kit and Plug & Play radar sensor.

Can it be installed in series? — Yes, through-wiring at both ends.
